Quick Details
-
Brand Name:
-
XUGONG
-
Voltage:
-
380V
-
Power:
-
4KW
-
Dimension(L*W*H):
-
1250*600*1100mm
-
Weight:
-
450
-
Product name:
-
rebar tapered screw threading rolling machine
-
Working Length:
-
90mm
-
Thread Pitch:
-
Standard
-
Working Distance:
-
150mm
-
Color:
-
We can change
-
Usage:
-
Making silk for rebar connection by coupler
-
Thread Angle:
-
60/75degree
-
Free Design Service:
-
Yes
-
MOQ:
-
1 Set
Quick Details
-
Place of Origin:
-
Henan, China
-
Application:
-
Rebar
-
Production Capacity:
-
100%
-
Brand Name:
-
XUGONG
-
Voltage:
-
380V
-
Power:
-
4KW
-
Dimension(L*W*H):
-
1250*600*1100mm
-
Weight:
-
450
-
Product name:
-
rebar tapered screw threading rolling machine
-
Working Length:
-
90mm
-
Thread Pitch:
-
Standard
-
Working Distance:
-
150mm
-
Color:
-
We can change
-
Usage:
-
Making silk for rebar connection by coupler
-
Thread Angle:
-
60/75degree
-
Free Design Service:
-
Yes
-
MOQ:
-
1 Set

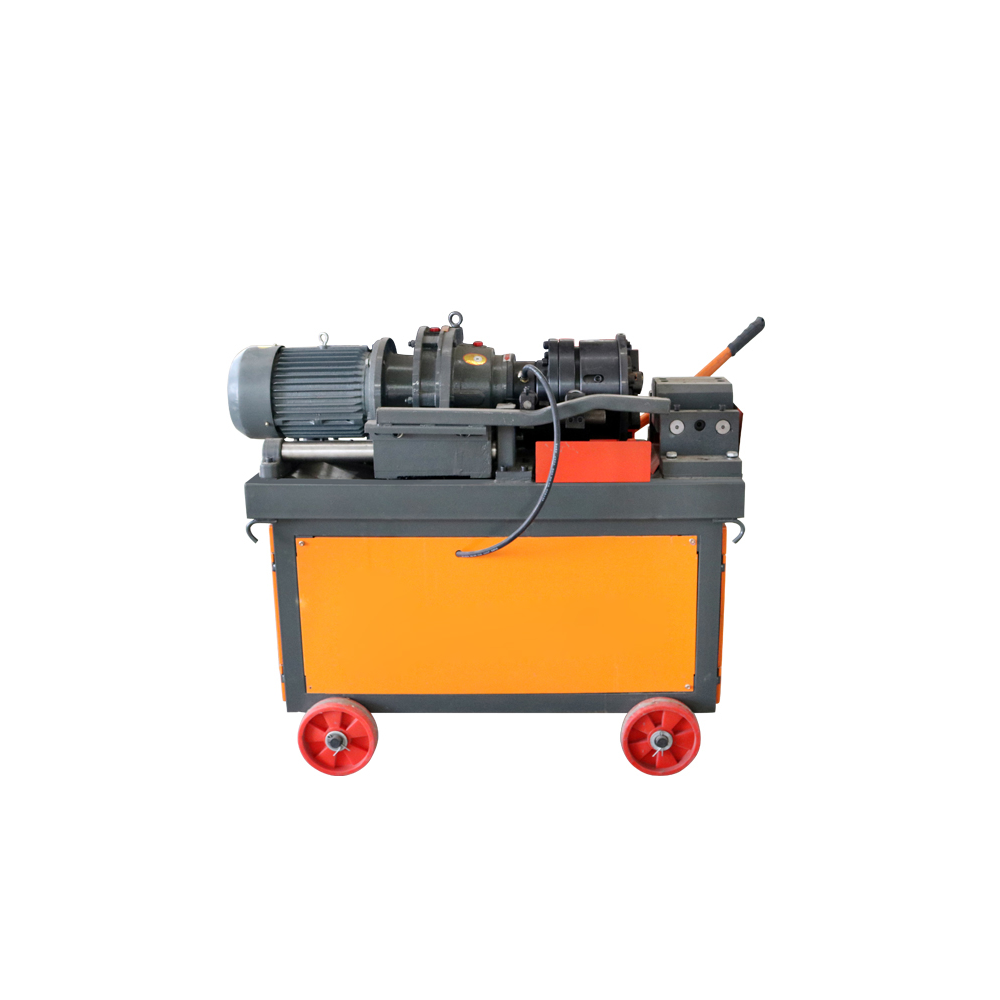

bolt rebar tapered screw threading rolling machine
Product description
bolt rebar tapered screw threading rolling machine can be applied to process parallel thread on rebar end in reinforced concrete construction. It can process HRB335,HRB400 Hot Rolled Ribbed Reinforced Bar with diameter 12-40mm.
Main Features
1.Simple operation, compact structure, low failure rate.
2.Process different diameter rebar by adjusting freely cutting blade in range Φ 16 —Φ 40mm.
3.It can change machine head separately when process rebar diameterφ 12 —φ 14mm.
4.One machine head processes both right-handed and left-handed thread, thread shape is smooth and full.
5.Adopt screw pitch angle mechanism, easier to operate, max thread length is 200mm/300mm.
6.High processing speed and production efficiency, energy saving and environmental protection.
Rebar thread rolling machine technical parameters techincal parameters
|
Model style |
HGS-40D |
|
The processing range |
16-40mm |
|
Roller parameters |
60 ° x 3;60 ° x 2.5;75 ° x 3;75 ° x 2.5 |
|
Reducer |
BW3-43 |
|
Weight(kg) |
480 |
|
Work schedule(mm) |
80 |
|
Power(kw) |
4/5.5 |
|
Voltage(v) |
380 |
|
Dimension(L*W*H) |
1250*600*1100mm |
|
Working distant(mm) |
150/200 |
|
Working diameter(mm) |
Φ 12- Φ 40 |
|
Working length( mm) |
90 |
Pre-Sales Service* Inquiry and consulting support. * Sample testing support. * View our Factory. |
After-Sales Service* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas. |
Safety wooden case or steel frame or according to customers' requirement for New Generation CNC XGWJ-12 Wire Bending Machine / Stirrup Bender.
