Quick Details
-
Brand Name:
-
POECAM
-
Model Number:
-
PL-GS3008DR-E1
-
Place of Origin:
-
Guangdong, China
-
chip:
-
Realtek 8370N
-
Switching capacity:
-
16G
-
LED Indicators:
-
100Mbps Link/Act
-
power:
-
5-12V/1A 50-60Hz
-
Storage humidity:
-
5%~90% non-condensing
-
Operating Humidity:
-
10%~90% non-condensing
-
Storage Temperature:
-
-40°C~70°C(-40°F~158°F)
-
Operating Temperature:
-
0°C~40°C (32°F~104°F)
-
Warranty:
-
1 year
-
Support OEM/ODM:
-
yes
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
16g
-
Brand Name:
-
POECAM
-
Model Number:
-
PL-GS3008DR-E1
-
Place of Origin:
-
Guangdong, China
-
chip:
-
Realtek 8370N
-
Switching capacity:
-
16G
-
LED Indicators:
-
100Mbps Link/Act
-
power:
-
5-12V/1A 50-60Hz
-
Storage humidity:
-
5%~90% non-condensing
-
Operating Humidity:
-
10%~90% non-condensing
-
Storage Temperature:
-
-40°C~70°C(-40°F~158°F)
-
Operating Temperature:
-
0°C~40°C (32°F~104°F)
-
Warranty:
-
1 year
-
Support OEM/ODM:
-
yes
1,Support Ethernet standards
2,plug and play of Ethernet switches.
3,OEM multimedia cabling box products
Introduction

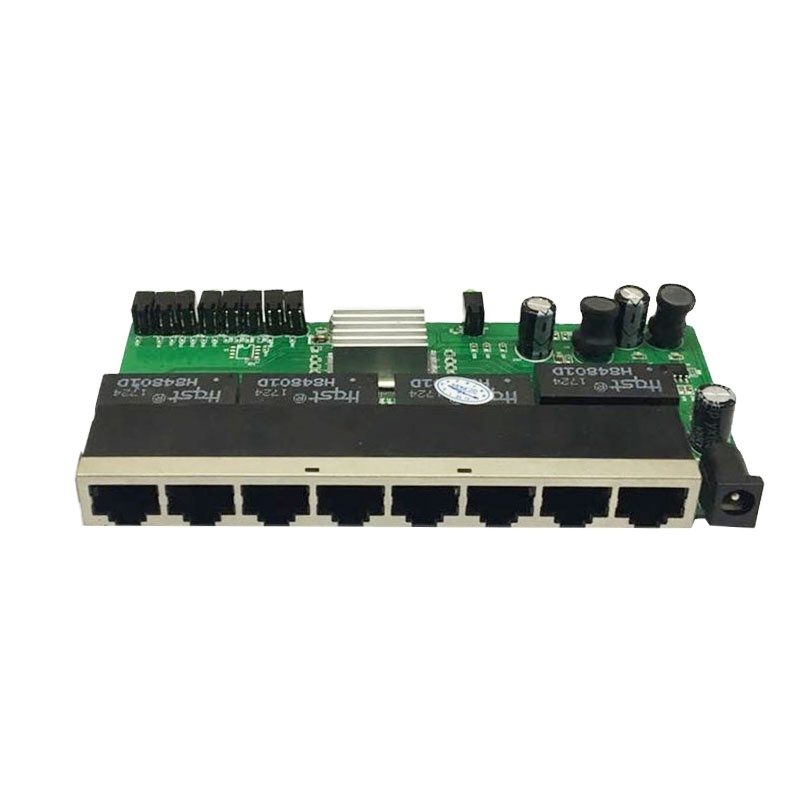

This is a 8 port 10/100/1000M Fast Ethernet switch provides 8 Auto-Negotiation RJ45 ports. All ports support Auto MDI / MDIX function and each port can be used as general ports or Uplink port, is a simple configuration, plug and play of Ethernet switches. is a specifically designed for the home network cabling, and can provide for multiple home computers to share information, is cost-effective network product, widely used home,hotel,commercial and other multimedia cabling box, and the network data Transmission, cabling distance extend and other.
Features
1,Complies with IEEE802.3, IEEE802.3u standards
2,8 10/100/1000Mbps Auto-Negotiation
3,Each ports supporting Auto-MDI/MDIX.
4,Supports storage-forward
5,Supports Full Duplex flow control mode and backpressure for half-duplex mode.
6,Supports MAC address auto-learning and auto-aging.
7,Each port provides independent bandwidth providing true non-blocking transmission
8,LED indicators for monitoring power, link, activity.
Application
widely used home,hotel,commercial and other multimedia cabling box, and the network data Transmission, cabling distance extend and other.
Specification
|
Standards |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet ANSI/IEEE Std 802.3 Nway Auto-Negotiation
|
|
protocol |
CSMA/CD |
|
Fibering and Transmitting speed |
Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port
|
|
Topology |
Star |
|
Network Medium |
10Base-T:Cat 3 or above Cat.3 UTP( Less than 100m) 100Base-TX:Cat 5 UTP( Less than 100m) 1000Base-T:Cat 6 or above Cat.5 UTP( Less than 100m) |
|
Number of Ports |
8pcs 10/100/1000M RJ45 ports |
|
UPLINK |
Any port (support Auto-MDI/MDIX function) |
|
Transmits Method |
Store-and-Forward |
|
Temperature |
Operating Temperature 0 ~40 Celsius (32 F~104 F) Storage Temperature -40 ~70 Celsius (-40 F~158 F) |
|
Humidity |
Operating Humidity 10 ~90 percent non-condensing Storage humidity 5 ~95 percent non-condensing |
|
Switch capacity |
10 G |
|
LED Indications
|
1* power LED(Power: Red) 8 * port LEDs(Link/Act: Green) |
|
Power Supply |
Input DC 5V2A or 12V1A |
