Quick Details
-
Brand Name:
-
CHYT
-
Model Number:
-
EL32R-4
-
Max. Current:
-
32A
-
Product name:
-
AC Waterproof Isolator Switch
-
Pole:
-
4P
-
Color:
-
yellow
-
Rated insulation voltage:
-
415V
-
Rated current:
-
32A
-
Material:
-
Plastic
-
Mechanical Life:
-
Not less than 10000 times
-
Type:
-
Manual
-
Function:
-
Isolation function
-
Certification:
-
TUV CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
415V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHYT
-
Model Number:
-
EL32R-4
-
Max. Current:
-
32A
-
Product name:
-
AC Waterproof Isolator Switch
-
Pole:
-
4P
-
Color:
-
yellow
-
Rated insulation voltage:
-
415V
-
Rated current:
-
32A
-
Material:
-
Plastic
-
Mechanical Life:
-
Not less than 10000 times
-
Type:
-
Manual
-
Function:
-
Isolation function
-
Certification:
-
TUV CE

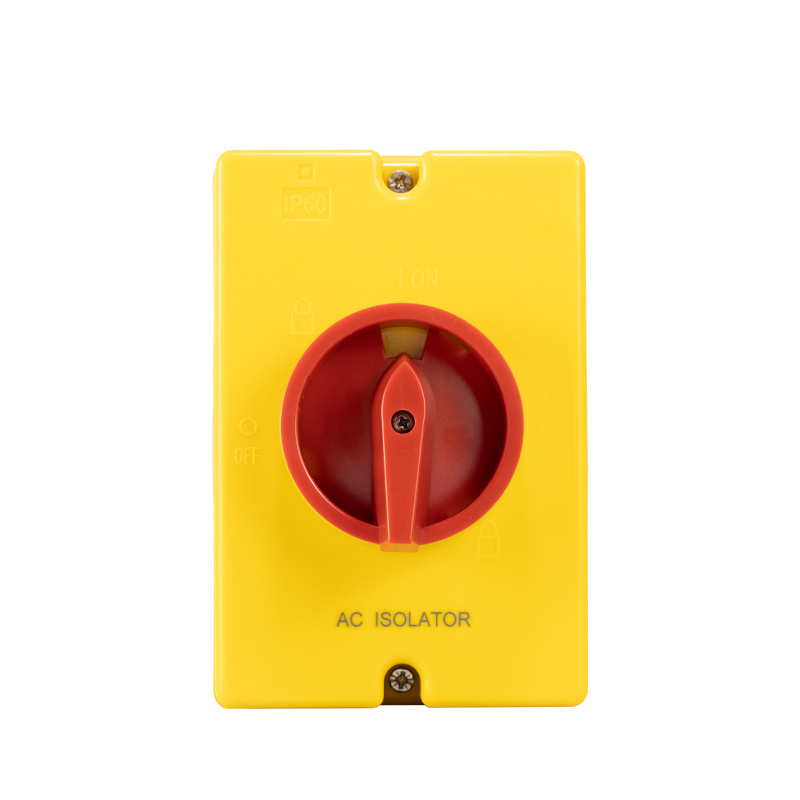

Product Description
Product features
1.
Rated insulation voltage 690V, current 20A~160A, commonly used in single-phase or three-phase AC system.
2.
IP66 box body design, with the import of the sealing strip of the safety seal and dust, waterproo, anti ultraviolet materials
3.
Switch rotating operator(knob)with three lock positin, reliable to peevent misuse
4.
Suitable for different cable connectors: M25,M20,M16 and M12, optional waterproof cable connectors
5.
Large wiring operation space , the product is fixed on the box body, the connection is still conevenient
6.
Adequale internal space, good heat dissipation effect, the whole machine can be loaded at-25℃ -70℃
7.
Large contrast color design, see to distinguish.
8.
Protection degree: IP66
Specification
|
Product Model
|
EL32R-4
|
|
Rated insulation voltage Ui
|
690V
|
|
Rated heating current Ithe
|
32A
|
|
Pole
|
4P
|
|
Rated voltage Ue
|
415V
|
|
Working Temperature
|
-40℃ ~+85℃
|
|
Waterproof grade
|
IP66
|
|
Mechanical Life
|
Not less than 10000 times
|
