Quick Details
-
Weight:
-
Different
-
Size:
-
Different
-
Power:
-
Different
-
Product name:
-
Screw press dehydrator
-
Application:
-
Sludge Dewatering
-
Type:
-
Screw
-
Keywords:
-
Screw press dehydrator
-
Certification:
-
ISO9001
-
After-sales Service Provided:
-
Engineers, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Processing:
-
Industry Waste Water
-
Key word:
-
dewatering screw
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Viet Nam, Philippines, Brazil, Peru, Indonesia, Mexico, Russia, Malaysia, Australia, Argentina, Chile, Sri Lanka, Nigeria
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Qiankun
-
Material:
-
Wood, Stainless Steel 304
-
Weight:
-
Different
-
Size:
-
Different
-
Power:
-
Different
-
Product name:
-
Screw press dehydrator
-
Application:
-
Sludge Dewatering
-
Type:
-
Screw
-
Keywords:
-
Screw press dehydrator
-
Certification:
-
ISO9001
-
After-sales Service Provided:
-
Engineers, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Processing:
-
Industry Waste Water
-
Key word:
-
dewatering screw
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Viet Nam, Philippines, Brazil, Peru, Indonesia, Mexico, Russia, Malaysia, Australia, Argentina, Chile, Sri Lanka, Nigeria

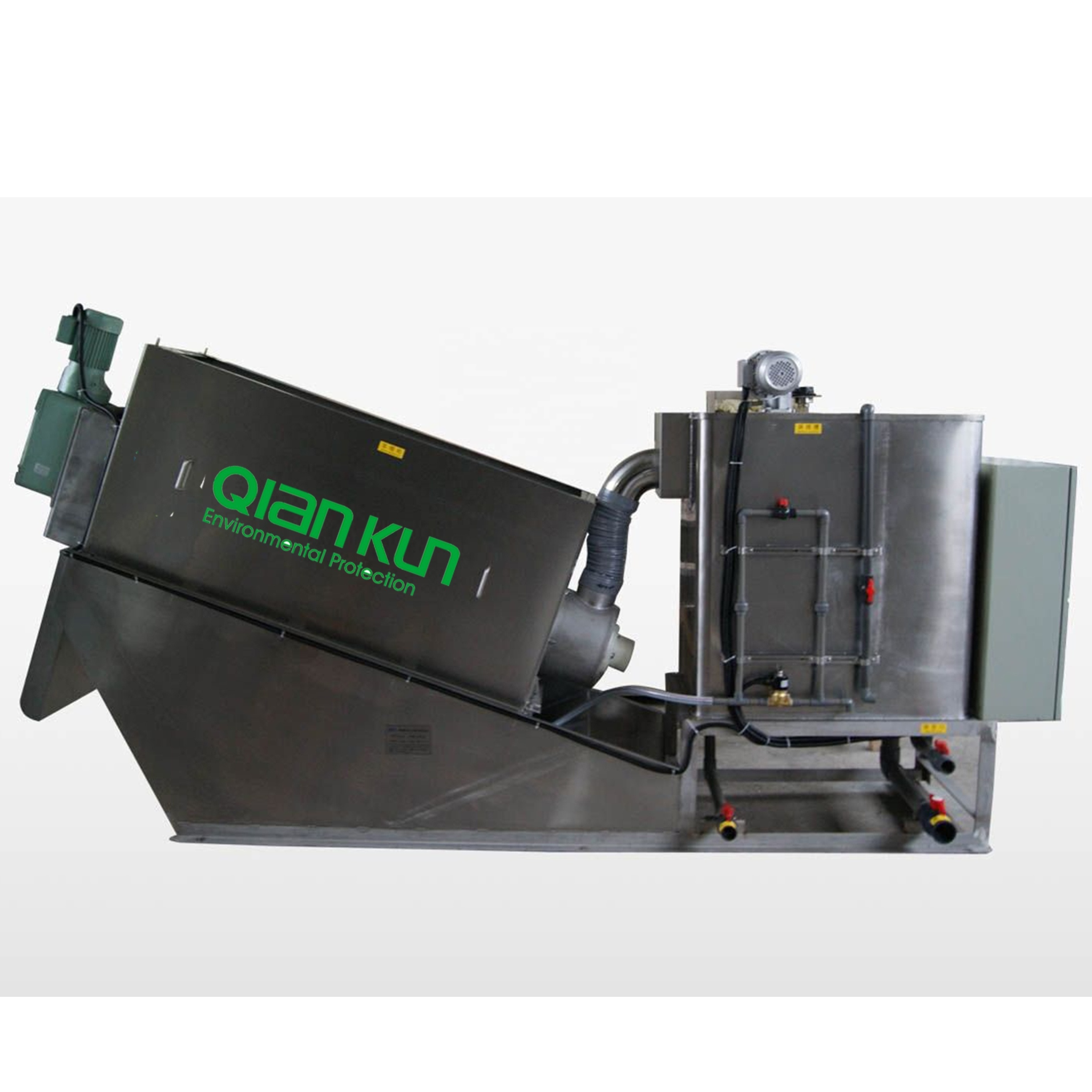

Product Application
QK
dewatering screw
is used for the thickening and subsequent dewatering of sludge. The equipment is small and lightweight and can work in automatic operation with minimal maintenance requirements. The device guarantees the thickening of activated sludge to at least 18% of dry matter, for sludge from municipal WWTPs.
dewatering screw
is produced in several lines, and thanks to its low investment as well as operating costs, it is suitable mainly for industrial treatment plants and municipal treatment plants from 1,000 to 10,000 PE. Another great benefit of this device is the ability to thicken secondary sludge directly from the activation, which may eliminate the cost of the construction of storage tanks within the design of a new WWTP.
|
Specifications for
dewatering screw
|
|
|
|
|||
|
Model
|
Capacity (kg/h)
|
Power (kW)
|
Disc Specification(mm)
|
Weight (kg)
|
|
QKDL-131
|
5~10
|
0.36
|
DN130*1180
|
250
|
|
QKDL-132
|
10~20
|
0.54
|
DN130*1180
|
350
|
|
QKDL-133
|
15~30
|
0.91
|
DN130*1180
|
450
|
|
QKDL-251
|
15~30
|
0.92
|
DN250*1760
|
500
|
|
QKDL-252
|
30~60
|
1.47
|
DN250*1760
|
800
|
|
QKDL-253
|
45~90
|
2.2
|
DN250*1760
|
1100
|
|
QKDL-301
|
30~60
|
1.3
|
DN300*2220
|
750
|
|
QKDL-302
|
60~120
|
2.05
|
DN300*2220
|
1340
|
|
QKDL-303
|
90~180
|
3
|
DN300*2220
|
1750
|
|
QKDL-304
|
120~240
|
3.75
|
DN300*2220
|
2150
|
|
QKDL-351
|
50~100
|
1.85
|
DN350*2480
|
1150
|
|
QKDL-352
|
100~200
|
2.95
|
DN350*2480
|
1950
|
|
QKDL-353
|
150~300
|
4.4
|
DN350*2480
|
2800
|
|
QKDL-354
|
200~400
|
5.9
|
DN350*2480
|
3700
|
|
QKDL-401
|
80~160
|
3
|
DN400*3100
|
2050
|
|
QKDL-402
|
160~320
|
4.5
|
DN400*3100
|
3850
|
|
QKDL-403
|
240~480
|
7.5
|
DN400*3100
|
5400
|
|
QKDL-404
|
320~640
|
9
|
DN400*3100
|
7000
|
Main Features
1) Simple Processing, low investment system, energy-efficient in dewatering;
2) Programmed control system, more convenient and accurate operation.;
3) Unique flocculating chemical, higher dewatering performance ;
4) Lower running cost ;
5) widely used in many fileds.
Sludge entering
Flocculation
Compressing
Dewatering
Sludge discharging
Rinsing
Pre-Sales Service
* 7/24 technical service on line ;
* Free water sample test;
* Engineer on-spot investigation if necessary
* View our Factory.
dewatering screw
After-Sales Service
* 7/24 technical service on line ;
* One Year Guarantee;
* Engineers available to service overseas.
dewatering screw
|
Packaging
|
|
|
|
dewatering screw
Packaging Details
|
Packed in wooden box, and Container loading in factory.
|
|
Customer from Russia
Customer from Egypt
Customer from India & UAE
Customer from
dewatering screw
,combining with advanced technology from China and abroad, owns abundant practical experience and high-tech research team ,launcha whole chain industrial enterprise, which offers a one-stop service for all kinds of waste water treatment project,and has accumulated over 2000 of references in pulp&paper, printing&dyeing, chemical fiber, chemicals, leather,pharmaceutical, medical treatment,breeding, etc. various kinds of industries and municipal sewage treatment projects. gained a global sales network reaching India, Egypt, Nigeria, Indonesia,Philippines, Vietnam,Thailand , Malaysia ,Russia , Ethiopia , Argentina etc.
