Quick Details
-
Brand Name:
-
CSQ
-
Model Number:
-
HYCQ5M
-
Rated Current:
-
1250A
-
Brand:
-
CSQ Dual Power Automatic Transfer Switching Equipment
-
Rated operating voltage:
-
400V
-
Rated current:
-
10~1250A
-
Certificate:
-
CE,CCC,ISO,PICC
-
Product name:
-
Auto Transfer Switch
-
Color:
-
Black
-
Name:
-
ATS
-
Pole:
-
3P/4P
-
Warranty:
-
18 Months
-
Rated voltage:
-
690V
Quick Details
-
Type:
-
CB
-
Number of Pole:
-
4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CSQ
-
Model Number:
-
HYCQ5M
-
Rated Current:
-
1250A
-
Brand:
-
CSQ Dual Power Automatic Transfer Switching Equipment
-
Rated operating voltage:
-
400V
-
Rated current:
-
10~1250A
-
Certificate:
-
CE,CCC,ISO,PICC
-
Product name:
-
Auto Transfer Switch
-
Color:
-
Black
-
Name:
-
ATS
-
Pole:
-
3P/4P
-
Warranty:
-
18 Months
-
Rated voltage:
-
690V
Products Description

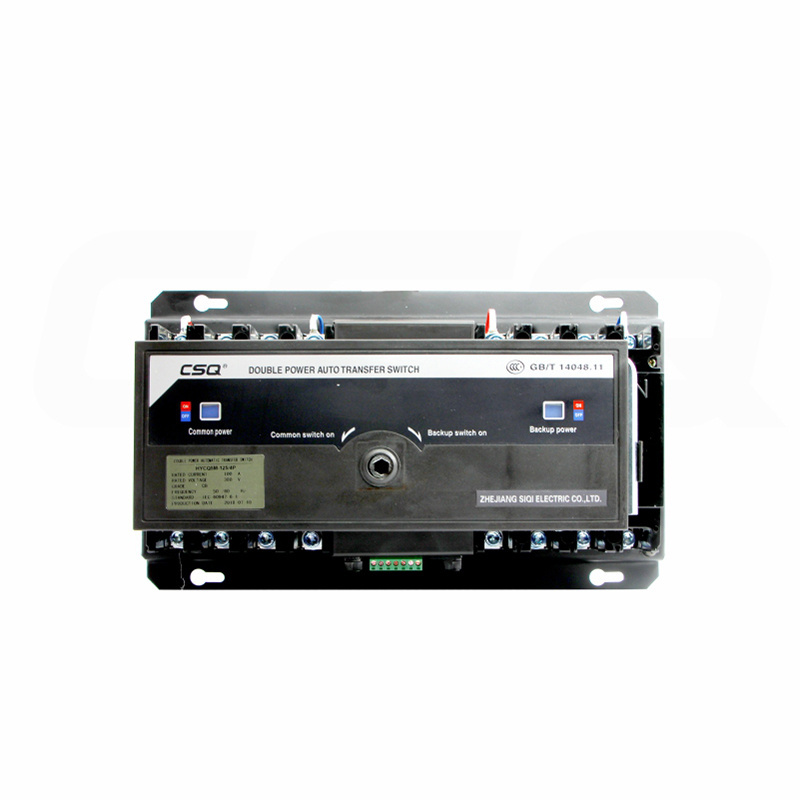

HYCQ5M Series double power automatic transfer switch is used in AC 50HZ, rated voltage below 690V. Two power supply system. It can make a automatic transfer between the common power and backup power but without manual operation. This switch accords with the following terms of national GB/T14048. 11 <>standards: Operating mechanism have reliable electrical and mechanical interlocking, in order to prevent concurrent access to the common power and backup power.HYCQ5M, when the voltage of detected A phase and all the phases of the common power interrupt in a scheduled time, will switch to connect the load from common power to backup power, and when the common power goes back to normal, it will automatically connect the load to the common power(with phase failure protection function)
Product Paramenters
|
Current
|
100A
|
250A
|
400A
|
800A
|
1250A
|
||||
|
Rated insulation voltage Ui
|
690V
|
|
|
|
|
||||
|
Rated impaction withstand voltage Uimp
|
8KV
|
|
|
|
|
||||
|
Rated working voltage Ue
|
AC380V
|
|
|
|
|
||||
|
Rated working current Ie
|
100A
|
250A
|
400A
|
800A
|
1250A
|
||||
|
Load character
|
AC33iB
|
|
|
|
|
||||
|
Rated making capacity
|
10Ie
|
|
|
|
|
||||
|
Rated breaking capacity
|
8Ie
|
|
|
|
|
||||
|
Rated limting short-circuit current
|
50KA
|
|
|
|
|
||||
|
Rated short time withstand current Ie
|
7KA
|
|
|
|
|
||||
|
Change-over time
|
4S
|
|
|
|
|
||||
|
Voltage of control power supply
|
AC220V
|
|
|
|
|
||||
|
Energy consumption of the motor
|
40W
|
|
|
|
|
||||
|
Weight Kg
|
8
|
10
|
25
|
50
|
75
|
||||
