- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
LIEBO
-
Fork Length:
-
70mm
-
Fork Width:
-
outer width:580mm
-
Overall Dimensions:
-
1660mm
-
Weight (KG):
-
220 kg
-
Key words:
-

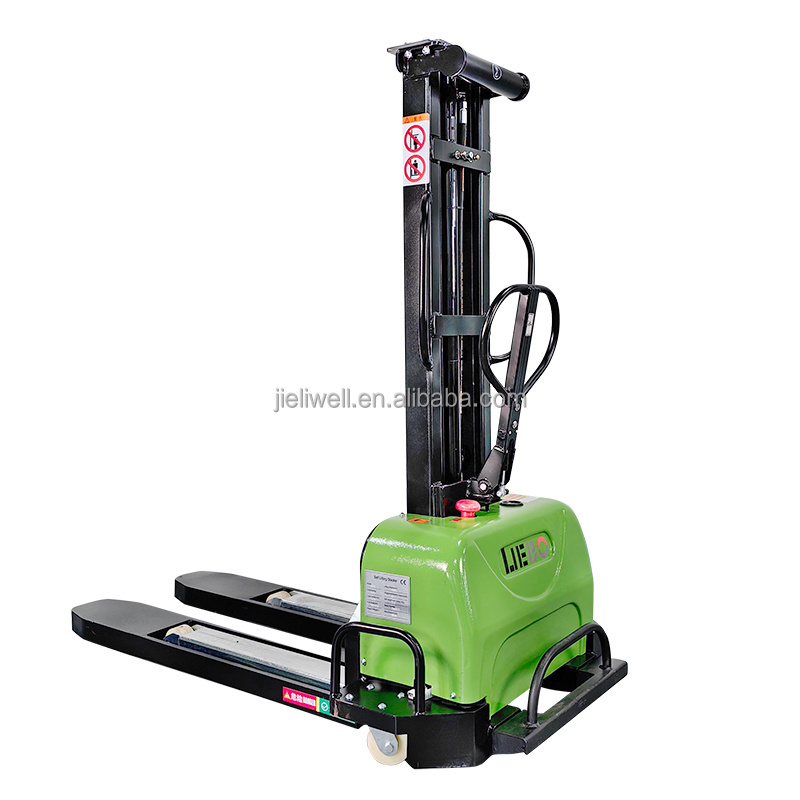

Self Loading Stacker
-
Loading Capacity:
-
500kg
-
Feature:
-
High Efficiency
-
Color:
-
Green
-
Advantage:
-
stock
-
After-sales Service Provided:
-
Online Support
-
Product Type:
-
Electric Hydraulic Truck
Quick Details
-
Min. Lifting Height:
-
80mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LIEBO
-
Fork Length:
-
70mm
-
Fork Width:
-
outer width:580mm
-
Overall Dimensions:
-
1660mm
-
Weight (KG):
-
220 kg
-
Key words:
-
Self Loading Stacker
-
Loading Capacity:
-
500kg
-
Feature:
-
High Efficiency
-
Color:
-
Green
-
Advantage:
-
stock
-
After-sales Service Provided:
-
Online Support
-
Product Type:
-
Electric Hydraulic Truck
Products Description
Specification
|
Model
|
Unit
|
SE05
|
SE07
|
|
|
Operation type
|
/
|
Semi-electric
|
|
|
|
Loading Capacity
|
kg
|
500
|
700
|
|
|
Loading Centre
|
mm
|
400
|
400
|
|
|
lifting height
|
mm
|
1100/1300/1500
|
|
|
|
weight
|
kg
|
253
|
265
|
|
|
Max height mast lifted with backrest
|
mm
|
2660/2860/3060
|
|
|
|
Overall length of frame
|
mm
|
1569
|
1600
|
|
|
Overall width of frame
|
mm
|
885
|
880
|
|
|
Mast lowered height
|
mm
|
1395/1595/1795
|
|
|
|
Fork Length
|
mm
|
1115
|
1160
|
|
|
Mini turning radius
|
mm
|
1000
|
1000
|
|
|
Fork outside width
|
mm
|
580
|
580
|
|
|
Lift speed(laden/unladen)
|
mm
|
135/140
|
135/140
|
|
|
Lowering speed(laden/unladen)
|
mm
|
145/140
|
145/140
|
|
|
Geadeability
|
%
|
3.0/3.5
|
3.0/3.5
|
|
|
Fork inside width
|
mm
|
190
|
190
|
|
|
Rated output
|
KW
|
0.8
|
0.8
|
|
|
wheels type
|
mm
|
PU
|
PU
|
|
|
Battery voltage
|
V/AH
|
12/45
|
12/45
|
|
Details Images
Support leg.
Thicker forks .
Safaty signs.
Pallet
Select
.
Electric lifting hydraulic system.
Pull handle.
