Quick Details
-
Model Number:
-
1027B-XXP
-
Max. Current:
-
2A
-
Product name:
-
Dip Switch
-
Pitch:
-
1.27mm
-
Color:
-
black
-
Item:
-
SMD DIP SWITCH
-
Material:
-
Plastic, copper
-
Cover:
-
UL94V-O PBT Thermoplastic
-
Contact:
-
copper alloy
-
Shape:
-
Piano type
-
Certification:
-
CE ROHS, CE ROHS
Quick Details
-
Max. Voltage:
-
300V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZGOZIE
-
Model Number:
-
1027B-XXP
-
Max. Current:
-
2A
-
Product name:
-
Dip Switch
-
Pitch:
-
1.27mm
-
Color:
-
black
-
Item:
-
SMD DIP SWITCH
-
Material:
-
Plastic, copper
-
Cover:
-
UL94V-O PBT Thermoplastic
-
Contact:
-
copper alloy
-
Shape:
-
Piano type
-
Certification:
-
CE ROHS, CE ROHS
Specification
|
Product Name
|

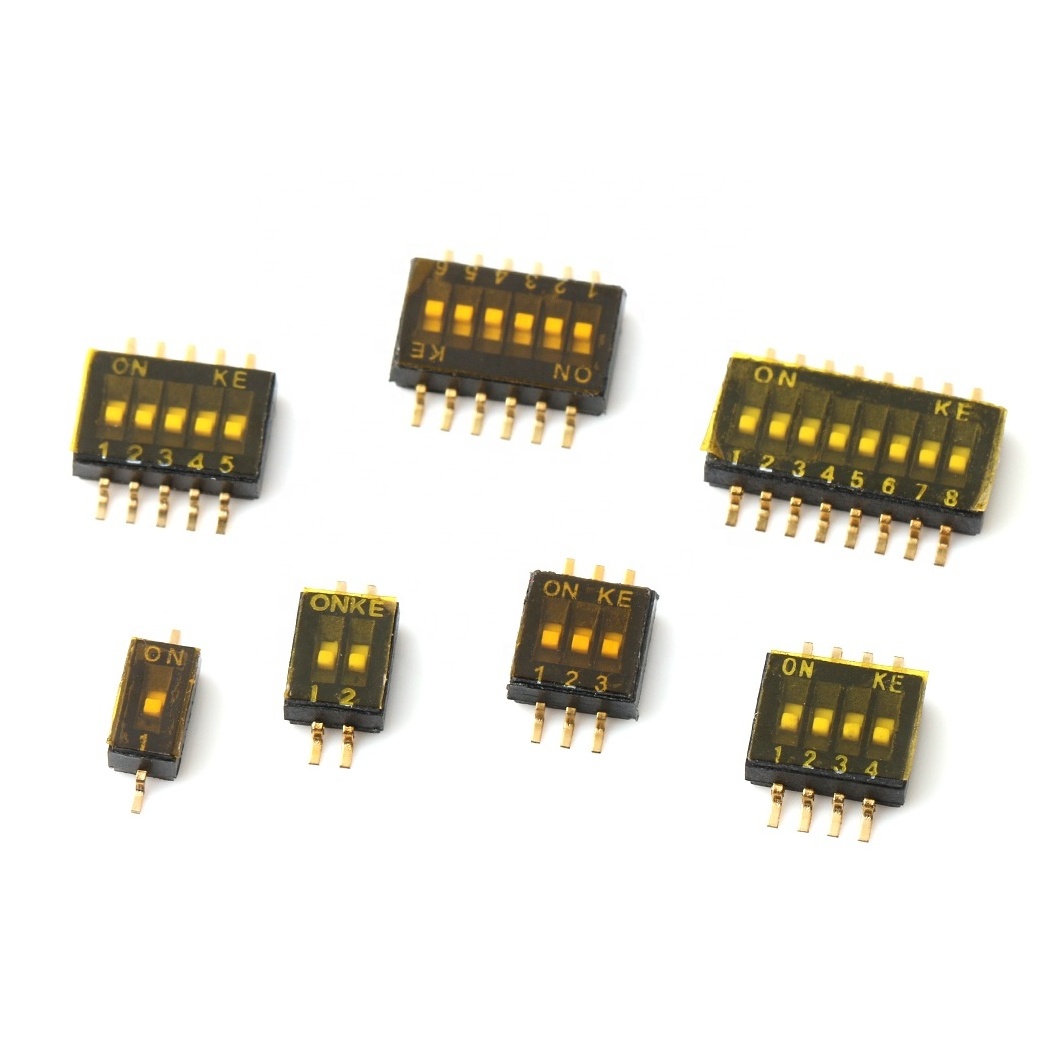

SMD Dip Switch 1.27 pitch Dip Dial Switch 1 2 3 4 5 6 7 8 9 10 11 12 pin Dip Switch
|
|
Item Number
|
KF-10 dip switch
|
|
Feature
|
Long life and good quality
|
|
Electronic Life
|
>10000CYCLES
|
|
Mechanical Life
|
>10000CYCLES
|
|
Contact Resistance
|
100mΩ Max
|
|
Insulation Resistance
|
1000 MΩ Min. 500VDC
|
|
Withstand Voltage
|
>1500V/MINUTE
|
|
Dielectric Withstand
|
500VAC 1 minute
|
|
Storage Temperature
|
-25°C~+85°C
|
Product Description
DIP switch is made of high-quality plastic and metal, using high-temperature engineering plastic UL94-0 material and film, with insulation, no stickiness, and strong impact resistance.
Gold-plated copper, good conductivity, strong corrosion resistance, precision production, stable performance, quality assurance.
DIP switch are designed to be used on printed circuit boards along with other electronic components, and are often used to customize the behavior of electronic devices for specific situations, ideal for products that require manual automatic programming.
Dimensions of 1.27mm dip switch
1-8positions dip switch
If you want to know more information about
DIP switch
, welcome to
contact us
!
