Quick Details
-
Power:
-
2.2KW
-
Dimension(L*W*H):
-
1200*800*1100mm
-
Weight:
-
320 KG
-
Output product name:
-
chocolate
-
Product name:
-
Chocolate Making Machine Chocolate Melanger Chocolate Stone Refiner
-
Keywords:
-
Chocolate Melanger
-
Capacity:
-
50L
-
Fineness:
-
20um
-
Cylinder:
-
508mm*398mm
-
Spindle Speed:
-
48 rpm
-
Grinding time:
-
10-16 hours
-
Suitable for:
-
Chocolate Candy
-
Package:
-
Wooden Case
Quick Details
-
Brand Name:
-
Auris, Auris
-
Place of Origin:
-
Henan, China
-
Voltage:
-
220/380V
-
Power:
-
2.2KW
-
Dimension(L*W*H):
-
1200*800*1100mm
-
Weight:
-
320 KG
-
Output product name:
-
chocolate
-
Product name:
-
Chocolate Making Machine Chocolate Melanger Chocolate Stone Refiner
-
Keywords:
-
Chocolate Melanger
-
Capacity:
-
50L
-
Fineness:
-
20um
-
Cylinder:
-
508mm*398mm
-
Spindle Speed:
-
48 rpm
-
Grinding time:
-
10-16 hours
-
Suitable for:
-
Chocolate Candy
-
Package:
-
Wooden Case
Products Description

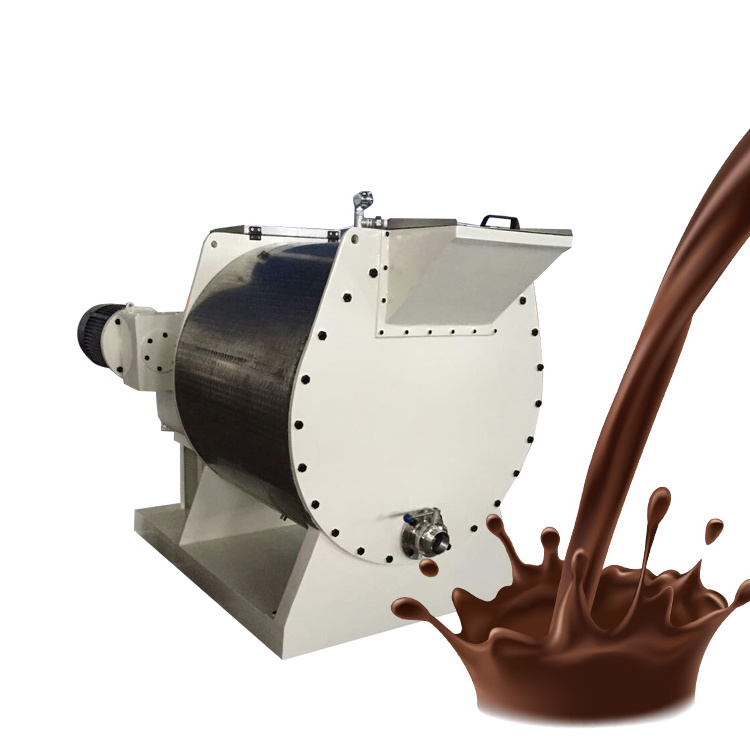

Lab Used 50L Chocolate Conching Refining Making Machine Melanger
Chocolate Stone Refiner Conche Grinder Mill
Chocolate refiner machine is suitable for grinding chocolate, soybean powder, and daily chemical raw materials. The fine grinding time is generally 10-16 hours, and the average fine particle size is about 20 microns. This refiner is especially suitable for small and medium-sized chocolate candy factories, laboratories, shops and other companies with production process requirements.
There are many other chocolate processing machines, chocolate coating machine, tempering machine, cooling tunnel and so on. More information, please contact us.Whatsapp:008618538182735
There are many other chocolate processing machines, chocolate coating machine, tempering machine, cooling tunnel and so on. More information, please contact us.Whatsapp:008618538182735



Product Features
1. chocolate refiner has the advantages of compact structure, simple operation and convenient maintenance.
2. The refining machine can mix the raw materials of chocolate slurry evenly. Under the action of lecithin, it has a good
effect on the dilution and emulsification of chocolate slurry.
3. It has a good effect on dehydration and deodorization, and can maintain the natural color and aroma of chocolate.
4. The cylindrical refiner is a double-layer spacer for heat preservation. The temperature can be controlled and adjusted by
electric heating.
2. The refining machine can mix the raw materials of chocolate slurry evenly. Under the action of lecithin, it has a good
effect on the dilution and emulsification of chocolate slurry.
3. It has a good effect on dehydration and deodorization, and can maintain the natural color and aroma of chocolate.
4. The cylindrical refiner is a double-layer spacer for heat preservation. The temperature can be controlled and adjusted by
electric heating.

Product Parameters
Model
|
AQM-5
|
AJM-50
|
AJM-500
|
AQM-1000
|
Volume
|
5L
|
50L
|
500L
|
1000L
|
Fineness
|
20-25um
|
20-25um
|
20-25um
|
20-25um
|
Conching time
|
8-12H
|
10-16H
|
14-18H
|
10-16H
|
Rotation speed
|
140RPM
|
48RPM
|
33RPM
|
37 RPM
|
Power
|
2.2KW
|
1.5KW
|
15KW
|
14.5KW
|
Heating power
|
500W-220V
|
500W-220V
|
3000W-380V
|
6000w,380V
|
Weight
|
80KG
|
320KG
|
2990KG
|
4500KG
|
Size
|
0.7*0.48*0.63m
|
1.2*0.8*1.1m
|
2.15*1.86*1.25m
|
2.8*1.6*2.5m
|
Mold pictures
There are many other chocolate machines, chocolate tempering machine, ball mill, holding tank, mixing machine, cooling tunnel and so on. We also can customize the chocolate production line according to your needs.Please contact us freely. We chat/Whats app:008618538182735
