Quick Details
-
Application:
-
Road Construction
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Taimei
-
Model Number:
-
TM-GG0214
-
Color:
-
Black
-
Raw Material:
-
HDPE Plastic
-
Tensile Strength:
-
25Kn/m--300Kn/m
-
Width:
-
1-6m
-
Length:
-
50-100m
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Road Construction
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Taimei
-
Model Number:
-
TM-GG0214
-
Color:
-
Black
-
Raw Material:
-
HDPE Plastic
-
Tensile Strength:
-
25Kn/m--300Kn/m
-
Width:
-
1-6m
-
Length:
-
50-100m
Products Description

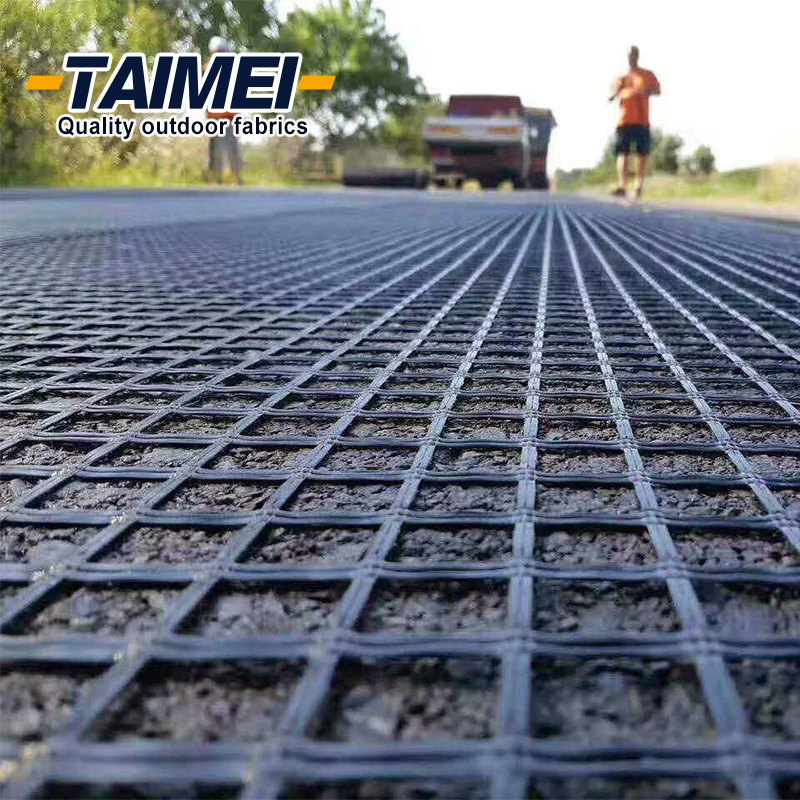

Geogrids
Geogrid is based on fiberglass woven cloth coated with modified bitumen or PVC, it was developed to address the problem of pavement cracking on highways, roads and runways, driven by a need to reduce cost for infrastructure maintenance and repair.
It is characterized by high tensile strength in axial and lateral directions, low stretch rate, alkali-resistance, low temperature- resistance, as well as convenience in construction and low price. It can be used on pitch pavement to prevent cracks and prolong pavement service life. It also can be used as a basal reinforcement material for hillsides, reservoirs, harbors,ports, water channels, seawalls, etc.
High tension resistance, high plane torsion resistance modulus, good creep resistance and stable chemical nature.
High mechanic damage resistance and durability and large friction factor with sandy stone.
Improve the bearing capacity of the roadbed and extend the service life of the roadbed.
Product Specifications
|
Index Properties
|
Units
|
MD Values
|
XMD Values
|
|||
|
Aperture Dimensions
|
mm (in)
|
38 (1.5)
|
38 (1.5)
|
|||
|
Minimum Rib Thickness
|
mm (in)
|
1.1 (0.04)
|
0.8 (0.03)
|
|||
|
Tensile Strength @ 2% Strain
|
kN/m (lb/ft)
|
6.5 (450)
|
6.5 (450)
|
|||
|
Tensile Strength @ 5% Strain
|
kN/m (lb/ft)
|
13 (890)
|
13 (890)
|
|||
|
Ultimate Tensile Strength
|
kN/m (lb/ft)
|
20 (1370)
|
20 (1370)
|
|||
|
Structural Integrity
|
|
|
|
|||
|
Junction Efficiency
|
%
|
|
93
|
|||
|
Overall Flexural Rigidity
|
mg-cm
|
|
700000
|
|||
|
Aperture Stability
|
m-N/deg
|
|
|
|||
|
Durability
|
|
|
|
|||
|
Resistance to Installation Damage
|
%SC / %SW / %GP
|
|
95 / 93 / 90
|
|||
|
Resistance to Long Term Degradation
|
%
|
|
100
|
|||
|
Resistance to UV Degradation
|
%
|
|
100
|
|||
Details Images
INCREASE BEARING CAPACITY
Increase the bearing capacity of the road (foundation) and prolong the service life of the road (foundation).
CONVENIENT CONSTRUCTION
The construction is convenient, time-saving, labor-saving, shortening the construction period and reducing maintenance costs.
HIGH TENSILE STRENGTH
Support the stable green environment of the side slope grass planting net mat.
ENHANCED FORCE AREA
Prevent the road (ground) from collapse or cracks, and keep the ground beautiful and tidy.
Increase the bearing capacity of the road (foundation) and prolong the service life of the road (foundation).
CONVENIENT CONSTRUCTION
The construction is convenient, time-saving, labor-saving, shortening the construction period and reducing maintenance costs.
HIGH TENSILE STRENGTH
Support the stable green environment of the side slope grass planting net mat.
ENHANCED FORCE AREA
Prevent the road (ground) from collapse or cracks, and keep the ground beautiful and tidy.
Applications
Suitable for all kinds of dam and roadbed reinforcement, slope protection,The cave wallsreinforcement, Large airport, parkinglot, wharf freight yard and other permanent bearing foundation reinforcement.
1.Increase road (ground) base bearing capacity and prolong the service life of road (ground).
2.Prevent road (ground) surface collapse or crack, ground is beautiful and tidy.
3.Construction is convenient, save time, effort, and shorten the construction period, reduce maintenance costs.
4.Prevent culvert crack.
5.Enhance soil, prevent soil erosion.
6.Reducing cushion thickness, saving the cost.
7.To support the stability of slope planting grass mat afforest environment.
8.Can replace the metal mesh, used in coal mine underground false roof net.
2.Prevent road (ground) surface collapse or crack, ground is beautiful and tidy.
3.Construction is convenient, save time, effort, and shorten the construction period, reduce maintenance costs.
4.Prevent culvert crack.
5.Enhance soil, prevent soil erosion.
6.Reducing cushion thickness, saving the cost.
7.To support the stability of slope planting grass mat afforest environment.
8.Can replace the metal mesh, used in coal mine underground false roof net.
Professional OEM of Industrial Textile for 15 years.
TAIMEI Group is a ISO9001 certificated supplier of coated and un-coated woven textile, extruded films and sun shade covers. We headquartered in Qingdao, is responsible for marketing and R&D, while manufacturers in Weihai, Qingdao, Binzhou and Tai'An cities, handling production. With 15+ years of group experience in manufacturing, our production teams have 20+ years of experience in the production of a different kind of fabric, 380+ customers in 60+ countries worldwide, and for a variety of markets, applications and end-users.
In order to provide more professional fabric and finished products to our clients, we split our business to 4 divisions: Woven Division, Geosynthesis Division, Shade Fabric Division, and Tarpaulin Division. To provide many different fabric for different application.
