Quick Details
-
Model Number:
-
BGT-BYX3
-
Name:
-
Solar radiation Shiled
-
Number of Plates:
-
10 plates
-
Innder diamter:
-
30mm
-
Outer Diamter:
-
130mm
-
Application:
-
Instrument Shelter
-
Function:
-
Stevenson Screen
-
Material:
-
ABS engineering plastic
-
Operating Temperature:
-
-40℃-+75℃
-
Mounting Braket:
-
Standard
-
Color:
-
White
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
BGT
-
Model Number:
-
BGT-BYX3
-
Name:
-
Solar radiation Shiled
-
Number of Plates:
-
10 plates
-
Innder diamter:
-
30mm
-
Outer Diamter:
-
130mm
-
Application:
-
Instrument Shelter
-
Function:
-
Stevenson Screen
-
Material:
-
ABS engineering plastic
-
Operating Temperature:
-
-40℃-+75℃
-
Mounting Braket:
-
Standard
-
Color:
-
White
Please Attention
**One-stop Emergency Solution Supplier**
2. Nice quality.
3. Small order is welcome.
4. Online payment.
5. Refund money in case of bad quality.
6. Sample offered but you need to pay it.
7. 1 year free repair for quality warranty.
Products Description

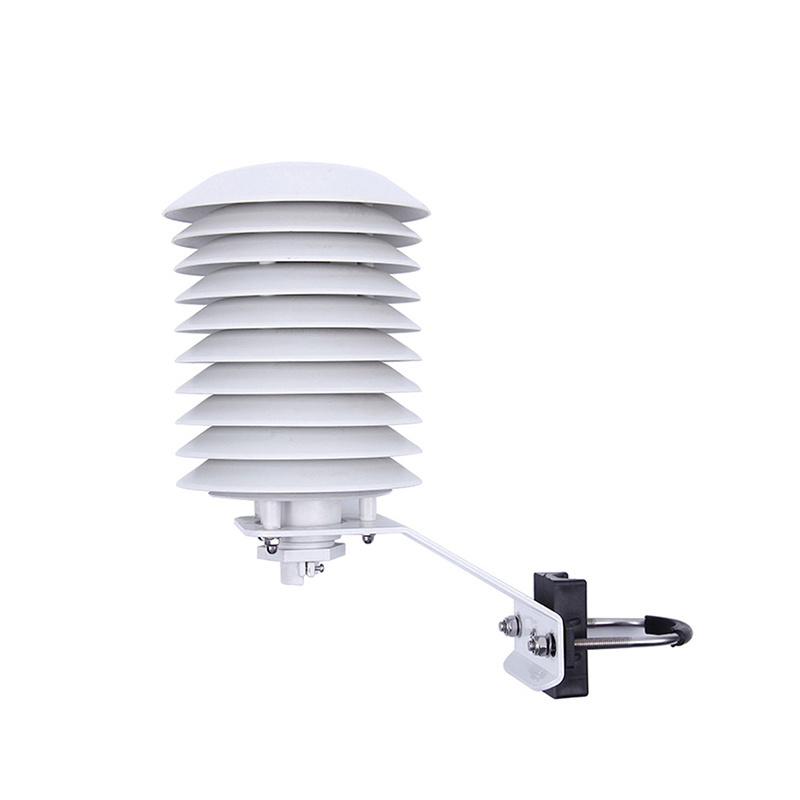

Outdoor Stevenson Screen Instrument Shelter Anti Solar Radiation Shield for meteorological sensor
The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.
Data Sheet
|
Item
|
|
Specifications
|
|
||
|
|
|
A
|
B
|
||
|
numbers of plates
|
|
10
|
7
|
||
|
Color
|
|
Pure White
|
|
||
|
Dimensions (mm)
|
Inner Diameter
|
30
|
22
|
||
|
|
Outer Diameter
|
130
|
79
|
||
|
|
Internal Height
|
135
|
80
|
||
|
Material
|
|
Special engineering plastics against radiation & Stainless steel screw
|
|
||
|
Install accessories(attached)
|
|
Stainless steel bracket
|
|
||
|
Operating temperature
|
|
-40℃-+75℃
|
|
||
Application
Weather Station
Environment Monitoring
Agriculture
Order process
--In order to send you the specific quotation, please feel free to tell us the following information:
1. The inner diameter you required
-- We have
Φ
44mm;
Φ61mm
for your choices.
2. The height you required
-- We have 4-19plates for your choices.
3. The bracket you required -- We have bracket for your choice
3. The bracket you required -- We have bracket for your choice
4. The quantity you want to order
--Sample is also welcome
.
5. Price--
EXW price or FOB price or DAP price.
6. Your complete company name,address (including post code), email address, contact person, phone number,etc.
6. Your complete company name,address (including post code), email address, contact person, phone number,etc.
