Quick Details
-
Brand Name:
-
CARATAR
-
Model Number:
-
ttl-232r-3v3 or ttl-232r-5v
-
Place of Origin:
-
Guangdong, China
-
color:
-
Black or customized
-
Chipset:
-
FTDI FT232RL
-
Length:
-
6ft or optional
-
Connectivity:
-
3.3v or 5v
-
Cable warranty:
-
1 year
-
Product name:
-
usb to 5v TTL UART serial cable connector end TTL-232R-5V compatible
-
Name:
-
Custom Smart Cable TTL-232R-3V3
-
Feature:
-
TTL-232R-5V-AJ,USB-RS485-WE-1800-BT,UT232R-500,DA-70119-R,Smart Cables
-
Compatible:
-
Android System+ Iphone System
-
Certificate:
-
CE.ROHS.FCC
Quick Details
-
USB Type:
-
Standard
-
Material:
-
TPE, ABS, Plastic, Metal
-
Connector:
-
USB 2.0 Connector, Nickel Plated, USB 3.0 Connector, For Iphone
-
Brand Name:
-
CARATAR
-
Model Number:
-
ttl-232r-3v3 or ttl-232r-5v
-
Place of Origin:
-
Guangdong, China
-
color:
-
Black or customized
-
Chipset:
-
FTDI FT232RL
-
Length:
-
6ft or optional
-
Connectivity:
-
3.3v or 5v
-
Cable warranty:
-
1 year
-
Product name:
-
usb to 5v TTL UART serial cable connector end TTL-232R-5V compatible
-
Name:
-
Custom Smart Cable TTL-232R-3V3
-
Feature:
-
TTL-232R-5V-AJ,USB-RS485-WE-1800-BT,UT232R-500,DA-70119-R,Smart Cables
-
Compatible:
-
Android System+ Iphone System
-
Certificate:
-
CE.ROHS.FCC

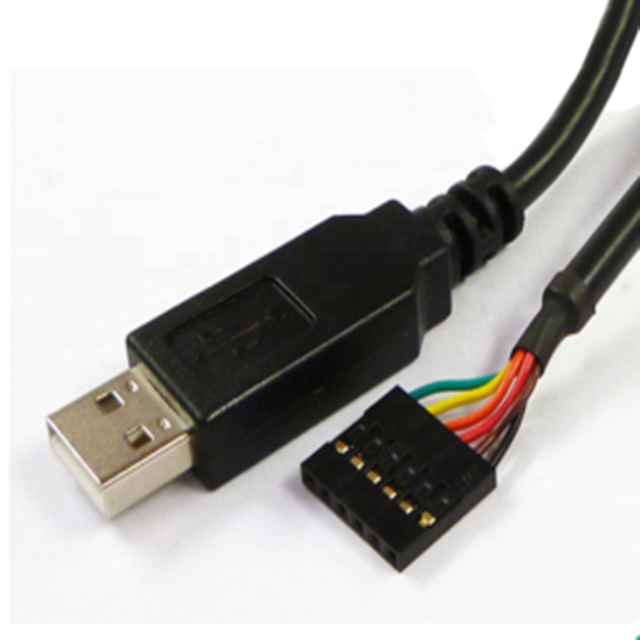

ft232rl ftdi chipset cable, TTL-232R-5V usb to Serial Cable
1.TTL-232R Converter Cable provides a USB to TTL Serial interface with various end connectors.
2. Onboard FT232RL provides single chip USB to asynchronous serial data transfer interface.
3. Entire USB protocol handled by the electronics in the cable USB.
4. Connect directly to a microcontroller UART or I/O pins.
5. 5V CMOS drive outputs and 5V safe TTL inputs make the TTL-232R easy to interface to 5V MCU''s.
6. +5V or +3.3V output allows external logic to be powered from the USB port.
7.6-way outputs provide Tx, Rx, RTS#, CTS#, VCC, and GND (except Audio Jack which provides only TX, RX, and GND).
8.3-way Audio Jack connector provides Tx, Rx, and GND.
9.Low USB bandwidth consumption.
10.UHCI / OHCI / EHCI host controller compatible.
11.USB 2.0 Full Speed compatible.
12.-40°C to +85°C operating temperature range.
13. Cable length is 1.80m (6 feet).
14. Custom versions also available (subject to MOQ).
| Type | USB to Serial TTL Cable (OEM FTDI Cable) |
| Connector 1 | USB 2.0 |
| Connector 2 | 6Pin connector,6 open wires,DC3.5MM Plug optional |
| Chipset Used | FT232 OR optional |
| Cable | 3 core, 4 core, 6 core available |
| Pinout | VCC, TXD, RTS, RXD, CTS, GND |
| Support | WINDOWS7/8/98/ME/2000/XP,Vista32 , Mac8.6 or later , LINUX O.S,etc |
TTL-232R-5V-WE, TTL-232R-3V3-WE Connections and Mechanical
Details
The following Figure 6.1 shows the cable signals and the wire colours for these signals on the TTL-232R-
5V-WE and TTL-232R-3V3-WE cables
TTL-232R-5V-WE and TTL-232R-3V3-WE Cables
The TTL-232R-5V-WE and TTL-232R-3V3-WE cables are both un-terminated; they are bare and tinned
wires. The difference between the two cables is that the TTL-232R-5V-WE operates at +5V levels (signals
and power supply) and the TTL-232R-3V3-WE operates at +3.3V levels (signals only, VCC=+5V).
also Customized for USB to RJ45 industrial serial cable RS485 half-duplex serial port debugging cable
customized USB to RS485 Converter cable , USB-RS485-WE-1800-BT/FTDI Chipset USB to RS485 / RS422 Converter, Mini PRO
