Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Industrial
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
ADTO
-
Model Number:
-
ADTO-FRP
-
Name:
-

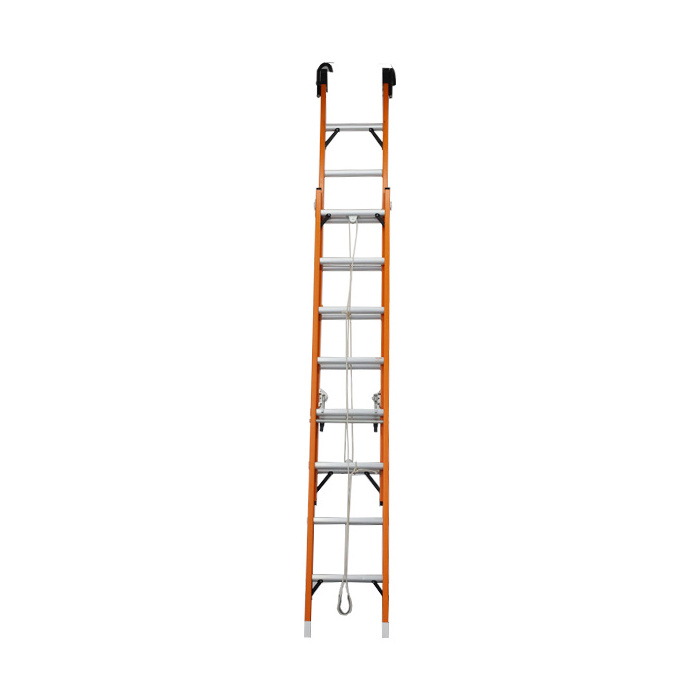

ADTO Extension Rop Ffiberglass Ladder
-
Color:
-
Red / Yellow
-
Step:
-
From 2x8 steps to 2x19 steps
-
Max load:
-
150kgs/330lb
-
Extension height:
-
4m-11m
-
Closed height:
-
2.9m-6.2m
-
Step thickness:
-
1.5mm
-
Packing:
-
shrink wrap + master carton
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Other
-
Project Solution Capability:
-
graphic design, 3D model design, Others
-
Application:
-
Hotel
-
Design Style:
-
Industrial
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
ADTO
-
Model Number:
-
ADTO-FRP
-
Name:
-
ADTO Extension Rop Ffiberglass Ladder
-
Color:
-
Red / Yellow
-
Step:
-
From 2x8 steps to 2x19 steps
-
Max load:
-
150kgs/330lb
-
Extension height:
-
4m-11m
-
Closed height:
-
2.9m-6.2m
-
Step thickness:
-
1.5mm
-
Packing:
-
shrink wrap + master carton
| Model | No. Of Steps | Specification | Material & Thickness | Net Weight | Max. Load |
| ADTO-ROE2X8 | 2X8 |
Closed height: 2.9 m
extension height:4.4 m Space between steps: 30cm Ladders width: 41cm |
FRP + 6063-T5 Alu Steps Frame thickness: 2.0mm Step thickness:1.5mm |
14.8kg | 150kg |
| ADTO-ROE2X9 | 2X9 |
Closed height:3.2 m
extension height:5 m Space between steps: 30cm Ladders width: 41cm |
FRP + 6063-T5 Alu Steps Frame thickness: 2.0mm Step thickness:1.5mm |
15.8kg | 150kg |
| ADTO-ROE2X10 | 2X10 |
Closed height:3.5 m
extension height:5.6 m Space between steps: 30cm Ladders width: 41cm |
FRP + 6063-T5 Alu Steps Frame thickness: 2.0mm Step thickness:1.5mm |
17.3kg | 150kg |
| ADTO-ROE2X11 | 2X11 |
Closed height:3.8 m
extension height:6.2 m Space between steps: 30cm Ladders width: 41cm |
FRP + 6063-T5 Alu Steps Frame thickness: 2.0mm Step thickness:1.5mm |
18.2kg | 150kg |
| ADTO-ROE2X12 | 2X12 |
Closed height: 4.1 m
extension height:6.8 m Space between steps: 30cm Ladders width: 41cm |
FRP + 6063-T5 Alu Steps Frame thickness: 2.0mm Step thickness:1.5mm |
19.5kg | 150kg |
| ADTO-ROE2X13 | 2X13 |
Closed height: 4.4 m
extension height:7.4 m Space between steps: 30cm Ladders width: 41cm |
FRP + 6063-T5 Alu Steps Frame thickness: 2.0mm Step thickness:1.5mm |
20.8kg | 150kg |
| ADTO-ROE2X14 | 2X14 |
Closed height: 4.7 m
extension height:8 m Space between steps: 30cm Ladders width: 41cm |
FRP + 6063-T5 Alu Steps Frame thickness: 2.0mm Step thickness:1.5mm |
22kg | 150kg |
| ADTO-ROE2X15 | 2X15 |
Closed height: 5 m
extension height:8.6 m Space between steps: 30cm Ladders width: 41cm |
FRP + 6063-T5 Alu Steps Frame thickness: 2.0mm Step thickness:1.5mm |
23.2kg | 130kg |
| ADTO-ROE2X16 | 2X16 |
Closed height:5.3 m
extension height:9.2 m Space between steps: 30cm Ladders width: 41cm |
FRP + 6063-T5 Alu Steps Frame thickness: 2.0mm Step thickness:1.5mm |
24.5kg | 130kg |
| ADTO-ROE2X17 | 2X17 |
Closed height: 5.6m
extension height:9.8 m Space between steps: 30cm Ladders width: 41cm |
FRP + 6063-T5 Alu Steps Frame thickness: 2.0mm Step thickness:1.5mm |
25.8kg | 130kg |
| ADTO-ROE2X18 | 2X18 |
Closed height: 5.9 m
extension height:10.4 m Space between steps: 30cm Ladders width: 41cm |
FRP + 6063-T5 Alu Steps Frame thickness: 2.0mm Step thickness:1.5mm |
27kg | 130kg |
| ADTO-ROE2X19 | 2X19 |
Closed height: 6.2 m
extension height:11 m Space between steps: 30cm Ladders width: 41cm |
FRP + 6063-T5 Alu Steps Frame thickness: 2.0mm Step thickness:1.5mm |
28.2kg | 130kg |
Hubei ADTO GROUP, founded in 1998, is one of the largest R & D manufacturer of scaffolding & formwork, Aluminum products, building materials etc. in China.
Now we have a series building construction & home decoration products, brands for your choice, welcome to inquiry us for product catalog.
1. OEM / ODM are welcome.
2. Alibaba trade assurance.
3. After sale service is provided.
4. Inspect every product before delivery.
5. Factory competitive price with high quality.
6. Some items in stock can be fast delivery.
7. One-stop service in the construction industry form concept to project completion.
8. Complete product library.
Any need, welcome to inquiry us for more details, we'll reply you within 24H.
