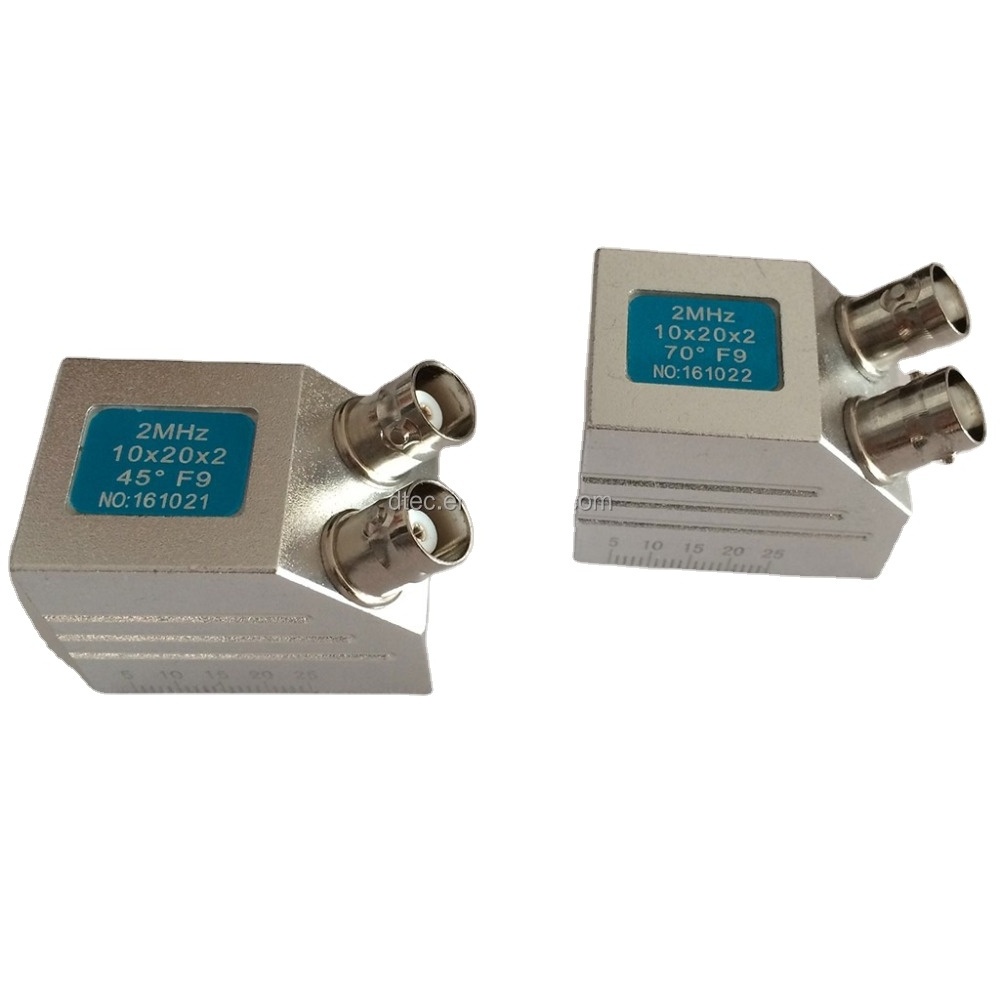

Quick Details
-
Model Number:
-
DP-20
-
Crystal Size:
-
10x20mm,20x20mm Max.20x34
-
Crystal Type:
-
Double Crystal
-
Testing Range:
-
8mm-50mm(according to required focus distance)
-
Crystal Angle:
-
45°,60°,65°,70°
-
Center Frequency:
-
2MHz,4MHz,5MHz
-
Material:
-
Stainless Steel
-
Sensitivity:
-
52-65dB
-
Resolution:
-
34dB
-
Focal Distance:
-
9-10mm
-
Initial Pulse Width:
-
3mm
Quick Details
-
Warranty:
-
3 months
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
DTEC
-
Model Number:
-
DP-20
-
Crystal Size:
-
10x20mm,20x20mm Max.20x34
-
Crystal Type:
-
Double Crystal
-
Testing Range:
-
8mm-50mm(according to required focus distance)
-
Crystal Angle:
-
45°,60°,65°,70°
-
Center Frequency:
-
2MHz,4MHz,5MHz
-
Material:
-
Stainless Steel
-
Sensitivity:
-
52-65dB
-
Resolution:
-
34dB
-
Focal Distance:
-
9-10mm
-
Initial Pulse Width:
-
3mm
We are Original probe producer,can make you probes at any given requirement,including brand label,e.g.GE,Olympus etc.All our probes comes with high quality crystal,with good signal and stable performance.
All probe specification can be customized according to your requirement.
Plese do inform me the folowing information when you need UT probes:
1)Probe type:Angle Probe or Straight Probe;
2)Angle:40C,60C,70C or others;
3)Crystal Type:Single Crystal,Dual Crystal;
4)Crystal Size:normal size:10x20mm;
5)Frequency:normal 2MHz,4MHz.
The probe price mainly depends on the crystal size.
And the frequecy can be chosed by yourself in the range of 0.2MHz~10MHz. For other parameters like angle,we can provide the general angles such as 30°,45°,60°,70°,80°.
| Crystal Size | 10x20mm |
| Crystal Type | Double Crystal |
| Crystal Angle | 45 °,60 °,70 ° |
| Testing Range |
8mm-50mm(according to required focus distance) |
| Center Frequency | 2MHz,4MHz,5MHz |
| Test Standard Based | EN12668-2 |
| Material | Stainless Steel |
| Sensitivity | 52-65dB |
| Resolution | 34dB |
| Initial Pulse Width | 3mm |
| Angular deviation | ±1° |
| Focal Distance | 9-10mm |
| Electrical Impedance | 49 Ω |
| Working Temperature | -5-50°C |
Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
Below is packing detail for all UT probes(small metal case,much more safe):
