This chapter details the functions and methods of the power frequency three-in and three-out UPS operation control display
panel, and provides LCD display information, including LCD display type, detailed menu information, prompt window
information and UPS alarm information list.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
7-29KG
-
Input voltage:
-
3*400VAC (3ph+N)
-

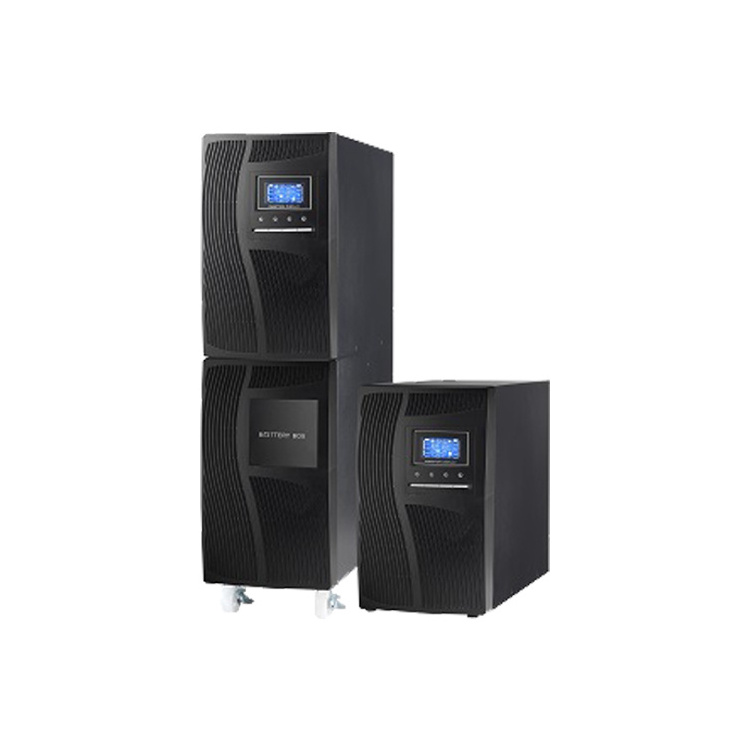

Product name:
-
Online UPS Systems
-
Capacity:
-
1-10KVA
-
Color:
-
Customer Require
-
Display:
-
LED
-
Warrenty:
-
2years
-
Appplication:
-
Office Backup Power
-
Certification:
-
ISO9001
-
Battery capacity:
-
2200mah*4pcs
-
Function:
-
Adjustable Rated Voltage
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Green Energy
-
Model Number:
-
C10K
-
Weight:
-
7-29KG
-
Input voltage:
-
3*400VAC (3ph+N)
-
Product name:
-
Online UPS Systems
-
Capacity:
-
1-10KVA
-
Color:
-
Customer Require
-
Display:
-
LED
-
Warrenty:
-
2years
-
Appplication:
-
Office Backup Power
-
Certification:
-
ISO9001
-
Battery capacity:
-
2200mah*4pcs
-
Function:
-
Adjustable Rated Voltage
The operation control display panel of the UPS is located on the front door. Through the operation control display panel,
the UPS operation control, and query for all of the UPS parameters, UPS and battery status, and event and alarm
information.
the UPS operation control, and query for all of the UPS parameters, UPS and battery status, and event and alarm
information.
|
Capacity
|
Voltage
|
Size(width*depth*height)
|
N.G
|
|
10 KVA
|
DC 240V
|
250*592*826 mm
|
32 KG
|
|
20 KVA
|
|
|
35KG
|
|
30 KVA
|
|
300*815*1000 mm
|
82KG
|
|
40 KVA
|
|
|
|
|
60 KVA
|
|
360*790*1010 mm
|
95KG
|
|
80 KVA
|
|
|
|
|
100 KVA
|
|
550*850*1500 mm
|
150KG
|
|
120 KVA
|
|
|
|
|
160KVA
|
|
550*950*1700 mm
|
185KG
|
|
200KVA
|
|
650*1000*2100 mm
|
250KG
|
|
Input
|
|
|
||
|
Rated Voltage
|
3×400V(3 Phase + N)
|
|
||
|
Voltage Range
|
305-478VAC ±3%@100% load
190-520VAC ±3%@50% load
|
|
||
|
Frequency Range
|
46-54Hz or 56-64Hz
|
|
||
|
Power factor
|
≥0.99 @ 100% load
|
|
||
|
Output
|
|
|
||
|
Output Voltage
|
3×400V(3 Phase + N)
|
|
||
|
Voltage range (battery mode)
|
±1%
|
|
||
|
Frequency range (synchronization correction range)
|
46-54 Hz or 56-64 Hz
|
|
||
|
Frequency range (battery mode)
|
50 Hz±0.1 Hz or 60 Hz + 0.1 Hz
|
|
||
|
Surge ratio
|
3:1(biggest)
|
|
||
|
Harmonic distortion
|
≤2%THD(Pure Load); ≤5%THD(Pure Load)
|
|
||
|
Conversion time
|
AC to DC
|
0
|
||
|
|
Inverted to bypass
|
0
|
||
|
Waveform (battery mode)
|
Pure sine wave
|
|
||
|
Efficient
|
|
|
||
|
Mains mode
|
90.5%-91.3%
|
|
||
|
ECO mode
|
96.0%
|
|
||
|
Show Description
|
|
|
||
|
LCD or LED
|
Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication
|
|
||
|
Use Environment
|
|
|
||
|
Temperature and humidity
|
Relative humidity 0-95% and temperature 0-40℃ (non-condensing)
|
|
||
|
Noise
|
<60 dB @ 1 meter
|
<65 dB @ 1 meter
|
||
Application
Medical equipment
Manufacturing
Hydropower station
Coal Mining
Gas station
Transportation
