Quick Details
-
Tuner input:
-
Up to 24 FTA Tuners input
-
RF standard option:
-
DVB-T/DVB-C/DTMB/ISDB-T/ATSC 4 Tuners ports per module
-
Tuner in type:
-
4 Tuners ports per module, Up to 6 Modules
-
IP output:
-
Only 1 * MPTS,UDP/RTP
-
Output RF standard:
-
support DVB-T/DVB-C/ATSC/ISDB-T/DTMB option from UI
-
Supporting 1:
-
Two separate ASI input for External TS Multiplexing
-
Supporting 2:
-
PID Remapping & Filtering
-
Software upgrading:
-
By Ethernet interface
-
Management:
-
Web browser via Ethernet interface
-
Application:
-
IPTV & OTT , Digital Signage Digital TV Broadcasting ,Hotel
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Digicast
-
Model Number:
-
DMB-24E
-
Tuner input:
-
Up to 24 FTA Tuners input
-
RF standard option:
-
DVB-T/DVB-C/DTMB/ISDB-T/ATSC 4 Tuners ports per module
-
Tuner in type:
-
4 Tuners ports per module, Up to 6 Modules
-
IP output:
-
Only 1 * MPTS,UDP/RTP
-
Output RF standard:
-
support DVB-T/DVB-C/ATSC/ISDB-T/DTMB option from UI
-
Supporting 1:
-
Two separate ASI input for External TS Multiplexing
-
Supporting 2:
-
PID Remapping & Filtering
-
Software upgrading:
-
By Ethernet interface
-
Management:
-
Web browser via Ethernet interface
-
Application:
-
IPTV & OTT , Digital Signage Digital TV Broadcasting ,Hotel
GoMix Free Software
Including 8K video sources, LIVE mixing and switching, publish locally, LIVE streaming, recording and produce
ISS-7000 Transcoder
IP Output(Max.): 100 Channels
Recording format:
AVI, TS, MP4, MPEG-1,MPEG-2,MPEG-4,WMV
DMB-8800N Ult
4G/3G LTE/WIFI/Internet(Switchable) low power consumption design & Running time up to 5-6 hours by full built-in Lithium battery.
DMB-8900B Decoder
Up to 4K@25/30fps
With HLS, RTMP, RTSP, UDP, HTTP protocol
low Latency: less than 200ms working with DIGICAST encoder over LAN
Professional Receiver DMB-90E
Input: 24*Tuner(DVB-S/S2/C/ATSC optional), without CI slot(FTA),
Output: 256*SPTS or 4*MPTS over IP(GigE)+2*ASI(independent),BISS decryption, Multiplexing, SimulCryption, DVB-CSA scrambling(optional).
TransModulator
It supports various of Tuners and IP input which can be selected respectively from DVB-S/S2, DVB-T/T2, and DVB-C ISDB-T
Multi-Service IP Processor
Data input: 1024*IP(SPTS/MPTS) input over UDP/RTP, 2*GigE ports;
Data output: 16*IP output over UDP/RTP/RTSP, 2*GigE ports; RF output (F type): 16*DVB-C non-adjacent carriers. Capable of Multiplexing and scrambling.DVB Encoder
Support 1080P Full HD. ASI input, 8*SDI or HDM I input. ASI and TSoIP output
Optional---- 1080i/720P HD ,Closed Caption (EAI608/708) ,AC3 pass through, 2 stereo or 4 Mono audio encoding , LC-AAC,HE-AAC(v2).
Modulator
Providing DVB-T and DVB-T2 modulation mode switchable.
4*ASI inputs for multiplexing
RF frequency range: 30MHz~999MHz

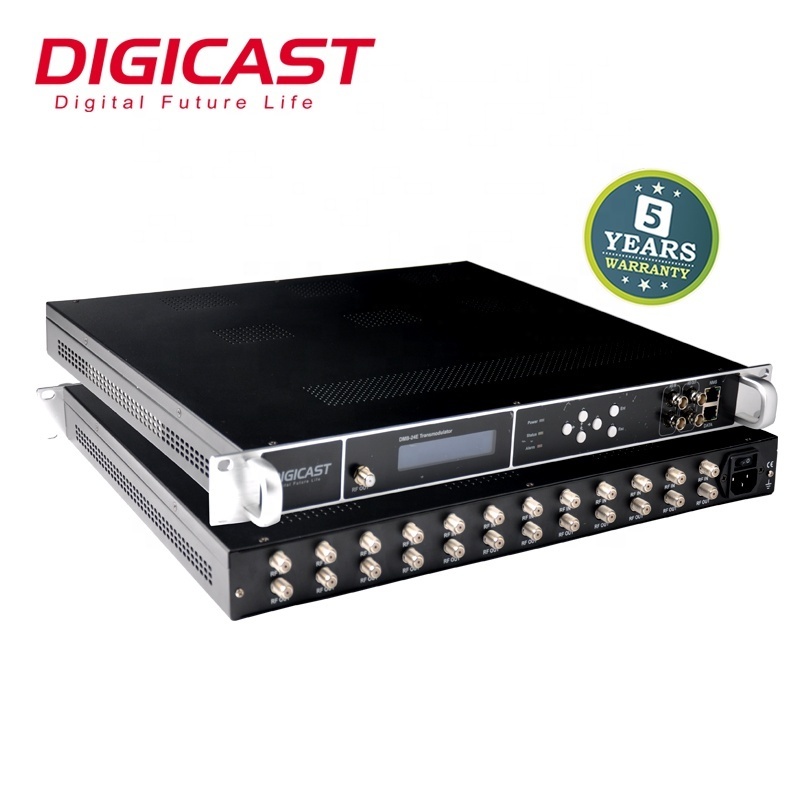

DMB-24E SERIES 4/8/12/16/20/24 Tuner ASI IP to 4*RF ASI IP output
Tuner to RF series :max to 24 tuners input , 6 modules ,each modules 4 tuners
output:RF DVB-T/DVB-C/ATSC/ISDB-T option from UI
DVB-T Standard(EN300744)
FFT mode 2K, 8K
Bandwidth 6M, 7M, 8M
Constellation QPSK, 16QAM, 64QAM
Guard Interval 1/4, 1/8, 1/16, 1/32
FEC 1/2, 2/3, 3/4, 5/6, 7/8
ISDB-T (ARIB STD-B31)
Constellation DQPSK, QPSK, 16QAM, 64QAM
Guard Interval 1/32, 1/16, 1/8, 1/4
Transmission Mode 2K, 4K, 8K
Code rate 1/2, 3/4, 5/6, 7/8
BandWidth 6Mhz
DTMB Standard(GB20600-2006)
Constellation 4QAM, 16QAM, 32QAM, 64QAM
Code rate 0.4, 0.6, 0.8
Guard Interval 420, 595, 945
ATSC Tuners
Frequency range: 50–860 MHz
Key reference specification: ATSC A/53
Input level: -34 to +40 dBmV
Constellation: 8-VSB
Bandwidth: 6MHz
DVB-T/T2 Tuners
Frequency Range: 30MHz-1000Mhz
Bandwidth: 6Mhz, 7Mhz, 8Mhz
Level: -87 ~ -20dBm
Constellation: QPSK, 16QAM, 64QAM, 256QAM (Only DVB-T2)
FEC Demodulation:
DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-T2:1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Guard Interval:
DVB-T: 1/4, 1/8, 1/16, 1/32
DVB-T2:1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64,1/128
ISDB-T Tuners
Input frequency range: 30 ~ 900MHz
Bandwidth: 6MHz
Constellation: DQPSK, QPSK, 16QAM, 64QAM
Interleave: 0, 4, 8, 16
Guard Interval: 1/32, 1/16, 1/8, 1/4
Transmission Mode: 2K, 4K, 8K (FFT)
FEC (Code Rate): 1/2, 2/3, 3/4, 5/6, 7/8
IP Stream Output
DVB-ASI:2 Separate ASI, 75Ω, BNC, 188Bytes
MPEG-2 :TS over DVB-ASI (EN 50083-9)
Selectable:Mirror of One MPTS
RJ45 Port:100/1000M GbE Port,1*MPTS out
DVB-ASI inputs
Connector:BNC female, 75Ω
Signal Level: 200-800mVp-p
Packet Length: 188 bytes
Maximum bit-rate per port: ≤100Mbps
Number of Input Ports: Dual separate ASI ports
Multiplexing
Maximum PID Remapping 180 input per channel
PID remapping by automatically or manually
PSI/SI:
SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert
Accurate PCR adjusting
Max numbers:
4 mux for RF and 1 Mux for 1*MPTS (1*MPTS channels can Separate MUX) IP out in Modulation
1 Mpts IP out In Tuners gateway
