Quick Details
-
Voltage:
-
220V/50HZ or Customized
-
Power:
-
180W
-
Dimension(L*W*H):
-
1250mm*540mm*2000mm
-
Weight:
-
70 KG
-
Product Name:
-
50L Evaporation Flask Double Columns Rotovap Flash Rotary Evaporator
-
Rotary Flask Volume:
-
50L
-
Collection Flask Volume:
-
20L
-
Rotation Speed:
-
0-120rmp
-
Condenser Pipe:
-
Main Condenser and Assistant Condenser Optional
-
Static Temperature Control Range:
-
Water Bath RT - 99℃ and Oil Bath RT - 200℃
-
Glassware Materials:
-
High Borosilicate Glass
-
Heating Bath:
-
Hand Lift
-
Speed Controller:
-
Frequency Converter
-
Customization:
-
Available
Quick Details
-
Applicable Industries:
-
Laboratory, Chemical Industry, Biotechnology
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Mino Science
-
Voltage:
-
220V/50HZ or Customized
-
Power:
-
180W
-
Dimension(L*W*H):
-
1250mm*540mm*2000mm
-
Weight:
-
70 KG
-
Product Name:
-
50L Evaporation Flask Double Columns Rotovap Flash Rotary Evaporator
-
Rotary Flask Volume:
-
50L
-
Collection Flask Volume:
-
20L
-
Rotation Speed:
-
0-120rmp
-
Condenser Pipe:
-
Main Condenser and Assistant Condenser Optional
-
Static Temperature Control Range:
-
Water Bath RT - 99℃ and Oil Bath RT - 200℃
-
Glassware Materials:
-
High Borosilicate Glass
-
Heating Bath:
-
Hand Lift
-
Speed Controller:
-
Frequency Converter
-
Customization:
-
Available

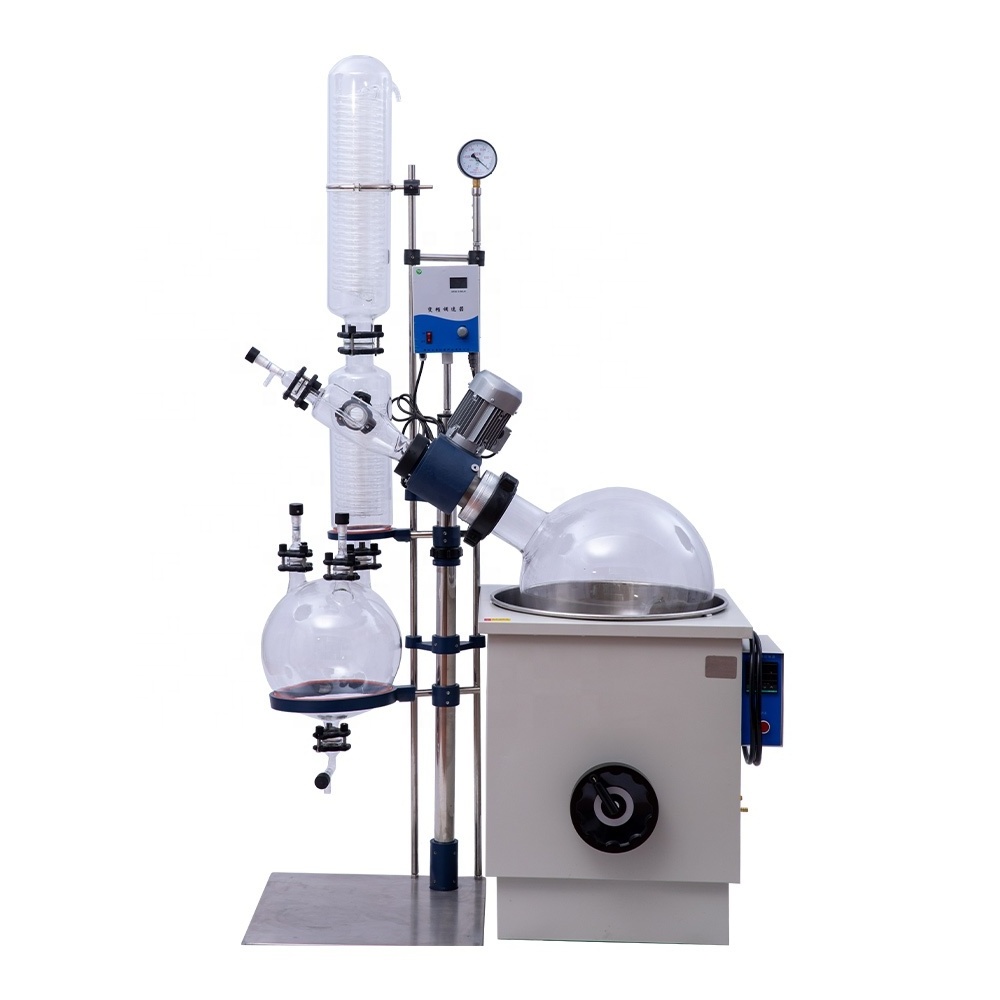

50L Evaporation Flask Double Columns Rotovap Flash Rotary Evaporator
Mino Rotary Evaporators series are perfectly designed for many different distilling processes, from standard evaporation without vacuum control to complex distillation processes with vacuum control. During the development of evaporators, Mino focuses on the features and functions of safety, convenience, and cost savings.
| 0.5L~50L Rotary Evaporator With Hand Lift | ||||||
| Model | RE-1L | RE-3L | RE-5L | RE-10L | RE-20L | RE-50L |
| Rotary Flask | 1L | 3L | 5L | 10L | 20L | 50L |
| Collection Flask | 1L | 2L | 3L | 5L | 10L | 20L |
| Reachable Vacuum | -0.098MPA | |||||
| Motor Power | 40W | 120W | 180W | |||
| Rotation Speed | 0-120rmp | |||||
| Heating Power | 1.5KW | 2KW | 2KW | 4KW | 4KW | 6KW |
|
Overall Dimension (L*W*H)(cm) |
68*30 *83 |
67*32 *94 |
70*33.5 *101 |
105*54 *180 |
115*54 *187 |
125*54 *200 |
|
Static Temperature Control Range |
Water Bath: RT-99℃; Oil Bath: RT-200℃±0.2℃ | |||||
| Voltage | 220V/50HZ or Customized | |||||
| Heating Bath | Stainless Steel; Hand Lift | |||||
| Glass Material | High Borosilicate Glass 3.3 | |||||
