Quick Details
-
Worktable Width:
-
2140mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SY
-
Model Number:
-
SY-L199
-
Warranty:
-
12 Months
-
Product name:
-

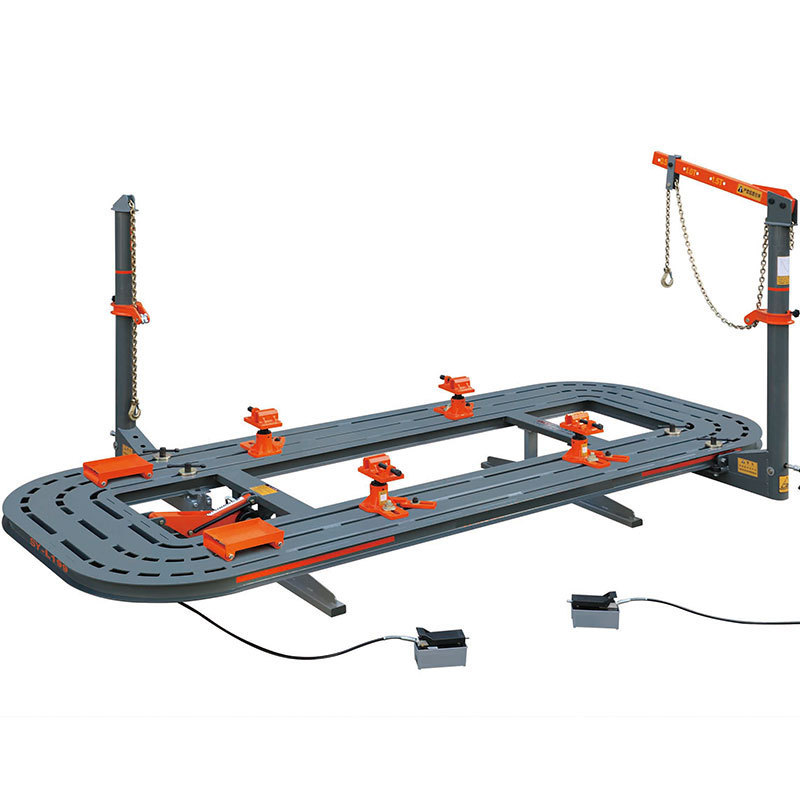

Automatic car chassis straightener bench for body repair equipment
Quick Details
-
Bench Height:
-
520mm
-
Max. Lifting Capacity:
-
3500kg
-
Worktable Length:
-
5200mm
-
Worktable Width:
-
2140mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SY
-
Model Number:
-
SY-L199
-
Warranty:
-
12 Months
-
Product name:
-
Automatic car chassis straightener bench for body repair equipment
Auto Body Collision Repair System Features：
1. Hydraulic tilting lifting platform, auxiliary light and flexible movable legs, make it easier to get on and off the car in any accident.
2. Shaped tubular working platform, width 2140m. The short tube wall is 6mm, and the flat angle is the whole board square splicing, with high flatness and high strength. Multi-station, convenient for fixing various fixtures.
3. The traction tower can rotate 360° along the track of the working platform. The unique roller rotation mechanism makes the movement of the tractor smoother and more flexible.
4. The uniquely designed spiral lifting method of the main clamp allows the screw rod to move up and down while the jaws remain horizontal, and the height can be fine-tuned, allowing for rapid clamping of various vehicles with different chassis heights.
|
Main technical parameter SY-L199
|
|
|
|
Length
|
5200mm
|
|
|
Width
|
2140mm
|
|
|
Height
|
520mm
|
|
|
Pulling capacity
|
100KN
|
|
|
Rated Voltage
|
220/380V
|
|
|
Power supply pressure
|
0.8MPA
|
|
|
Radius of pulling
|
360
|
|
|
Max. load
|
3500KG
|
|
