Quick Details
-
Model Number:
-
AKH die casting mould
-
Product Name:
-
custom made die casting mold
-
Mold frame material:
-
steel
-
Mold cavity material:
-
FSH13
-
Die casting machine:
-
cold chamber die casting machine
-
Surface roughness:
-
Ra0.8~Ra3.2
-
Usage:
-
die casting parts producing
-
Certification:
-
TUV
-
Drawing Format:
-
.pdf .stp or .igs
-
Mould Life:
-
500000-1000000shots
Quick Details
-
Shaping Mode:
-
Die Casting
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AKH or OEM
-
Model Number:
-
AKH die casting mould
-
Product Name:
-
custom made die casting mold
-
Mold frame material:
-
steel
-
Mold cavity material:
-
FSH13
-
Die casting machine:
-
cold chamber die casting machine
-
Surface roughness:
-
Ra0.8~Ra3.2
-
Usage:
-
die casting parts producing
-
Certification:
-
TUV
-
Drawing Format:
-
.pdf .stp or .igs
-
Mould Life:
-
500000-1000000shots
|
Product name:
|
Die casting mold
|
|
Material for core:
|
KD61, DAC, DH-31, 8407, 8418, H13, 3Cr2W8V, 4Cr5MoSiV, 1.2344, W302
|
|
Material for mold frame:
|
Steel
|
|
Processing Craft:
|
Mold Design→Design Confirmation→CNC programme→CNC maching for fixed mold and moved mold→Heat Treatment→CNC precision Machining→Wire EDM-Electric Discharge Machining→Cooling process→Polishing→Assemble→First Test mold
|
|
Roughness for surface:
|
Ra 3.2
|
|
Surface Treatment:
|
Polish
|
|
Quality Assurance:
|
TUV,ISO 9001:2015
|
|
Mainly Testing Facility:
|
Three-dimensional measuring instrument (CMM)
|
|
Standard:
|
DIN, GB, ISO, JIS, BA, ANSI
|

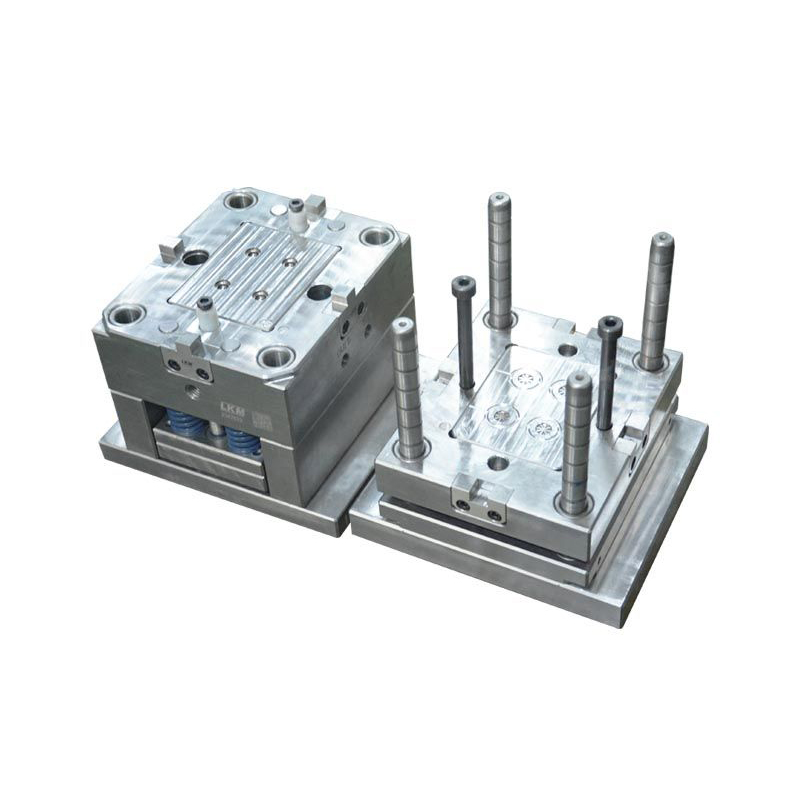

A die casting mold is essentially made of two parts and consists of the fixed (stationary) and the movable (ejector) mold halves.
The stationary die half is mounted on the die casting machine’s fixed fixing plate; the ejector die half is fixed to the movable fixing plate and contains the casting ejector. When ready for casting, the two mold halves are closed and are kept closed on the machine by the die locking force. The contact surface between the two mold halves is called the mold parting or mold parting plane. The opening and closing movements are only applied to the ejector die half. Cavities or undercuts are demolded by mechanically or hydraulically operated core slides (cores).
Introduction to die casting factory:
Aluminum die cast process is a process in which the molten liquid of aluminum alloy is poured into the mold and solidified into a casting under the action of pressure.
Our factory has 280-1260 tons of cold die casting machine, which adopts high-pressure casting. The product produced by us not only have high surface tolerance grade, good roughness and high strength, but also have high productivity,at least 50000 pcs per month,and our product scrap rate is controlled within 2%. At the same time, we are also equipped with a CMM to detect and control the product tolerance and size within the range of customer requirements,and it's toelrance is 0.0005.We also provide assembly service if customers requires.
Our factory also specialized in customized production and processing of various metal parts, such as automobile and motorcycleprecision die castings spare parts, customized led light housings, electrical parts, communication equipment spare parts,fire-fighting accessories, furniture metal accessories, etc. Some of these metal parts will require high precision to meet the product assembly requirements, so our company is equipped with 24 CNC machining centers and more than 22 CNC milling machines and lathes.The minimum accuracy of our CNC machining machine can reach 0.0005.
FAQ
Q:Can I have a sample order for die casting product?
A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q:What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q:Do you have any MOQ limit for die casting product order?
A:Low MOQ, 1pc for sample checking is available.
Q:How do you ship the goods and how long does it take to arrive?
A:We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q:How to proceed an order for die casting product?
A:1.Let us know your requirements or application.
2.We quote according to your requirements or our suggestions.
3.Customer confirms the samples and places deposit for formal order.
4.We arrange the production.
Q:Is it OK to print my logo on Die casting product?
A:Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q:Do you offer guarantee for the products?
A:Yes, we offer 2-5 years warranty to our products.
Q:How to deal with the faulty?
A:Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
