Quick Details
-
Certification:
-
CE
-
Magnet Type:
-
Nd-Fe-B
-
Phase type:
-
3Phase
-
Generator material:
-
Aluminium body+copper wire
-
Rated rotor speed:
-
20-3000RRM
-
Generator type:
-
AC
-
Portection grade:
-
IP 54
-
Winding material:
-
100% cooper
-
Magent:
-
Neodymium
-
Model:
-
neodymium magnet power generator
-
TYPE:
-
permanent magnet generators for sale
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GreeF
-
Model Number:
-
GDF
-
Certification:
-
CE
-
Magnet Type:
-
Nd-Fe-B
-
Phase type:
-
3Phase
-
Generator material:
-
Aluminium body+copper wire
-
Rated rotor speed:
-
20-3000RRM
-
Generator type:
-
AC
-
Portection grade:
-
IP 54
-
Winding material:
-
100% cooper
-
Magent:
-
Neodymium
-
Model:
-
neodymium magnet power generator
-
TYPE:
-
permanent magnet generators for sale

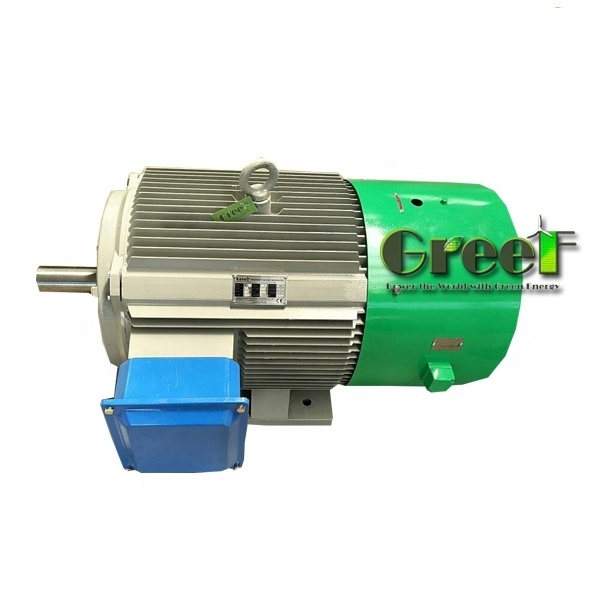

Permanent Magnet Generator
PMG Parameters
|
Rated power |
0.5KW-5000KW |
|
Rated rotate speed |
20-3000rpm |
|
Rated voltage |
48VAC -1140VAC |
|
Wending Method |
Y |
|
Generator type |
Permanent Magnet AC |
|
Number of phase |
Three phase |
|
Classification of degrees |
IP54 |
|
Generator shell material |
Steel |
| 1 | Rare earth Nd-Fe-B permanent magnets |
| 2 | Low Speed |
| 3 | Direct Drive ,no use gear-box |
| 4 | bearing |
| 5 | Power factor close to 1 |
| 6 | Maintenance free , can be used in all environments . |
| 7 | Long life time >20years, could run at high speed 24 hours 365 days . |
| 8 | Multi poles design, improve the frequency and efficiency of rectifiers and inverters. |
| 9 | Customized : Voltage, Speed, Power, Frequency etc. |
| 10 | H class insulation, vacuum pressure impregnation. |
| 11 | Excellent heat dissipation , also can add fan cooling |
GREEF Technical Team can provide the complete ON-grid and Off-grid solution for the project which used our permanent magnet generator .
All the equipments can be produced according to customer's specific requirements
GreeF company supply variety of permanent magnet generators which is suitable for driven by following equipments to
| 1 | Driven by Wind Power --------Wind turbine |
| 2 | Driven by Water Power ------- Hydro generator |
| 3 | Driven by Belt with Motors |
| 4 | Driven by Motor |
| 5 | Dirven by perpetual motion machine |
| 6 | Dirven by test plant |
| 7 | Dirven by yourselves creation |
| 8 | Driven the permanent magnet generator and make it rotate then it can generate power |
GREEF Company provide customized generator according to each customer 's requirements of Voltage, Speed, Power, Frequency etc.
| RATED POWER | RATED SPEED | RATED VOLTAGE | FREQUENCY |
| 0.5KW | 20rpm~400rpm | 12V~220Vac | 10Hz~60Hz |
| 1KW | 20rpm~600rpm | 12V~220Vac | 10Hz~60Hz |
| 2KW | 20rpm~1000rpm | 12V~400Vac | 10Hz~60Hz |
| 3KW | 20rpm~1500rpm | 48V~690Vac | 10Hz~60Hz |
| 5KW | 20rpm~1500rpm | 48V~690Vac | 10Hz~60Hz |
| 10KW | 20rpm~1500rpm | 120V~690Vac | 10Hz~60Hz |
| 15KW | 20rpm~3000rpm | 120 V~690Vac | 10Hz~60Hz |
| 20KW | 20rpm~3000rpm | 120 V~690Vac | 10Hz~60Hz |
| 25KW | 20rpm~3000rpm | 120 V~1140Vac | 10Hz~60Hz |
| 30KW | 20rpm~3000rpm | 120V~1140Vac | 10Hz~60Hz |
| 50KW | 20rpm~3000rpm | 220V~1140Vac | 10Hz~60Hz |
| 80KW | 20rpm~3000rpm | 220 V~1140Vac | 10Hz~60Hz |
| 100KW | 20rpm~3000rpm | 220 V~1140Vac | 10Hz~60Hz |
| 150KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 200KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 250KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 300KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 500KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 700KW | 20rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 800KW | 20rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 1MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 2MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 3MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 4MW | 600rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 5MW | 600rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
1. Greef generator use inner foam , outer Plywooden case.
2. Package size and weight, please contact our sales.
3. Shipping by sea with FCL / LCL to your nearest port
Or Shipping by air to your nearest a irport
Or Shipping by DHL/FedEx/UPS/TNT to your door
If you have any requests in package and shipping , please contact us directly.
All GREEF Generators are 3 years warranty for free, All lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
