Quick Details
-
Model Number:
-
PSSPB
-
Product Name:
-

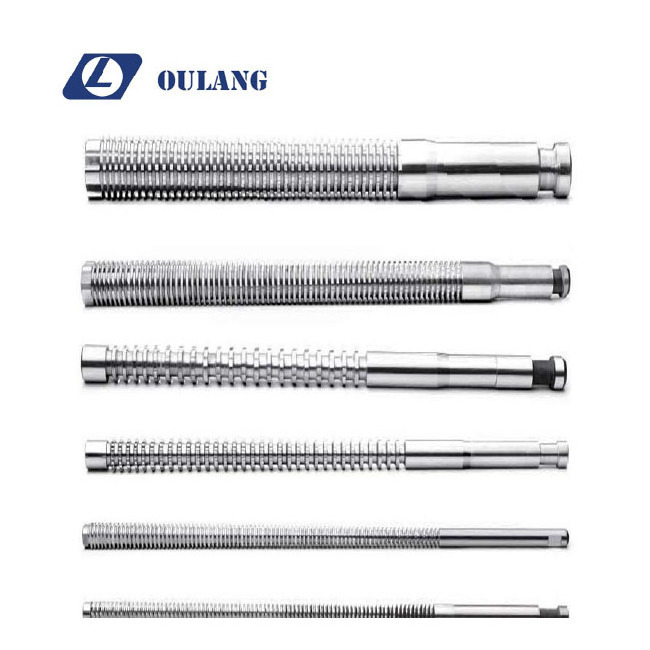

Parallel side spline push broaches
-
Packing:
-
Wooden box or customized
-
Accuracy Grade:
-
AA. A. B
-
Warranty:
-
1 year
-
OEM:
-
Yes
-
Function:
-
Workpiece Broaching
-
Standard:
-
GB/T4329-93
-
Usage:
-
Broaching Hole
-
Involute module:
-
4-20
-
Meterial:
-
HSS PM-HSS Carbide-brazed
Quick Details
-
Type:
-
parallel side spline broaches
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Oulang
-
Model Number:
-
PSSPB
-
Product Name:
-
Parallel side spline push broaches
-
Packing:
-
Wooden box or customized
-
Accuracy Grade:
-
AA. A. B
-
Warranty:
-
1 year
-
OEM:
-
Yes
-
Function:
-
Workpiece Broaching
-
Standard:
-
GB/T4329-93
-
Usage:
-
Broaching Hole
-
Involute module:
-
4-20
-
Meterial:
-
HSS PM-HSS Carbide-brazed
Product Description
Broach Range:
Shape: Square-type、Round-type
Structure：Soild、Brazed、Built-up、Indexable Inserts
Process：Vertical-type、Horizontal-type
Cutting method：Nibbling（Form、Progressed）、Sectionalization、Combination
Materials：HSS、PM-HSS、Carbide-brazed
Worked part：Internal broaches and External broaches
Shape: Square-type、Round-type
Structure：Soild、Brazed、Built-up、Indexable Inserts
Process：Vertical-type、Horizontal-type
Cutting method：Nibbling（Form、Progressed）、Sectionalization、Combination
Materials：HSS、PM-HSS、Carbide-brazed
Worked part：Internal broaches and External broaches
Operating method：Pulling broaches and Pushing broaches
Materials is not the good or not, it is only for suitable or unsuited.
Materials is not the good or not, it is only for suitable or unsuited.
Specification
|
Key Amount (mm)
|
Nominal Diameter (mm)
|
Key Width (mm)
|
Overall Length (mm)
|
Broaching Length (mm)
|
|
4
|
15~22
|
4~8
|
190~330
|
10~50
|
|
6
|
16~70
|
3.5~16
|
190~420
|
10~120
|
|
8
|
36~68
|
6~12
|
255~420
|
18~120
|
|
10
|
26~88
|
3~12
|
|
|
|
12
|
26~125
|
3~18
|
|
|
|
16
|
38~82
|
3.5~7
|
|
30~180
|
|
20
|
92~102
|
6~7
|
|
30~120
|
