Quick Details
-
Brand Name:
-
JAXY
-
Model Number:
-
WTB01
-
Magnification:
-
25x, 25X
-
Objective diameter:
-
100mm
-
Color:
-
Silver
-
Material:
-
Aluminum Magnesium Alloys
-
Name:
-

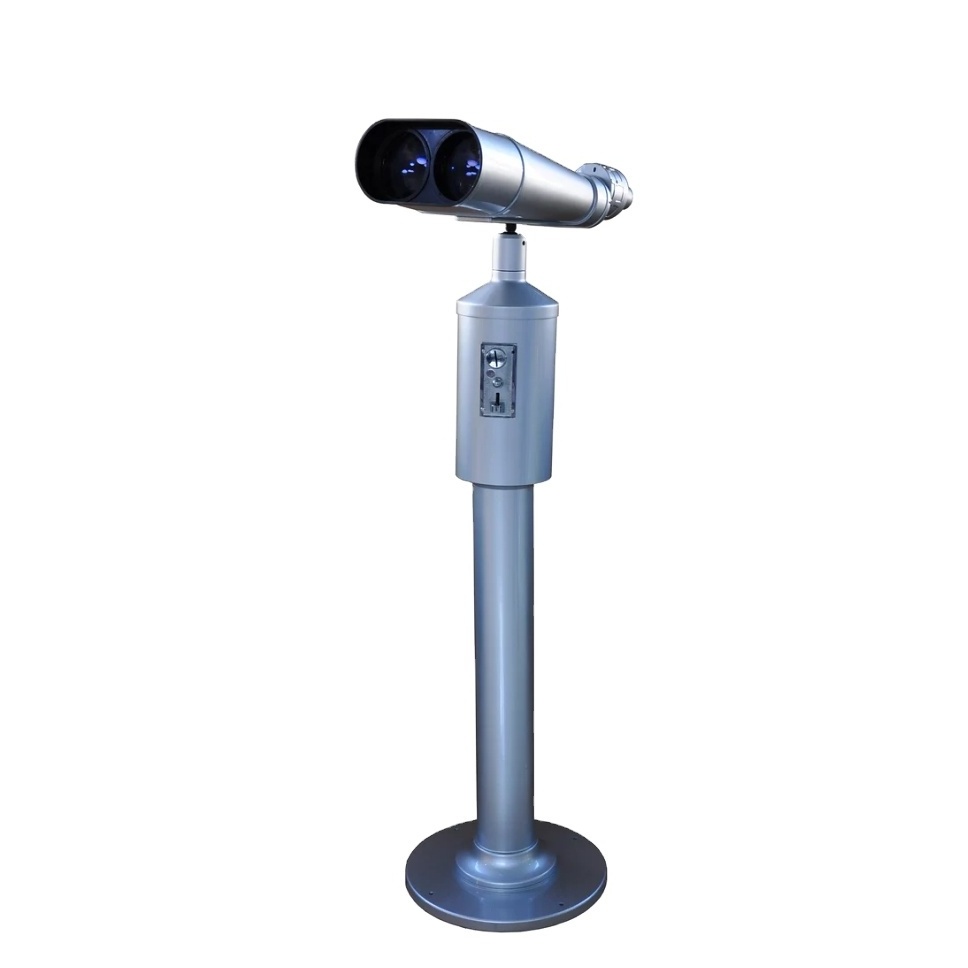

Large Refractor Astronomical Telescope
-
Application:
-
Nature Viewing
-
Type:
-
Coin Binocular
Quick Details
-
Warranty:
-
1 year
-
Certification:
-
BSCI
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JAXY
-
Model Number:
-
WTB01
-
Magnification:
-
25x, 25X
-
Objective diameter:
-
100mm
-
Color:
-
Silver
-
Material:
-
Aluminum Magnesium Alloys
-
Name:
-
Large Refractor Astronomical Telescope
-
Application:
-
Nature Viewing
-
Type:
-
Coin Binocular
May you like
Products Description
|
MAGNIFICATION
|
25x/40x
|
OBJECTIVE DIAMETER
|
100 mm
|
Field of Angle
|
1.3degree
|
|
Exit pupil Diameter
|
2.5mm
|
Eye Relief Distance
|
8.2 mm
|
MINIMUM FOCUS DISTANCE
|
60m
|
|
FIELD OF VIEW(at 1000m)
|
26.2m
|
FIELD OF VIEW(at 1000yds)
|
78.6ft
|
PRISM GLASS MATERIAL
|
BaK4
|
|
FOCUS SYSTEM
|
Individual
|
PRISM SYSTEM
|
Porro
|
WATERPROOF
|
YES
|
Mechanical Characteristics
- Azimuth rang: 0~ 315°
- The elevation angle : up 45 °,down 30 °
- Interpupillary range: 58~72mm
- Overall size(the binoculars): 550(L)x 250(W)x240(H)mm
- Height of complete product: 1.5m
- Weight of complete product: 84 kg
- Environmental Temperature : -20°C~+60°C
- Waterproof : Q/KYD01-2010
Electrical Characteristics
- Power supply two options: DC8.2V,1800mAH lithium battery
- Viewing time : You can set easily any time you want(10s-3600s )
-Under voltage display of DC power supply: Displayed by a DC voltmeter. When DC power supply is used,if the voltage is below 10.5v
, the battery must be replaced.
- Different metal coins can be identified: when the coin is different from the specified coin, the
diaphragm can not be opened and the wrong cion will be rejected.
- Requirement for the specified coin:Diameter: 18mm~31mm Thickness: 1.2mm ~ 3.0mm
- Remember coin type : ≤45 type
- Power consumption: ≤ 50 Thousand pieces
- Azimuth rang: 0~ 315°
- The elevation angle : up 45 °,down 30 °
- Interpupillary range: 58~72mm
- Overall size(the binoculars): 550(L)x 250(W)x240(H)mm
- Height of complete product: 1.5m
- Weight of complete product: 84 kg
- Environmental Temperature : -20°C~+60°C
- Waterproof : Q/KYD01-2010
Electrical Characteristics
- Power supply two options: DC8.2V,1800mAH lithium battery
- Viewing time : You can set easily any time you want(10s-3600s )
-Under voltage display of DC power supply: Displayed by a DC voltmeter. When DC power supply is used,if the voltage is below 10.5v
, the battery must be replaced.
- Different metal coins can be identified: when the coin is different from the specified coin, the
diaphragm can not be opened and the wrong cion will be rejected.
- Requirement for the specified coin:Diameter: 18mm~31mm Thickness: 1.2mm ~ 3.0mm
- Remember coin type : ≤45 type
- Power consumption: ≤ 50 Thousand pieces
Details Images
Packing & Delivery
|
Part
|
Size(cm)
|
Weight(KG)
|
|
Binocular
|
60x22x14
|
24
|
|
Body
|
110x21x21
|
32
|
|
Base
|
46x46x9
|
28
|
