Quick Details
-
Model Number:
-
08HF46D
-
power handling:
-
35W
-
sensitivity:
-
94.1 dB
-
Frequency Range:
-
55-20000Hz
-
Winding depth:
-
0.3inch
-
norminal diameter:
-
8inch
-
coil diameter:
-
1inch
-
max power:
-
70W
-
type:
-
passive
-
OEM order:
-
accept
-
magnet size:
-
134*60*15mm
Quick Details
-
Warranty:
-
3 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
hiwell
-
Model Number:
-
08HF46D
-
power handling:
-
35W
-
sensitivity:
-
94.1 dB
-
Frequency Range:
-
55-20000Hz
-
Winding depth:
-
0.3inch
-
norminal diameter:
-
8inch
-
coil diameter:
-
1inch
-
max power:
-
70W
-
type:
-
passive
-
OEM order:
-
accept
-
magnet size:
-
134*60*15mm
Main Features:
· 1"voice coil,8ohm
· 55-20000Hz frequency response
· 94 dB 1W@1m sensitivity
. 0.3inch winding depth
. Re/Qes/Qts:8ohm/0.79/0.72

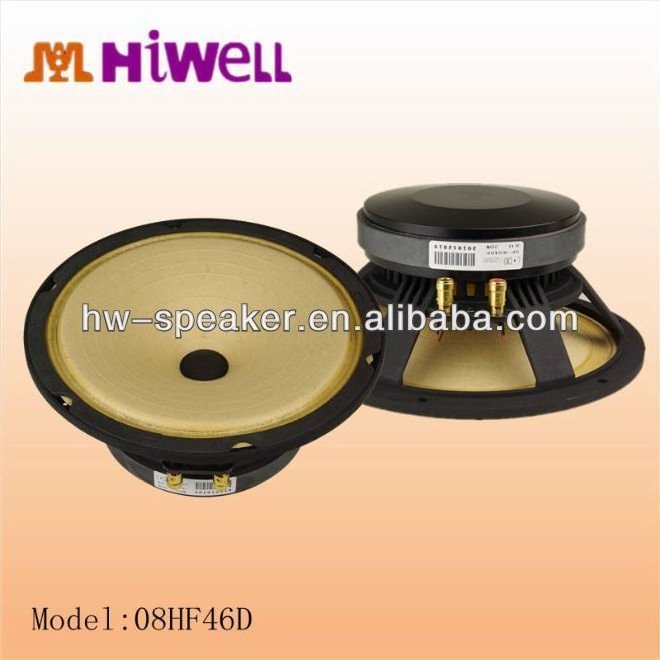

8"home audio hifi woofer
| Specifications | ||
| Nominal Diameter | 210/8 | mm/inch |
| Nominal Impedance | 8 | Ohm |
| Minimum Impedance | 8 | Ohm |
| Power handling | ||
| (50-500Hz) | ||
| Nominall | 35 | Watts |
| Continuous Program | 70 | Watts |
| Sensitivity (1W/1m)3 | 94.1 | dB |
| Frequency Range | 55-20000 | Hz |
| Voice Coil Diameter | 25.5/1 | mm/inch |
| Winding Material | Copper Clad Aluminium | outside |
| Former Marerial | TiL | |
| Winding Depth | 7/0.3 | mm/inch |
| Magnetic Gap Depth | 5/0.2 | mm/inch |
| Flux density | 1.2 | T |
| Thiele-Small parameters4 | ||
| Fs | 55 | Hz |
| Re | 8 Ω | Ohm |
| Qes | 0.79 | |
| Qms | 8.53 | |
| Qts | 0.72 | |
| Vas | 77.7 | liters |
| η0 | 1.6 | % |
| X max | 2 | mm |
| X var | 3 | mm |
| Mms | 10.1 | gr |
| BL | 6 | N/A |
| Le | 0.1 | mH |
| Mounting and Shipping Information | ||
| Blot Circle Diameter | 196-6*5/7.7-6*0.2 | mm/inch |
| Overall Diameter | 210/8 | mm/inch |
| Baffie Cutout Diameter | 185/7.3 | mm/inch |
| Depth | 93/3.7 | mm/inch |
| Flang and Gasket Tickness | 7/0.3 | mm/inch |
| Net Weight | 2.8 | Kg |
| Shipping Weight | 3.50 | Kg |
| Shipping BOX | 220×220×110 | mm |
| Magnet Size | 134*60*15 | mm |
Payment terms
1. By T/T or Western Union
2. T/T 30% deposit, T/T balance before delivery
1. Packaging: Export Carton box
2. Shipping method:
Sample order by express
Produciton order by sea
1.Great CUSTOMER SERVICE and COMMUNICATIONS
2.Fair price & durable quality we provide
3.More than 15 years' R&D team experience
