Quick Details
-
Controller:
-
PG VR2
-
Motor:
-
DC 450W X2PCS
-
Battery:
-
24V 55AH,75AH
-
capacity:
-
180KG
-
function:
-
power recline,tilt,legrest lifting
-
lights:
-
PG lights system with all LED
-
suspention:
-
both front and rear
-
Package:
-
Wood Box
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
wisking, wisking
-
Model Number:
-
wisking 1031, wisking1031
-
Controller:
-
PG VR2
-
Motor:
-
DC 450W X2PCS
-
Battery:
-
24V 55AH,75AH
-
capacity:
-
180KG
-
function:
-
power recline,tilt,legrest lifting
-
lights:
-
PG lights system with all LED
-
suspention:
-
both front and rear
-
Package:
-
Wood Box
electric power wheelchair
power wheelchair
electric wheelchair
handicapped power wheelchair
electric handicapped wheelchair
rehabilitation power wheelchair
full function power wheelchair.
power drive, power recline, power tilt, power lifting legrest. with headrest support, luxury seat, help people enjoy the life, and rehabilitation of the legrest and backrest.
9 inch front wheel, 16inch rear wheel, aluminum rims.
both front and rear suspenstion.
LED lights system.
big battery for optional with 55Ah, 75Ah. long range.
motor optional with 320W and 450W .
Specification
| Overall dimension | 118*72*115cm(not include headrest height) |
| Seat width-depth-height | 45cm-45cm-65cm |
| Front tire/Rear tire | 9" air tire/16" air tire |
| Weight capacity | 180kg |
| Controller | PG(Imported from UK) |
| Motor |
24V/320W*2(450W can be optional) (imported from Taiwan) |
| Battery | 12V/55AH*2(75ah can be optional) |
| Battery weight | 17kg*2 |
| Battery dimension(l*w*h) | 23*13.8*22.6cm*2 |
| Charger | 24V/6A |
| Recharge time | 8-10hrs |
| Power backrest recline angle | 90 to 150 degrees |
| Gross weight | 115kg |
| Net weight(with batteries) | 105kg |
| Package | 1pkg |
| Package size | 86*75*78cm |
| Range | up to 40km per battery charge |
| Incline capability | 12 degrees |
| Max.forward speed | 9-12km/h |
| Qty of 20”FCL | 60pcs |

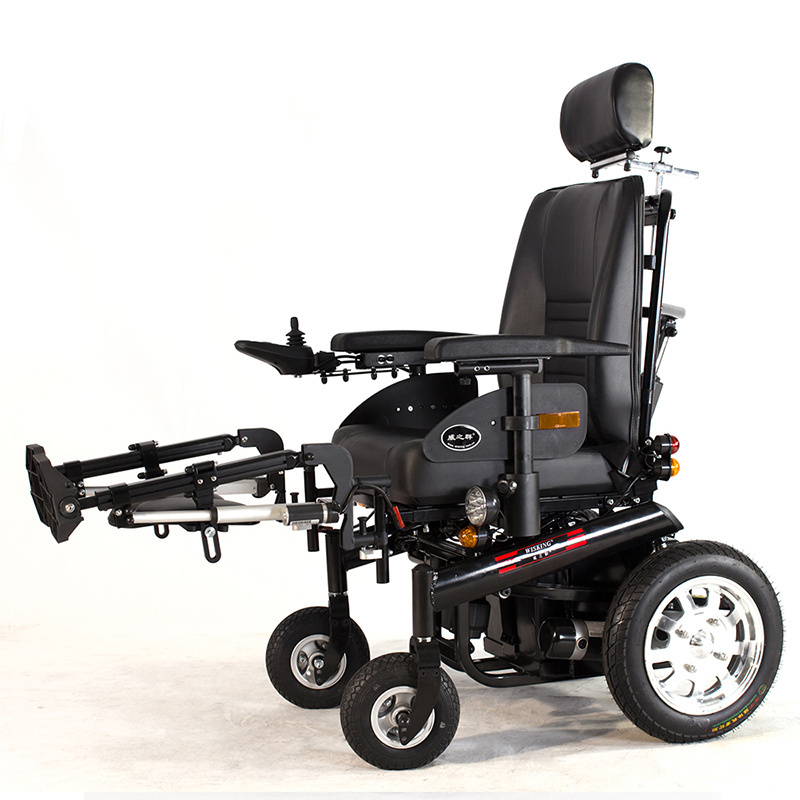

Product pictures
Product details
After Sale Service
ONE-YEARS LIMITED WARRANTY
One years on all structural frame components
ONE-YEAR LIMITED WARRANTY
For one (1) year from the date of purchase, Wisking will repair or replace at our option to tile original purchaser, free of charge, any part or electronic component found upon examination by an authorized representative of Wisking to be defective in material and/or workmanship,
The battery is warranted by the battery manufacturer, The battery is not warranted by Wisking, Warranty service can be performed by Wisking or by an authorized Wisking Provider, Do not return faulty parts to Wisking without prior consent, All transportation costs and shipping damage incurred while submitting parts for repair or replacement are the responsibility of the original purchaser.
ONE-YEAR WARRANTY EXCEPTIONS
TRANSAXLE: In cases where there is an increase in the operational noise level, the warranty does not apply,(The increase in operational noise level usually occurs due to abusive and excessive strain on the scooter,)
MOTOR BRAKE: one-year warranty for the electrical function of the motor brake, Brake pads are a wearitem and are not warranted,
WARRANTY EXCLUSIONS
ABS plastic shrouds and footrest covers (wear items and not warranted)
Batteries (the battery manufacturer provides a limited warranty)
Tires and tire tubes (wear items and not warranted)
Upholstery and seating (wear items and not warranted)
Repairs and/or modifications made to any part of the scooter without specific and prior consent from Wisking
Circumstances beyond the control of Wisking
Damage caused by: battery fluid spillage or leakage, abuse, misuse, accident, or negligence, improper
operation, maintenance, or storage, commercial use or use other than normal
Labor, service calls, shipping, and other charges incurred for repair of the product
THERE IS NO OTHER EXPRESS WARRANTY
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of original purchase and to the extent permitted by law. Any and all implied warranties are excluded, This is the exclusive remedy, Liabilities for consequential damages under any and all warranties are excluded,
Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion of limitation of incidental or consequential damages, So, the above limitation or exclusion may not apply to you.
Service Network
In this market the disabled and the elderly in the domestic, the quality of Wisking's products has the higher reputation and good customer service. We export our products all over the world, and every year, export around 10,000pcs mobility scooters and power wheelchairs. We are also capable of providing OEM and ODM high quality products with the most competitive prices.
