Quick Details
-
Material:
-
Composite Polymer and porcelain
-
Rated Voltage:
-
28KV/36kv
-
Tensile Strength:
-
8KN
-
Product name:
-
Pin Insulator
-
name:
-
Polymer Line Post Insulator Pin Insulators
-
material:
-
silicon rubber and porcelain
-
color:
-
gray
-
rod material:
-
fiber glass
-
standard:
-
IEC61109
-
packing:
-
carton
-
packing size:
-
39*36.5*16cm/4pcs
-
OEM production:
-
accept
-
Port:
-
Ningbo, Shanghai
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YIKA
-
Model Number:
-
FPC-28/FPC-36
-
Material:
-
Composite Polymer and porcelain
-
Rated Voltage:
-
28KV/36kv
-
Tensile Strength:
-
8KN
-
Product name:
-
Pin Insulator
-
name:
-
Polymer Line Post Insulator Pin Insulators
-
material:
-
silicon rubber and porcelain
-
color:
-
gray
-
rod material:
-
fiber glass
-
standard:
-
IEC61109
-
packing:
-
carton
-
packing size:
-
39*36.5*16cm/4pcs
-
OEM production:
-
accept
-
Port:
-
Ningbo, Shanghai

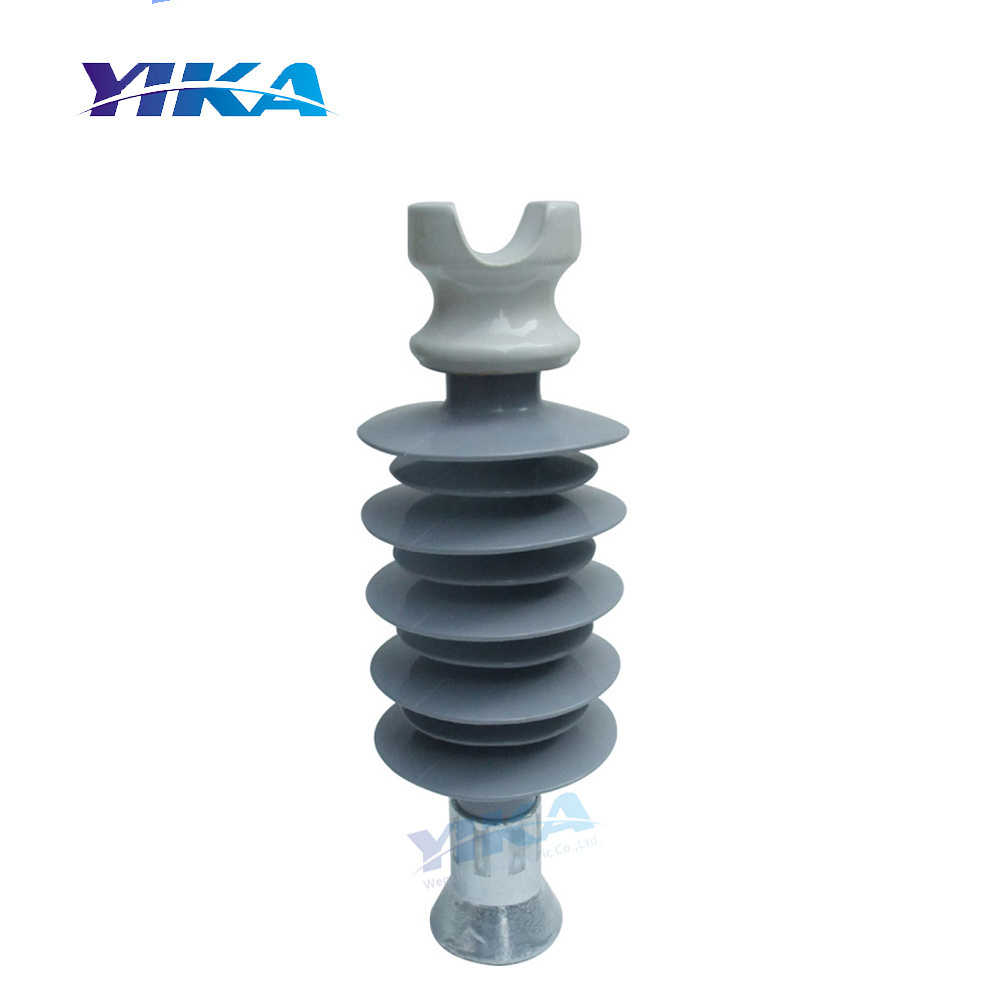

YIKA IEC 28KV 36KV Line Post Insulators Porcelain Ceramics Head Polymer Pin Insulator For Power Systems
The Polymer Insulator are made of glassfiber epoxy core rod, silicone rubber shed and metal fittings.
The silicon rubber shed adopt the whole packing pressure technique, and then to solve the key problem – interface electric spark puncture, which would affect the reliability of composite insulator.
Connection of the glassfiber rod and metal fittings, adopts the pressure welding technique of the international advanced level, and have the full automatic sound wave detection of defects system, high intension, beautiful outline, small volume, light weight, and the metal fitting of galvanization can corrosion prevention and exchange used with porcelain insulator.
This product is reliable structure, can’t damage the core rod, and take full advantage of the mechanical strength.
The dimension can be customized as per client's requirement.
| Key Specifications | FPC-28 | FPC-36 |
| Rating Voltage: | 28KV | 36KV |
| Specialized mechanical tension load: | 8KN | 8KN |
| Structure height: | 375mm | 418mm |
| Min Arc Distance: | 220mm | 260mm |
| Min creepage distance: | 820mm | 980mm |
| Lightning impulse voltage: | 200KV | 220KV |
| Power frequency wet withstand voltage: | 92KV | 112KV |
!!!!!!!!Contact me as below guide, We are glad to give you the best price!!!!!!!!
