Quick Details
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
-
Volume:
-
6.4
-
Color:
-
Per your request
-
Certification:
-
ISO, CCC, SGS, BV Certificate
Quick Details
-
Max. Paving Thickness:
-
optional
-
Weight:
-
25000
-
Place of Origin:
-
Hubei, China
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
-
Volume:
-
6.4
-
Color:
-
Per your request
-
Certification:
-
ISO, CCC, SGS, BV Certificate

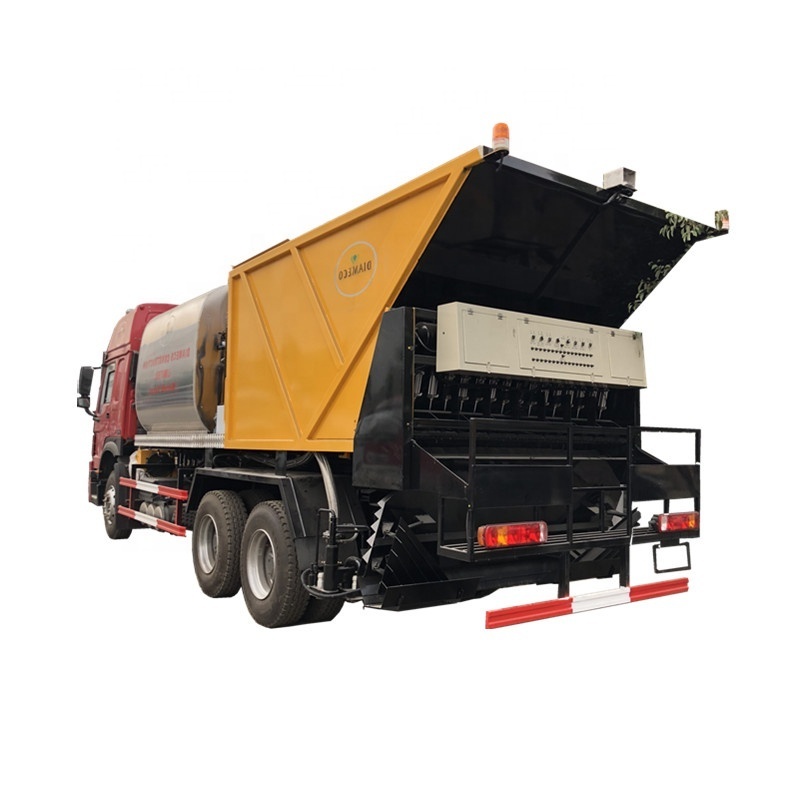

Sinotruk HOWO 6x4 Synchronous chip sealer/asphalt trucks sale
S ynchronous chip sealer technique parameter
|
Product |
HOWO 6x4 synchronous chip sealer |
|||||
|
Vehicle model |
CLW5250TFCZ4 |
|||||
|
GVW(kg) |
25000 |
Curb weight(kg) |
11050 |
|||
|
Rated loading Weight(kg) |
13820 |
Overall dimension ( mm) |
9800×2496×3215 |
|||
|
Chassis Parameter: |
||||||
|
Chassis Model |
ZZ1257M4347E1C |
Tire model |
11.00-20,11.00R20 16PR |
|||
|
Wheelbase (mm) |
3800+1350 |
F/R overhang |
1500/2325 |
|||
|
Engine parameter : |
||||||
|
Engine model |
T10.27-50
|
Manufacturer |
China National Heavy Duty Truck Group Co., Ltd. |
|||
|
Max.Power(kw) |
196 |
Fuel |
Diesel |
|||
|
Chip sealer specification: |
||||||
|
Bitumen Tank Capacity(L) |
4000 |
Chip capacity(L) |
8000 |
|||
|
Bitumen pump model |
QGB950 |
Spray width |
4000-4500mm |
|||
|
Hydraulic pump model |
BRY50-20-16 |
Spray Value |
0.5-3.0(Kg) |
|||
|
Controller system |
CLW-32-01 ( SIEMENS ) |
Asphalt spraying volume |
0.2~ 4.0kg/m² |
|||
|
Generator |
5.5kw gasoline engine generator |
Burner |
Made in Italy |
|||
