Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ECOICE
-
Product name:
-

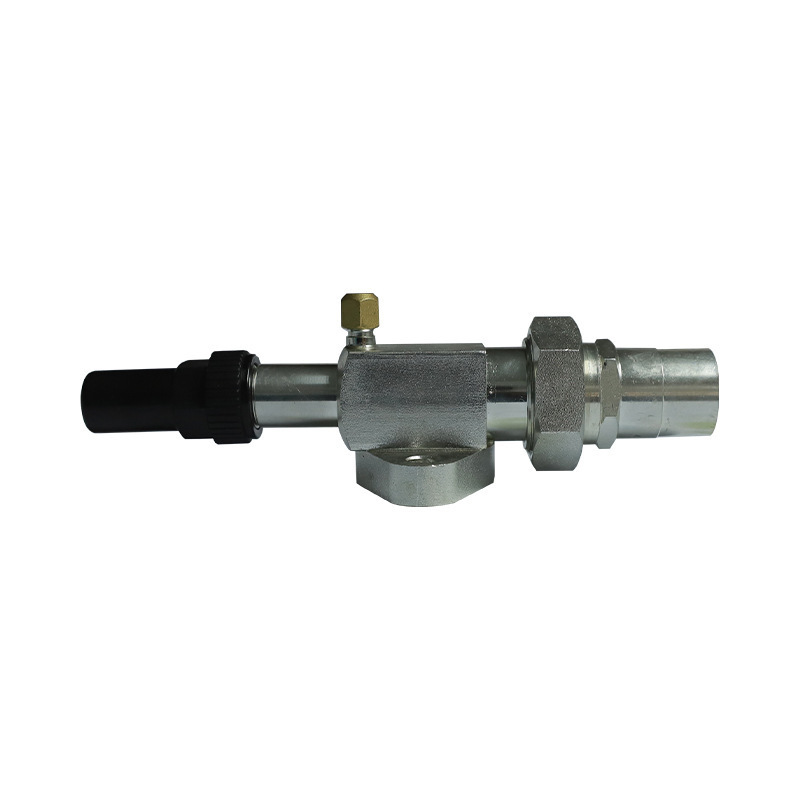

36131519 Shut off valve for refrigeration air conditioner compressor
-
Material:
-
Brass and Stainless Steel
-
Fitting:
-
35mm
-
Installation hole pitch:
-
66mm
-
working air pressure:
-
3.0Mpa
-
hydraulic pressure:
-
4.5Mpa
-
Suitable medium:
-
R22,R134A,R407C,R410A
Quick Details
-
Type:
-
ValvE
-
Application:
-
compressor parts
-
Weight (KG):
-
0.25
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ECOICE
-
Product name:
-
36131519 Shut off valve for refrigeration air conditioner compressor
-
Material:
-
Brass and Stainless Steel
-
Fitting:
-
35mm
-
Installation hole pitch:
-
66mm
-
working air pressure:
-
3.0Mpa
-
hydraulic pressure:
-
4.5Mpa
-
Suitable medium:
-
R22,R134A,R407C,R410A
Product Description
Specification
Used in the refrigerating compressor set(without energy unloading device) to realize the systematic energy regulation.
• Can be used as autometic expansion valve under fixed pressure to maintain the fixed evaporation pressure(temperature).
• Can prevent the refrigerating compressor set from extract pressure decreasing lower than the minimum value.
• Connecting means include flare with thread and ODF copper pipe welding.
• Maximum working pressure: 2.8 MPa.
• Can be used as autometic expansion valve under fixed pressure to maintain the fixed evaporation pressure(temperature).
• Can prevent the refrigerating compressor set from extract pressure decreasing lower than the minimum value.
• Connecting means include flare with thread and ODF copper pipe welding.
• Maximum working pressure: 2.8 MPa.
|
Model
|
Product name
|
Material
|
Nominal Refrigerating Capacity (KW)
|
|
|
Connection Size ODF
Inlet x Outlet |
Pressure Adjustable Range(bar)
|
||
|
|
|
|
R134A
|
R22
|
R404A
|
|
|
||
|
SAV-05
|
Hot Gas Bypass Valve
(Automatic Expansion Valve) |
Brass and Stainless Steel
|
1.5
|
2.8
|
2.1
|
1/4 x 3/8
(6.5 x 10) |
0-7
|
||
|
SAV-08
|
|
|
2.4
|
4.5
|
3.4
|
|
|
||
|
SAV-10
|
|
|
3
|
5.6
|
4.2
|
|
|
||
|
SAV-15
|
|
|
4.2
|
8.4
|
6
|
|
|
||
|
SAV-20
|
|
|
5.7
|
11.2
|
8
|
|
|
||
|
SAV-30
|
|
|
8.5
|
16.8
|
12
|
|
|
||
|
SAV-D10
|
|
|
10.56
|
17.6
|
12.32
|
1/2 x 5/8
(12 x 16) |
0-7
|
||
|
SAV-D20
|
|
|
12.32
|
21.12
|
14.08
|
|
|
||
|
SAV-D30
|
|
|
17.6
|
24.62
|
19.36
|
|
|
||
|
SAV-D40
|
|
|
21.12
|
28.16
|
23.10
|
|
|
||
