1. Performance specifications are maximum theoretical values. Maximum concrete output and maximum pressure on concrete cannot be achieved simultaneously.
2. The special pouring concrete pump for fine stone mortar with structure can realize long-distance transportation of fine stone concrete and mortar in high-rise buildings.
3. Our products have passed the BV and ISO9001 international quality system certification, and the mining concrete pump has passed the mining product safety certification.
4. The distribution valve adopts an advanced S-type pipe valve, which has good sealing performance and a simple and reliable structure.
- Product Details
- {{item.text}}
Quick Details
-
Productivity:
-
25M³/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
IDEAL
-
Weight:
-
2200 kg
-
Dimension(L*W*H):
-
3580*1500*1580mm
-
Product name:
-
concrete pump
-
Keyword:
-
Stationary pumps
-
Application:
-
Construction Engineering
-
Concrete pump type:
-
Static Concrete Pumping
-
Oil capacity:
-
140L
-
Speed:
-
1450r/min
-
Max.Aggregate diameter:
-
≤30mm
-
Voltage:
-
18-30M/pa
-
Oil pump:
-
112MI/R
-
Loading height:
-
1200mm
Quick Details
-
Power Type:
-
Diesel And Electric
-
Max. vertical conveying distance:
-
100M
-
Max. horizontal conveying distance:
-
400M
-
Productivity:
-
25M³/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
IDEAL
-
Weight:
-
2200 kg
-
Dimension(L*W*H):
-
3580*1500*1580mm
-
Product name:
-
concrete pump
-
Keyword:
-
Stationary pumps
-
Application:
-
Construction Engineering
-
Concrete pump type:
-
Static Concrete Pumping
-
Oil capacity:
-
140L
-
Speed:
-
1450r/min
-
Max.Aggregate diameter:
-
≤30mm
-
Voltage:
-
18-30M/pa
-
Oil pump:
-
112MI/R
-
Loading height:
-
1200mm
Product Overview

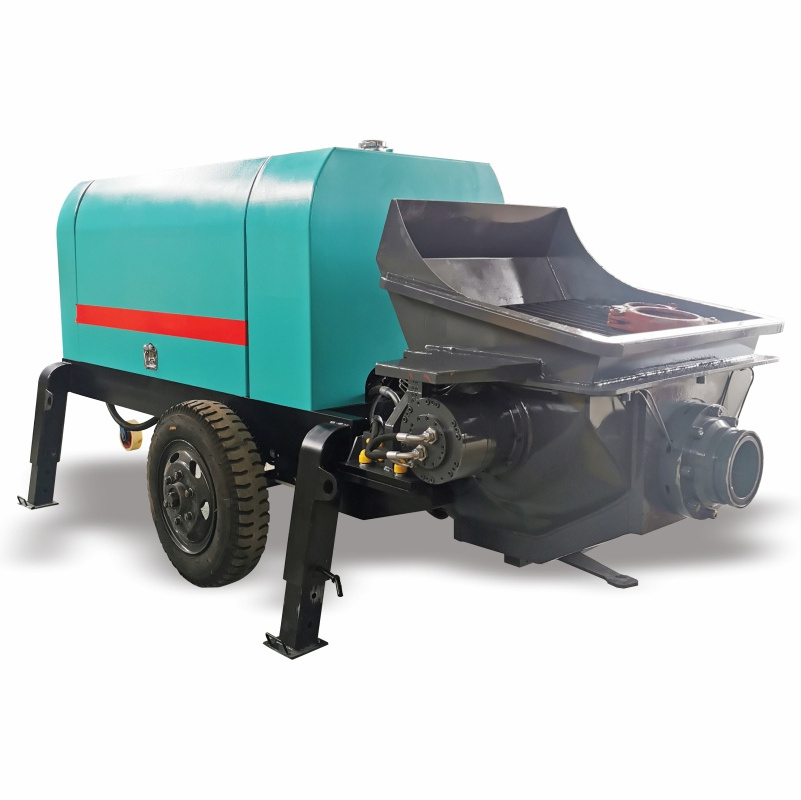

New mini cement concrete pump machine prices diesel engine electric trailer mounted stationary concrete pumps
Our company’s high-performance concrete pumps have been widely used in each country. The products are exported to many countries in water conservancy, electric power, railways, highways, tunnels, mining, national defense, and other industries, and enjoy a high reputation.
Product Paramenters
|
Model
|
CPD40
|
CPD50
|
CPD60
|
|
Transport volume
|
18-20m
³/h
|
25m³/h
|
High voltage: 45m³/h
Low voltage: 60m³/h
|
|
Outlet pressure
|
10-12Mpa
|
11Mpa
|
11Mpa
|
|
Max. aggregate diameter
|
≤30mm
|
≤30mm
|
≤40mm
|
|
Motor power
|
45KW
|
76KW
|
145KW
|
|
Overall Dimension
|
4000*1700*1600mm
|
4100*1800*1700mm
|
6200*1900*2200mm
|
|
1-3mm conveying distance
|
Vertical 30-40m horizontal 80-100m
|
Vertical 50-60m horizontal 150-180m
|
Vertical 100-120m
horizontal 300-450m
|
|
Fine stone conveying distance
|
Vertical 100m
horizontal 200-260m
|
Vertical 120-150m horizontal 300-400m
|
/
|
|
Weight
|
2600KG
|
3000KG
|
5800KG
|
|
Feeding height
|
1200mm
|
1200mm
|
1300mm
|
|
Conveying pipe diameter
|
φ80/100/125mm
|
φ80/100/125mm
|
φ80/100/125mm
|
Details Images
Pure copper motor Powerful, quick start and longer life.
The fan has strong wind, which can stably control the oil temperature below 55°, and the equipment can work continuously, which is
more stable than the water tank.
more stable than the water tank.
Imported oil pump, solenoid valve, well-known brand hydraulic.
The machine is safe and reliable, easy to operate, and equipped with a remote control, which can remotely control the machine.The
machine is equipped with a remote control, remote control work, more labor-saving
machine is equipped with a remote control, remote control work, more labor-saving
The machine has a hand pump, and the lubricating grease every part, making the machine more durable.
Large capacity, more convenient to use and feed.“S” tube valve is used to change direction, which can meet various diameters of
concrete transportation.
concrete transportation.
Brand electric , safer
solid tire
Rugged and easy to turn.
Brand diesel engine with lower fuel consumption and stronger power.
Sensing the pressure of the machine at any time is safe and reliable to use.
Diesel starter key with remote control for remote control.
Accessories complete, without worry after sale.
Concrete pump is suitable for floor heating backfilling, pavement pouring, indoor
construction, railway tunnels, urban subways, etc
Concrete pump construction efficiency is high, easy to move, directly placed on the construction site pouring.
