- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
JHC
-
Weight:
-
163
-
Dimension(L*W*H):
-
770mm*510mm*260mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support
-
Product name:
-
Barcode Label Ribbon Tape Slitting Cutting Machine
-
Usage:
-
slitting and rewinding
-
Packing material:
-
Wooden Case
-
Model:
-
JHC-330
-
Speed:
-
150m/min
-
Control system:
-
Servo Motor
-
Film Width:
-
330mm
-
Suitable material:
-
Thermal transfer ribbon
-
Operation:
-
Demo Video
-
Certification:
-
ISO
Quick Details
-
Voltage:
-
220V
-
Power:
-
400W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JHC
-
Weight:
-
163
-
Dimension(L*W*H):
-
770mm*510mm*260mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support
-
Product name:
-
Barcode Label Ribbon Tape Slitting Cutting Machine
-
Usage:
-
slitting and rewinding
-
Packing material:
-
Wooden Case
-
Model:
-
JHC-330
-
Speed:
-
150m/min
-
Control system:
-
Servo Motor
-
Film Width:
-
330mm
-
Suitable material:
-
Thermal transfer ribbon
-
Operation:
-
Demo Video
-
Certification:
-
ISO
|
Name |

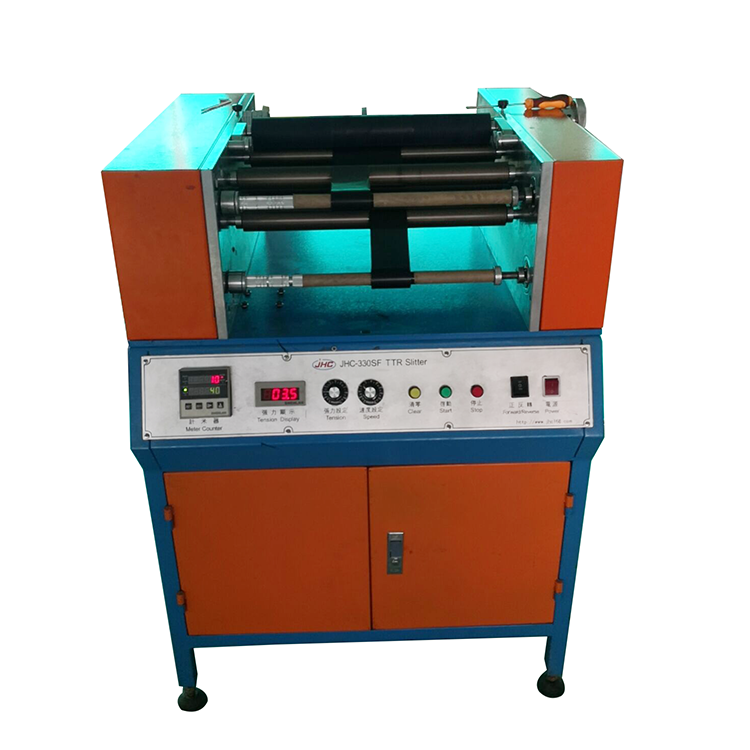

Mini Slitter Thermal Transfer Ribbon Slitter Rewinder Barcode Label Ribbon Tape Slitting Cutting Machine
|
|
Machine Size |
770mm*510mm*260mm |
|
Power supply |
Single phase~220V +ground wire, 50Hz |
|
Power |
400w |
|
Jumbo Roll max diameter and width |
the inner diameter is 1 inch; the max diameter of the jumbo roll is 220mm; the Widest is 330mm. |
|
Max diameter of the finished roll |
the inner diameter is 1 inch & 1/2 inch , minimum width is 25mm, the max diameter is 100mm |
|
Ribbon thickness |
0.0045-0.035mm |
|
cutting speed |
100m/min |
|
Tension System |
Mitsubishi |
|
Tension control |
Manual |
