Quick Details
-
Output Speed:
-
0RPM-14000RPM
-
Warranty:
-
1 years
-
Weight (KG):
-
8
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LUNYEE
-
Ratio:
-
3-512
-
Average life expectancy:
-
>20000h
-
Assembly model:
-
Round flange type / Square flange type
-
application:
-
printing machine, packing machine, CNC tools, sweeping machine
-
Weight (kg):
-
0.4-45
-
Operating temp:
-
-25°C-+90°C
-
Full load efficiency:
-
90%-98%
-
Lubrication type:
-
Lifetime
-
IP:
-
IP65
Quick Details
-
Gearing Arrangement:
-
Planetary
-
Output Torque:
-
MAX. 1800N.M
-
Input Speed:
-
0RPM-8000RPM
-
Output Speed:
-
0RPM-14000RPM
-
Warranty:
-
1 years
-
Weight (KG):
-
8
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LUNYEE
-
Ratio:
-
3-512
-
Average life expectancy:
-
>20000h
-
Assembly model:
-
Round flange type / Square flange type
-
application:
-
printing machine, packing machine, CNC tools, sweeping machine
-
Weight (kg):
-
0.4-45
-
Operating temp:
-
-25°C-+90°C
-
Full load efficiency:
-
90%-98%
-
Lubrication type:
-
Lifetime
-
IP:
-
IP65
Description of planetary gearbox:
es: PLE, PLF
2) Gearbox outline dimension: 60, 80, 90,120, 160
3) Reduction ratio: 3, 4, 5, 7, 10, 9, 12, 16, 20, 28, 35, 40, 50,64, 70, 80, 100, 125, 140, 175,200, 250, 350, 400,500,700,1000.
4) Lubrication: Lifetime lubrication
5) Input speed: 3000— 8000rpm
6) Life: >20, 000 hours
7) Backlash: Stage 1: <10(arcmin)
Stage 2: <15(arcmin)
Stage 3: <22 (arcmin)
8) Operating temperature: -25°C to +90°C
Low backlash Planetary Gearbox for ECMA Delta Servo Motor Main Features:
1. low backlash
2. high output torque-the industry's highest torque density
3. balanced motor pinion
4. high efficiency(up to 98%)
5. ratio 3:1 to 1000:1
6. low noise
7. operable in any mounting positions
8. lifetime lubrication
|
Average lifetime（h)
|
>20000
|
|
Iubricant
|
Efficiency Iubrication
|
|
direction of rotation
|
The input and output to the same
|
|
Protection level
|
Lp65
|
|
Installation
|
arbitrarily
|
|
Gearbox outline dimension
|
60, 80,90, 120, 160
|
|
Reduction ratio
|
3, 4, 5, 7, 10, 9, 12, 16, 20, 28, 35, 40, 50,64, 70, 80, 100, 125, 140, 175,200, 250, 350, 400,500,700,1000.
|
|
Input speed
|
3000— 8000rpm
|
|
Backiash: Stage 1
|
<10 (arcmin)
|
|
Stage 2
|
<15 (arcmin)
|
|
Stage 3
|
<22 (arcmin)
|
|
Operating temperature
|
-25°C to +90°C
|
Note : It's just the typical technical data for you reference, The specification such as voltage, speed, torque, shaft ,speed ratio can customized.
1. standard Lunyee packing.
2. customized packing.
3. unmarked packing.

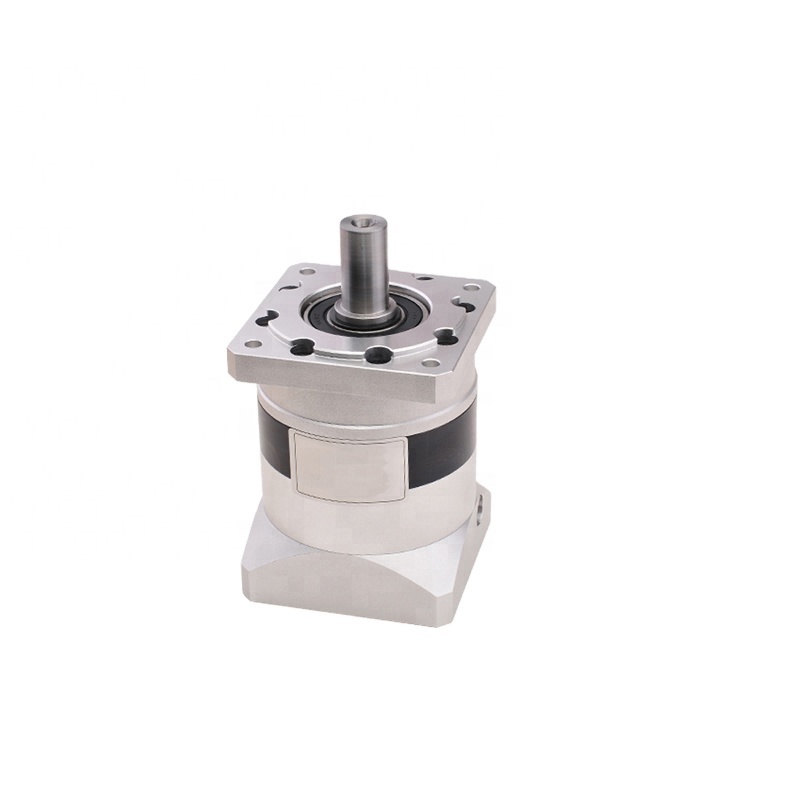

Low backlash Planetary Gearbox for ECMA Delta Servo Motor
Be widely used for materials handing equipment, engineering machinery,metallurgy industry,mining industry,petrochemical industry, construction machinery,textile industry, medical apparatus and instruments, instrument and meter industry,automobile industry,marine industry,weapons industry, aerospace field,and so on.
|
Automatic door
|
Carton sealer
|
DC motor
|
Food machine
|
Printing machine
|
Stepper motor
|
|
AC motor
|
Conveying machine
|
Diesel engine parts
|
Foam machine
|
Packing machine
|
Servo motor
|
|
CNC
|
Crane machine
|
Dyeing machine
|
Lawn mower
|
Paper machine
|
Textile machine
|
2. Professional research and development team
3. Technical support for installation
4. Strict quality control system
5. Customize production
1. Q: What's type of your company.
A: We are manufacturer.
2. Q: what should I provide when I choose gearbox/speed reducer?
A: 1) load condition
2) speed of rotation or speed ratio(combination with combine speed reducer can get extra low out putting rotational speed)
3) work circumstance(temperature, humidity,corrosion etc.)
4) space of installation
3. Q: How long dose it take to finish my order?
A: It depends on your quantity.
4. Q: How can i know the process of my order?
A: Detailed picture of the production process will be sent to you to confirm before shipping.
Consummation QC system makes it possible to offer you reliable quality
