- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
TR.LIGE
-
Model Number:
-
TZ-228PA
-
Dimension (L x W x H):
-
250mm*700mm*433mm
-
Application:
-
Indoor
-
Type:
-
Passive
-
Color:
-
Customizable
-
Material:
-
Birch Plywood/Customizable
-
Function:
-
Voice
-
Size:
-
2*8
-
Power Supply:
-
Other
-
Channel:
-
2 way
-
Packing:
-
Carton Box/Flight Cases/Wooden Shelf
-
Connector:
-
2x Neutrik NL4MP
Quick Details
-
Power:
-
490W --1960w
-
Frequency Range (Hz):
-
70-20000Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TR.LIGE
-
Model Number:
-
TZ-228PA
-
Dimension (L x W x H):
-
250mm*700mm*433mm
-
Application:
-
Indoor
-
Type:
-
Passive
-
Color:
-
Customizable
-
Material:
-
Birch Plywood/Customizable
-
Function:
-
Voice
-
Size:
-
2*8
-
Power Supply:
-
Other
-
Channel:
-
2 way
-
Packing:
-
Carton Box/Flight Cases/Wooden Shelf
-
Connector:
-
2x Neutrik NL4MP
Quality creates the future and restores the most authentic sound.
Professional casting quality, quality reaches the brand
TEL:
13535155768
WEB:
www.baonaaudio.com
Email:
trangrenlige@gmail
.com
|

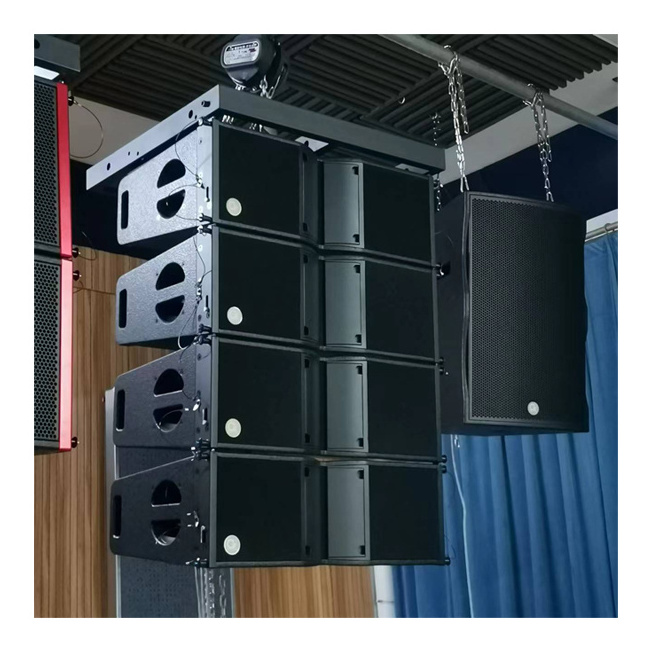

Model：TZ-228PA
|
TQ-2210
|
|
|
Drivers
|
HF:1×1.4"Voice-coil:3"
LF:2×8"Voice-coil:2" |
|
|
Frequency (+/-5dB)
|
70-20000Hz
|
|
|
Dispersion(-6dB)
|
horizontal:110°Splay angle setting:0°-10°(1°increment)
|
|
|
Sensitivity (1m/1W)
|
HF:103dB/LF:96dB
|
|
|
maximum SPL
|
126dB Continuous/129dB Peak
|
|
|
Standard impedance
|
8 Ohm
|
|
|
Rated Power
|
490W AES/1960peak
|
|
|
Recommended AMP
|
1000W/8 Ohm
|
|
|
Crossover Frequency
|
1500Hz
|
|
|
Connectors
|
2x Neutrik NL4MP
|
|
|
Material
|
High-quality double-layer birch plywood box
|
|
|
Mesh surface
|
High-strength steel mesh with hexagonal holes, plus special acoustically transparent sponge mesh
|
|
|
Finish
|
Environmental protection water-based paint
|
|
|
Handing Position
|
Dedicated hoisting system
|
|
|
Dimensions(H×Wx D)
|
250mm×700mm×433mm
|
|
|
Net Weight(Kg)
|
22.5
|
|
|
Gross weight(Kg)
|
24.7
|
|
|
Volume(m³)
|
0.13
|
|
TR.LIGE
professional audio brand was founded in 2013. It is a manufacturer integrating R&D,manufacturing, sales and engineering design services. lts products include:
stage professional speakers, linear array speakers, KTV private room speakers, conference system products,Power amplifier and peripheral electronic products, etc.
Applicable places: performances, performing arts bars, party bars, music restaurants, auditoriums.
Q1:What can you buy from us?
A1: Speaker,loundspeaker ,amplifier,surround,mircophone
Q2:Can I have a sample order for loudspeaker?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: What about the lead time?
A3:Sample needs 7 days, mass production time needs 3-4 weeks for order quantity more than.
Q4:Is the shipping included in the product prices？
A4：NO,s
hipping is calculated separately.
Q5:
What's your payment methods?
A5: By T/T, L/C, paypal, Credit card transfer by ALIBABA trade assurance etc.
A5: By T/T, L/C, paypal, Credit card transfer by ALIBABA trade assurance etc.
Q6:Do you provide OEM and ODM service?
A6:Yes, we have OEM and ODM project experience.
A6:Yes, we have OEM and ODM project experience.
