- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
≤±1%
-
Packaging Type:
-
Box
-
Driven Type:
-
Electric and pneumatic
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONESUN
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
879 KG
-
Marketing Type:
-
New Product 2022
Quick Details
-
Machinery Capacity:
-
2000BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
Liquid
-
Filling Accuracy:
-
≤±1%
-
Packaging Type:
-
Box
-
Driven Type:
-
Electric and pneumatic
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONESUN
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
879 KG
-
Marketing Type:
-
New Product 2022
Product Description
Description：

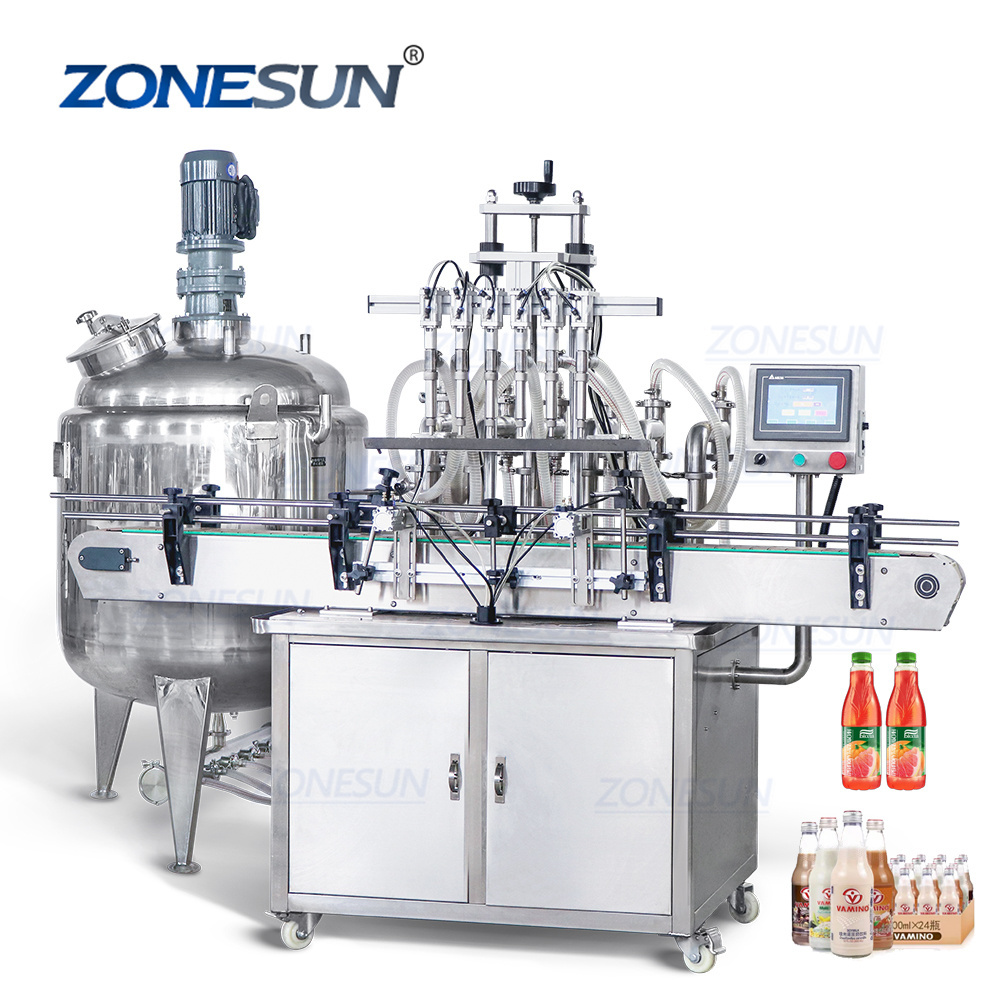

This filling machine is equipped with six-way valve and mixing tank,the machine tank can help to realize the preparatory work of the filling material like emulsifying or mixing.The six-way valve can ensure the material is transported to the filling machine in a closed condition. improves production quality
|
Model
|
ZS-YT6T-6Y
|
|
ZS-YT6T-6Y
|
|
|||
|
Voltage
|
110/220V 50-60HZ 800W
|
|
|
|
|||
|
Filling Range
|
5-100ml/10-300ml/50-500ml/
100-1000ml
/500-3000ml/1000-5000ml
|
|
|
|
|||
|
Working Speed
|
30-40bottles/min
|
|
30-40bottles/min
|
|
|||
|
Filling Accuracy
|
≤±1%
|
|
|
|
|||
|
Air Pressure
|
0.5-0.7MPa
|
|
|
|
|||
|
Size Of Air Compressor Connector
|
φ10mm
|
|
|
|
|||
|
Conveyor length
|
2050mm(standard ) / 3050mm(wider version)
|
|
|
|
|||
|
Conveyor material
|
Plastic(standard) / stainless steel(custom version)
|
|
|
|
|||
|
Package Size
|
About 2110*2010*1000mm （100-1000ML）
|
|
300kg
|
|
|||
|
Package Weight
|
About 476kg（100-1000ML）
|
|
3200x860x1460mm
|
|
|||
|
Machine Model
|
ZS-MB400LH
|
|
|
|
|||
|
Voltage
|
220V 50-60Hz
|
|
|
|
|||
|
Tank Capacity
|
400L(Can be customized)
|
|
|
|
|||
|
Tank Size
|
Diameter: 800mm, H: 1000mm
|
|
|
|
|||
|
Stirring Motor
|
1.1kW
|
|
|
|
|||
|
Rotating Speed
|
40r/min
|
|
|
|
|||
|
Heating Power
|
12kW
|
|
|
|
|||
|
Machine Material
|
304 Stainless Steel
|
|
|
|
|||
|
Package Size
|
About 1300*1100*2160mm
|
|
|
|
|||
|
Gross Weight
|
About 403kg
|
|
|
|
|||
Please send us your request, we can help you customize asuitable machine!
We have other machine, if you want to know,please send us your request, we can help you customize a suitable machine !
Related Products
Company Introduction
Our Service
FAQ
Q1: Are you factory or trading company?
A: We are factory or manufacturer.
Q2: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q3: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
Q4: How could I get the spares on machines?
A:We will send extra sets of easy broken spares and accessories like O ring etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q5: Is there any insurance which I pay for to guarantee I will get the right machine?
A: We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100% safe payment protection. Our factory already highest stars of the grade.
Q6.What's the payment terms and trade terms for new customers?
A: Payment terms:T/T,L/C,D/P,O/A, Western Union etc.
Q7:What's the Minimum Order Quantity and warranty?
A:MOQ:1 set
Warranty:12 months,some customized products will be 24 months.
Q8:Do I need to pay for the extra cost like tax or duty ?
A:Yes, custom duty / tax it's the buyer responsibility need to pay it, the shipping cost it's not included the tax.
