Quick Details
-
Warranty(Year):
-
5-Year
-
Model Number:
-
BB-SDD-60WD1
-
Input Voltage(V):
-
100-277VAC/50-60HZ 200-480VAC
-
Lamp Luminous Flux(lm):
-
13000lm
-
CRI (Ra>):
-
85
-
Working Temperature(℃):
-
-40 to +45℃
-
Working Lifetime(Hour):
-
50,000 hours at 25℃
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BBIER / OEM
-
Application:
-
indoor / outdoor
-
Product name:
-
led parking parking garage canopy lighting retrofit 100w
-
Applications:
-
shoebox ,canopy ,wallpack ,high bay fixture
-
Replacement:
-
HPS 200W
-
Base:
-
E40 E39 E27 E26
-
Warranty:
-
5 years
-
CCT:
-
2700K SW / 3000K WW / 4100K NW / 5000K DW / 5700K CW
-
Beam Angle:
-
120 Deg
-
Dimming:
-
3 in 1 Dimming Driver(1-10VDC,10V PWM signal ,resistance)
-
Luminous Efficacy:
-
>130lm/w
Quick Details
-
Color Temperature(CCT):
-
5000K (Daylight)
-
Luminous Efficacy(lm/w):
-
130
-
Type:
-
Round retrofit kits
-
Warranty(Year):
-
5-Year
-
Model Number:
-
BB-SDD-60WD1
-
Input Voltage(V):
-
100-277VAC/50-60HZ 200-480VAC
-
Lamp Luminous Flux(lm):
-
13000lm
-
CRI (Ra>):
-
85
-
Working Temperature(℃):
-
-40 to +45℃
-
Working Lifetime(Hour):
-
50,000 hours at 25℃
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BBIER / OEM
-
Application:
-
indoor / outdoor
-
Product name:
-
led parking parking garage canopy lighting retrofit 100w
-
Applications:
-
shoebox ,canopy ,wallpack ,high bay fixture
-
Replacement:
-
HPS 200W
-
Base:
-
E40 E39 E27 E26
-
Warranty:
-
5 years
-
CCT:
-
2700K SW / 3000K WW / 4100K NW / 5000K DW / 5700K CW
-
Beam Angle:
-
120 Deg
-
Dimming:
-
3 in 1 Dimming Driver(1-10VDC,10V PWM signal ,resistance)
-
Luminous Efficacy:
-
>130lm/w

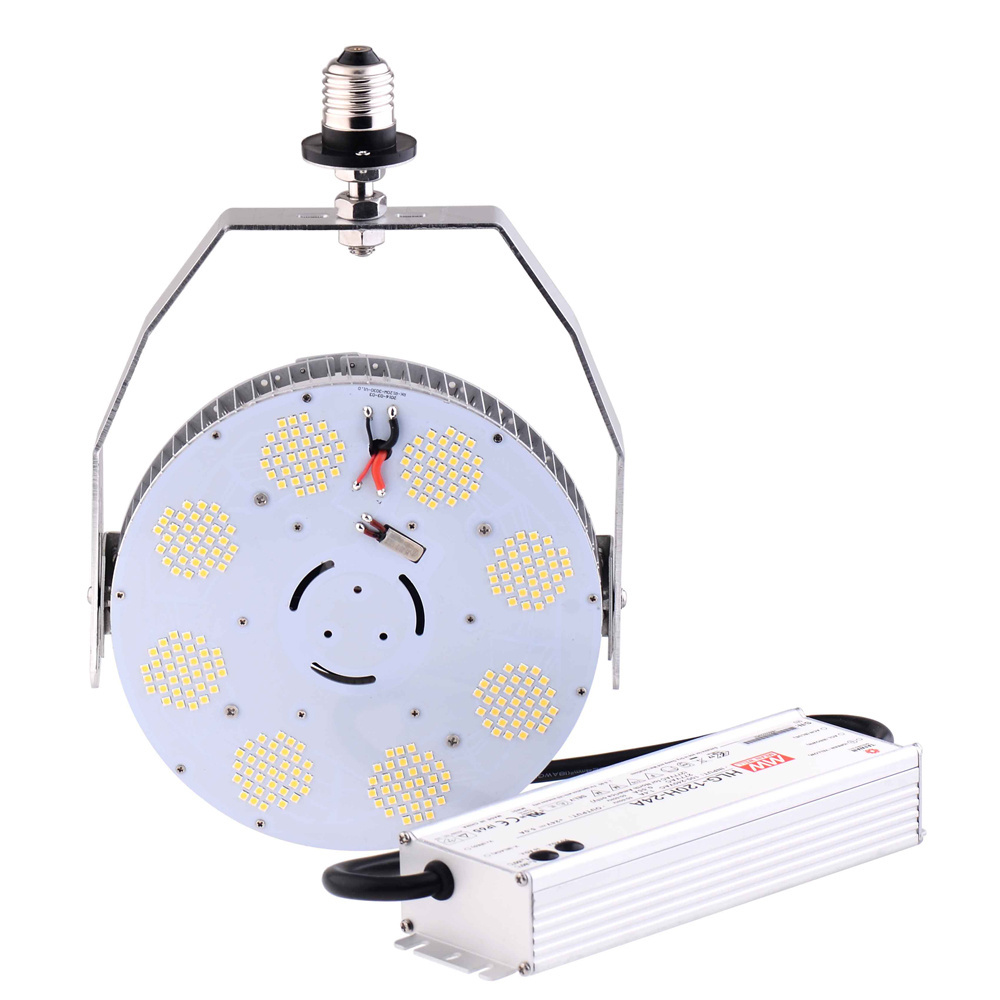

OEM 100 w conversion kit for led parking parking garage canopy lighting retrofit 100w
Benefits
1.MH / HPS / HID / MHL / CFL lamp retrofit.
2.Screw Base Direct Install by bypass ballast.
3.100% Die Casting Heat Sink CM .
4.Universal Base E26 / E27 / E39 / E40.
5.ETL CETL CE ROHS listed.
Features
1. Beam angle:120 degrees.
2. Aluminum fins heat sinks and active air exchange cooling system in order to speed up heat dissipation.
3. It's major to replace the CFL/MH/HID/HPS.
4. Green, energy saving, long and reliable life of 50,000 hours.
5. No RF interference, No IR/UV radiation ,no mercury pollution.
6. Wide colour availability in degrees Kelvin(K),2700-6700K.
7. Streamline exterior design, beautiful appearance.
8. Environment friendly ,energy saving (70~80%).
9. Special circuit design, each LED work separately, avoiding the single broken LED influence problem.
10.New temperature protection module.
Application
1.Area Light / Shoesbox Light.
2.Wall Pack Light / Sports Light / Post Top Light.
3.Canopy Light / Garage Light / Ceiling Light.
4.Flood Light / Pole Light.
5.High / Low Bay Light.
6.Roadway Light / Street Light / Billboard Light.
SPECIFICATIONS
| Power | 60W | 80W | 100W | 120W | 150W | 240W | 300W |
| Model | BB-SDD-60WD1 | BB-SDD-80WD1 | BB-SDD-100WD1 | BB-SDD-120WD1 | BB-SDD-150WD1 | BB-SDD-240WD1 | BB-SDD-300WD1 |
| Replacement | HPS 200W | HPS 250W | HPS 300W | HPS 400W | HPS 60WW | HPS 700W | HPS 1000W |
| Luminous Flux | 7800lm | 10400lm | 13000lm | 15600lm | 19500lm | 31200lm | 39000lm |
|
DLC certification
(only -E39)
|
Y | Pending | Y | Pending | Y | Y | Y |
|
BB-SDD-150WD1-HV&BB-SDD-300WD1-HV
|
|||||||
| Light Source | SMD LED | ||||||
| Luminous Efficacy | >130lm/w | ||||||
| Voltage |
(BB-SDD-XXX)100-277VAC/50-60HZ (BB-SDD-XXX-HV)200-480VAC
|
||||||
| CRI | 85 | ||||||
| Operation Temp. | -40 to +45℃ | ||||||
| CCT | 2700K SW/3000K WW/4100K NW/5000K DW/5700K CW | ||||||
| Life Span | 50,000 hours at 25 ℃ | ||||||
| Dimming |
3 in 1 Dimming Driver(1-10VDC,10V PWM signal ,resistance)
|
||||||
| Beam Angle | 120 ° | ||||||
| PF | >0.95 | ||||||
|
Lamp Base
|
E26 / E27 / E39 / E40
|
||||||
| Warranty | 5 Years | ||||||
DIMENSIONAL DRAWING
LUMINOUS INTENSITY DISTRIBUTION
PROJECTS
By using our 100W E40 retrofit kit to replace 300W Metal Halide bulb for outdoor parking lot shoebox fixtures,the customer is now able to save a lot per month from his electric bill.
Note:
1.Don't take the LED lamp apart.
2.The lamp must work under the right voltage according to the spec fication.
3.Must remove the Ballast,Capacitor,Ignitor before installing our LED Light.
INSTALLATION
Normally. The traditional lamp has the ballast or capacitor or ignitor, like HPS,MH.
