Quick Details
-
Dimension(L*W*H):
-
500*500*800mm
-
Weight (KG):
-
100
-
Power (kW):
-
0.67kw
-
Model:
-
QK-40
-
Saw blade width:
-
5--57mm
-
weight:
-
100Kg
-
Size:
-
500*500*800mm
-
power:
-
0.67kw
-
Wheel diameter:
-
152mm
-
Wheel speed:
-
2800r/min
-
Number teeth ground:
-
15-180 teeth/min
-
Tooth pitch range:
-
4-25mm
-
Maximum width:
-
60mm
-
Certification:
-
CE
Quick Details
-
Year:
-
2021
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QK
-
Dimension(L*W*H):
-
500*500*800mm
-
Weight (KG):
-
100
-
Power (kW):
-
0.67kw
-
Model:
-
QK-40
-
Saw blade width:
-
5--57mm
-
weight:
-
100Kg
-
Size:
-
500*500*800mm
-
power:
-
0.67kw
-
Wheel diameter:
-
152mm
-
Wheel speed:
-
2800r/min
-
Number teeth ground:
-
15-180 teeth/min
-
Tooth pitch range:
-
4-25mm
-
Maximum width:
-
60mm
-
Certification:
-
CE

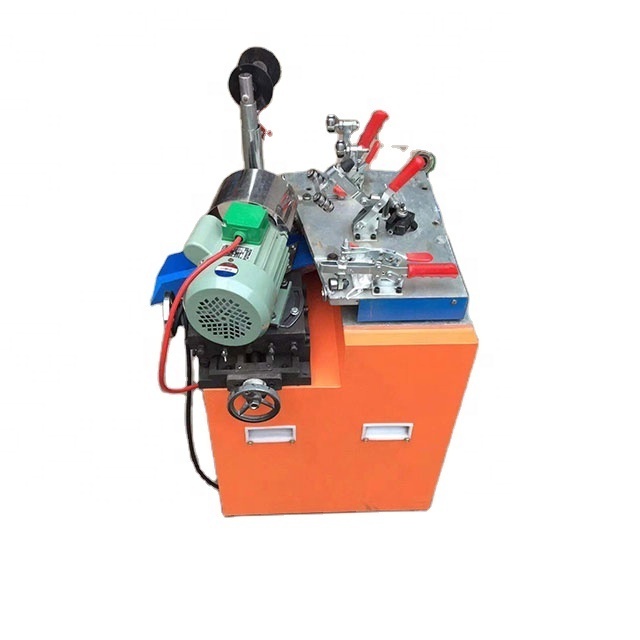

Fully automatic Band saw blade Gear grinding machine Saw blade hit mill facility
Bimetal band saw blade automatic gear grinding machine, also known as automatic band saw blade gear grinding machine, is a device for grinding the saw tooth shape on a band saw blade with high speed and good quality.
This machine tool has compact structure, small size, light weight, and can grind various tooth shapes, such as 3/4 tooth, 4/6 tooth, variable tooth and equal tooth, etc.
The operation of this machine is simple and convenient, which greatly reduces the cost.
Today's saw blade grinder is widely used, and it is an indispensable equipment in mechanical processing, metal band saw steel sawing, saw blade grinding, and other industries.
|
Model |
QK-40 |
|
Saw blade width |
5--57mm |
|
weight |
100Kg |
|
Size |
500*500*800mm |
|
power |
0.67kw |
|
Wheel diameter |
152mm |
|
Wheel speed |
2800r/min |
|
Number teeth ground |
15-180 teeth/min |
|
Tooth pitch range |
4-25mm |
|
Maximum width |
60mm |
Are you manufacture?
Yes. We are one of leading manufacturers
Do you have Stock productions to sell?
Yes, of course. But we also offer OEM service. Please send us some drawing.
What information do you want to know if i want to get a quotation?
a). The model/size of your products.
b). The application for your products.
c). Special package methods if you needs.
d). Raw material.
Do you inspect the finished products?
Yes.Each step of products will be carried out inspection by QC department until shipping
What advantages do you have?
(1) Punctual: Have your orders met with the latest delivery?
We are a manufacturer with so many advanced and new machines. It ensures we have the ability to carry out the production schedual for punctual delivery.
(2) 20year production experience. We have over 20 years exprerience in this industry.
That means we can preview the problems for the orders and production. Therefore, it will make sure to deduce the risk of bad situation to happen.
(3) Point to point service.
There is two sales departments who will serve you from inquiry to products shipped out. During the process, you just need to discuss with him for all the problems and the way sames much times.
1.Supply item design,process design.
2.Help you to chose the fit machine.
3.Making the machine according to your requirement.
Sale Service
1.Acceptance equipment together with you.
2.Help you to make the method statement and the details of the process.
After Service
1.Guarantee for a year.
2.Quality problem,we will send you the accessories.
3.Free repair whole using life(without the freight and accessories charge).
wooden case/ pallet/ cusotmer request
