2. Foam padding as 2nd layer
3. Standard export wooden box as the 3rd layer
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SUPER
-
Voltage:
-
220V/380V, AC 110-240V
-
Weight (T):
-
0.1 T
-
Power (kW):
-
4.5
-
Application:
-
Industry heating furnace
-
Product Name:
-
1700C Gemstone Heating Furnace
-
Model:
-
SP-1700B-4.5L
-
Size Range:
-
Customized
-
Temprature Optional:
-
1000℃ to 1800℃
-
Temp Accuracy:
-
≤15℃
-
Furnace Type:
-
Heat treatment furnace
-
Certification:
-
CE
-
Heating elements:
-
MoSi2 heater
Quick Details
-
Place of Origin:
-
Henan, China
-
Marketing Type:
-
Hot product 2024
-
Core Components:
-
furnace body
-
Brand Name:
-
SUPER
-
Voltage:
-
220V/380V, AC 110-240V
-
Weight (T):
-
0.1 T
-
Power (kW):
-
4.5
-
Application:
-
Industry heating furnace
-
Product Name:
-
1700C Gemstone Heating Furnace
-
Model:
-
SP-1700B-4.5L
-
Size Range:
-
Customized
-
Temprature Optional:
-
1000℃ to 1800℃
-
Temp Accuracy:
-
≤15℃
-
Furnace Type:
-
Heat treatment furnace
-
Certification:
-
CE
-
Heating elements:
-
MoSi2 heater
Products Description

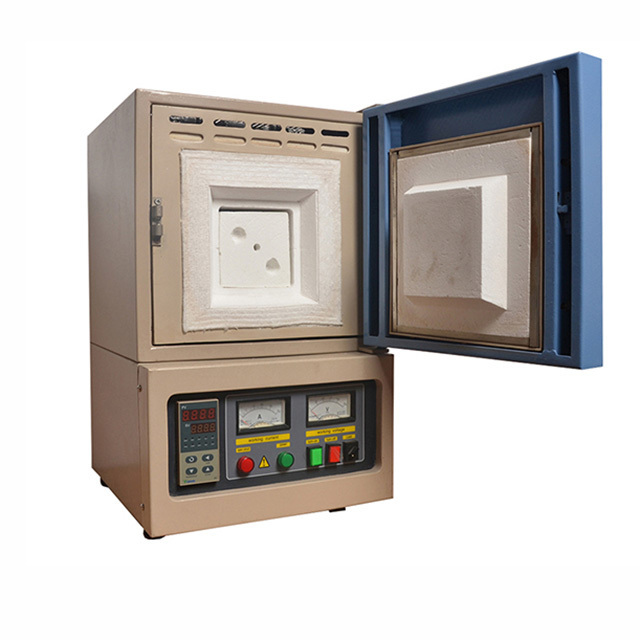

Gemstone Heat Treatment Heating Furnace Introduction:
The Gemstone Heat Treatment Heating Furnace is small in size(for mmall size), which is equivalent to the size of a computer mainframe. 1700 degree Gemstone Heat Treatment Heating Furnace has a double-shellstructure and the furnace is made of alumina polycrystalline fiber material. The double-layer furnace shell is equipped with an air-cooling system, which can quickly and gently rise and fall.
1) Compact and humanization design;good appearance;easy to move;energy saving and environmental protection
2) 1700 degree Gemstone Heat Treatment Heating Furnace shell structure: double shell structure with air-cooled system to ensure the furnace shell close to room temperature when the equipment is running and avoid accidents.
3)Laboratory furnace Temp Control mode: 30 segment program temperature control intelligent PID adjustment;with fuzzy control and instrument self-tuning function; automatic heating,;automatic cooling.
4) Temperature control safety: with over-temperature protection; broken even protection; leakage protection;equipment operation safe and reliable.
5) Gemstone Heat Treatment Heating Furnace c hamber material: alumina microcrystalline fiber;uniform temperature field;good insulation properties.
Product Paramenters
|
Max.temperature and name
|
1700 degree Gemstone Heat Treatment Heating Furnace
|
|
Working temperature
|
0-1600C
|
|
Furnace Chamber size(DWH)mm
|
150*150*200 or as your requirement
|
|
Heat element
|
MoSi2 heater
|
|
voltage and frequency
|
380V 50Hz/60Hz
|
|
Heating rate
|
0-20C/min
|
|
Temperature accuracy
|
±1℃
|
|
Thermocouple
|
B type
|
|
Temperature control
|
Gemstone Heat Treatment Heating Furnace adopt international advanced temperature controller, with 30-50 programmable PID self-tuning, automatic temperature rise,
automatic temperature drop, no duty. |
|
Appearance design
|
Gemstone Heat Treatment Heating Furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology.High temperature resistance, oxidation resistance, acid and alkali resistance.Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use.
|
|
Furnace shell structure
|
Gemstone Heat Treatment Heating Furnace ovenshell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.
|
|
Temperature control security
|
Gemstone Heat Treatment Heating Furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe.
|
|
Furnace Chamber material
|
1700 degree Jewelry burnout oven adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, hightemperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric Laboratory Ceramic Oven.
|
|
|
|
|
Sandard accessories
|
Crucible tongs 1pc, Thermal gloves 1 pair,User manual 1 pc,other small tools for assembly furnace
|
|
Other temperature options
|
1200C,1400C,1700C,1800C
|
|
Furnace chamber standard size
|
100*100*100mm,150*150*200mm,200*200*300mm,300*300*400mm or other OEM size
|
|
Waranty
|
One year
|
Details Images
Product packaging
How to pack to ensure the saftey of SUPER
Gemstone Heat Treatment Heating Furnace
?
1. Soft plastic as 1st layer
Product Show
Our Advantages
Why choose us ?
♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
♥ We supply good service after sale, you can be assured about that
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
♥ We supply good service after sale, you can be assured about that
FAQ
1.
Which procedure to secure your furnace Quality?
Our company has own research & development and production base, the lab furnace have been calibrate by central laboratory professionals before before they leaves the factory, ensure the accuracy of test results and authority.
2. How about your company product after-sales service system?
Product after-sale guarantee period is 12 months,and we can provide lifetime repair guarantee.We have agents in some
countries,they can provide door-to-door service.If there is no agent,our professional pre-sales and after-sales department can reply you within 24 hours for any technical problems.
3. Our country's power supply and plug are different, how do you solve it?
We can according to different countries and the power plug, equipped with transformer and plug that in accordance with your local
requirement.
4. Payment methods?
T/T, L/C, D/P and so on
5. Packing method?
Our furnace is pakced with strong export wooden box packaging
6. Main export market?
Now our products have been exported to North America, Europe, southeast Asia, South America and other countries.
Our company has own research & development and production base, the lab furnace have been calibrate by central laboratory professionals before before they leaves the factory, ensure the accuracy of test results and authority.
2. How about your company product after-sales service system?
Product after-sale guarantee period is 12 months,and we can provide lifetime repair guarantee.We have agents in some
countries,they can provide door-to-door service.If there is no agent,our professional pre-sales and after-sales department can reply you within 24 hours for any technical problems.
3. Our country's power supply and plug are different, how do you solve it?
We can according to different countries and the power plug, equipped with transformer and plug that in accordance with your local
requirement.
4. Payment methods?
T/T, L/C, D/P and so on
5. Packing method?
Our furnace is pakced with strong export wooden box packaging
6. Main export market?
Now our products have been exported to North America, Europe, southeast Asia, South America and other countries.
