Quick Details
-
Tube Length(ft):
-
2, 3, 4, 8
-
Color Temperature(CCT):
-
3000~6500K
-
Product Weight（kg）:
-
0.8
-
Input Voltage(V):
-
AC 85~265V 50-60Hz
-
Working Temperature(℃):
-
-40 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Bohan
-
Product Name:
-
T8 LED Tube Light
-
Power:
-
9w 13w 18w 24w 36w 72w
-
Material:
-
Aluminum+PC Cover
-
Length:
-
1ft/2ft/3ft/4ft/5ft/8ft
-
Size:
-
32mm(w)*28mm(H)
-
Installation:
-
Ceiling Mounted
-
Beam angle:
-
120 Degree
-
LED Light Source:
-
Epistar SMD 2835
-
Usage:
-
Commerical+ Household Lighting
Quick Details
-
Warranty(Years):
-
3
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Lamp Body Material:
-
Aluminum+Plastic
-
Tube Length(ft):
-
2, 3, 4, 8
-
Color Temperature(CCT):
-
3000~6500K
-
Product Weight（kg）:
-
0.8
-
Input Voltage(V):
-
AC 85~265V 50-60Hz
-
Working Temperature(℃):
-
-40 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Bohan
-
Product Name:
-
T8 LED Tube Light
-
Power:
-
9w 13w 18w 24w 36w 72w
-
Material:
-
Aluminum+PC Cover
-
Length:
-
1ft/2ft/3ft/4ft/5ft/8ft
-
Size:
-
32mm(w)*28mm(H)
-
Installation:
-
Ceiling Mounted
-
Beam angle:
-
120 Degree
-
LED Light Source:
-
Epistar SMD 2835
-
Usage:
-
Commerical+ Household Lighting
Product installation

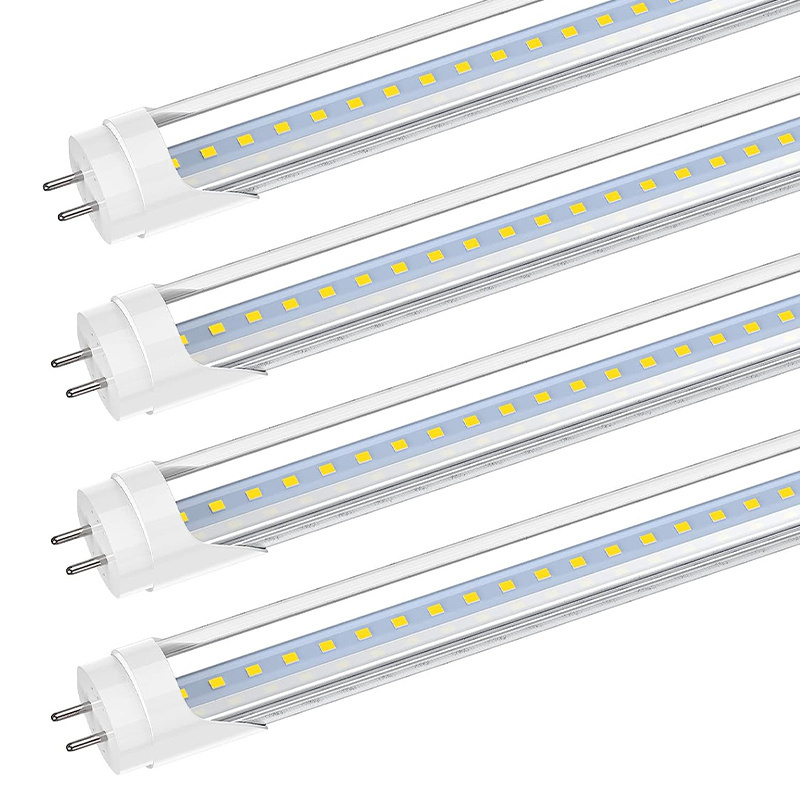

T8 LED light tube
Factory wholesale
custom
1ft 2ft 3ft 4ft 5ft
High quality e
nergy saving
fluorescent
aluminum plastic T8 led light tube
Why choose
Aluminum plastic T8 led light tube
1. Replace the traditional old T8 glass tube.
3.
LED light source, higher light efficiency, low light decay, high display finger, good lighting environment.
Replace the old T8 light tube
The new generation of LED energy-saving lamp tubes, aluminum-plastic LED T8 lamp tubes, longer service life and higher safety than the old glass lamp tubes, plastic lamps and fluorescent lamps.
1/2 aluminum + PC cover model
Thickened aluminum model, good heat dissipation effect.Lamp cover can choose white or transparent cover
Transparency cover
When the transparent cover opens the light, you can see the LED chip inside, and the brightness is stronger.
Milky white cover
When the lamp is turned on, the light is evenly distributed, and the light is soft and not dazzling.
Product Usage
Product material
The product consists of five main parts. Aluminum model + PC cover + LED chip + driver + G13 plug.
* Aluminum model
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
* P lastic cover
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
* Constant current drive
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
* LED SMD 2835 chip
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Multi specification plug
Full series T8 lamp holder custom production, G13/FA8/R17D/ rotating G13 plug. Contact us for details
Product attributes
Product Parameter
The power of LED tubes varies with length. The following parameters are for reference only.
|
Product name
|
T5 led light tube
|
|
Material
|
Aluminum+PC+Chip+drive
|
|
Power
|
9w / 12w / 18w / 24w
|
|
Voltage
|
AC 100~277V 50-60Hz
|
|
Light source
|
LED chip SMD 2835
|
|
CCT
|
3000K/4000K/6000K
|
|
IP Rating
|
Protection class IP20
|
|
Ambient
|
Operating temperature -30~50℃
|
|
Model No
|
Power
|
Lumen
|
Chips (quantity)
|
Product size
|
|
S - T8 - G13 - 06
|
9W
|
900Lm
|
2835 (48Pcs)
|
600*28*32mm
|
|
S - T8 - G13 -09
|
12W
|
1200Lm
|
2835 (72Pcs)
|
900*28*32mm
|
|
S - T8 - G13 -12
|
18W
|
1800Lm
|
2835 (96Pcs)
|
1200*28*32mm
|
|
S - T8 - G13 -15
|
24W
|
2400Lm
|
2835 (120Pcs)
|
1500*28*32mm
|
|
S - T8 - G13 -24
|
36W
|
3600Lm
|
2835 (192Pcs)
|
2400*28*32mm
|
|
Model No
|
Power
|
Lumen
|
Chips (quantity)
|
Product size
|
|
D - T8 - G13 - 06
|
18W
|
2160Lm
|
2835 (96Pcs)
|
600*28*32mm
|
|
D - T8 - G13 -09
|
24W
|
2880Lm
|
2835 (144Pcs)
|
900*28*32mm
|
|
D - T8 - G13 -12
|
36W
|
4320Lm
|
2835 (192Pcs)
|
1200*28*32mm
|
|
D - T8 - G13 -15
|
48W
|
5760Lm
|
2835 (240Pcs)
|
1500*28*32mm
|
|
D - T8 - G13 -24
|
72W
|
8640Lm
|
2835 (384Pcs)
|
2400*28*32mm
|
Production snapshot
About us
Bohan
lighting
technology Co. LTD
Founded in 2010, Bohan Lighting Technology Electronics Factory is a professional LED product manufacturer from Zhongshan, China.The company set design, research and development, production, sales as one.
The factory mainly produces and sells led fluorescent lamp/three-proof lamp/emergency lamp/plant lamp and other LED products, involving commercial lighting, engineering lighting, professional lighting and other fields.
We have our own professional team, can provide you with a full range of services, such as regular production, product
customization, sample proofing, logistics and other EDM/OEM services.
customization, sample proofing, logistics and other EDM/OEM services.
FAQ
Q1.Can you give me a sample order for LED lights?
A1.Yes, we welcome sample ord
Q2.What about lead time?
A2.Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more thaner to test and check quality. Mixed samples are acceptable.
Q3.How do you deliver the goods? How long will it take to get there?
A3.We usually ship by DHL, UPS, FedEx or TNT.It will take 3-5 weeks to get there.You can choose to ship it by sea or air
Q4.How to order LED lights?
A4.Firstly let us know your requirements or applicationSecondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q5.How do you handle the failure?
A5.Firstly. Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly. during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A2.Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more thaner to test and check quality. Mixed samples are acceptable.
Q3.How do you deliver the goods? How long will it take to get there?
A3.We usually ship by DHL, UPS, FedEx or TNT.It will take 3-5 weeks to get there.You can choose to ship it by sea or air
Q4.How to order LED lights?
A4.Firstly let us know your requirements or applicationSecondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q5.How do you handle the failure?
A5.Firstly. Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly. during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
