Quick Details
-
Package:
-
Plastic Case
Quick Details
-
Output:
-
10T
-
Stroke:
-
18-26mm
-
Nut range:
-
13-46mm
-
Package:
-
Plastic Case
Product Description
Function：

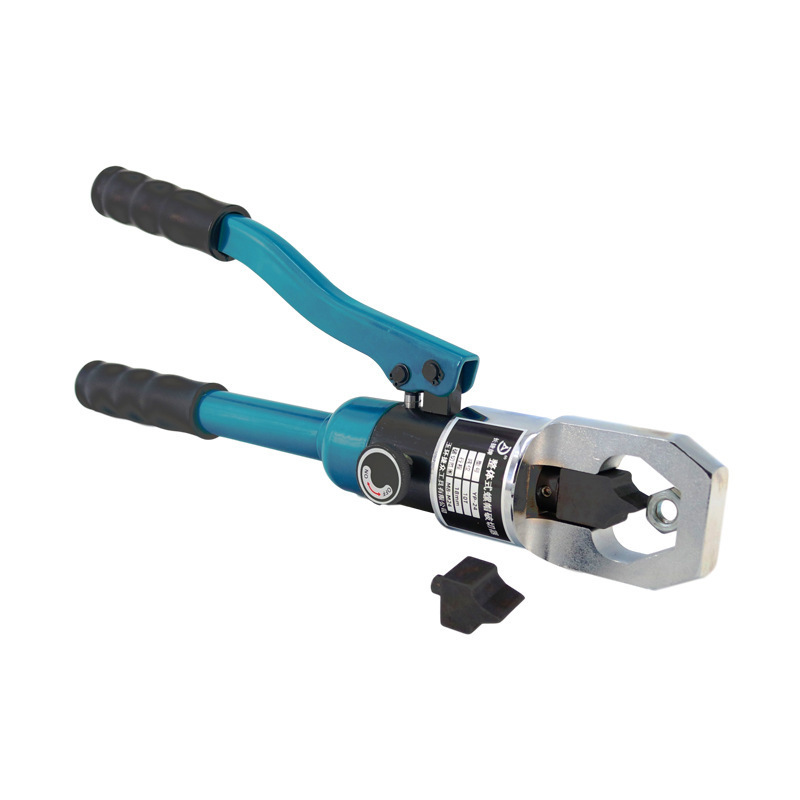

1.This screw cutter is the most effective tool when the screw is rusted
2.Unique angled head that allows direct contact with the workpiece.
3.Single-acting, spring return cylinder.
4.Applications : servicing trucks, plumbing industry, tank cleaning, petrochemical, steel construction and mining.
5.Select the suitable hydraulic pump to form the hydraulic pump series.
1.This screw cutter is the most effective tool when the screw is rusted
2.Unique angled head that allows direct contact with the workpiece.
3.Single-acting, spring return cylinder.
4.Applications : servicing trucks, plumbing industry, tank cleaning, petrochemical, steel construction and mining.
5.Select the suitable hydraulic pump to form the hydraulic pump series.
Specification
|
model
|
YP-24
|
YP-24X
|
YP-27
|
YP-30
|
|
Output
|
10T
|
12T
|
14T
|
20T
|
|
Stroke
|
18mm
|
25mm
|
20mm
|
26mm
|
|
Nut range
|
13-36mm
|
13-36mm
|
16-41mm
|
16-46mm
|
|
Bolt range
|
M16-M24
M8-M16
|
M8-M24
|
M16-M27
M10-M16
|
M22-M30
M10-M22
|
|
Weight
|
2.8/4kgs
|
4.2/5.5kgs
|
3.8/5.4kgs
|
5/6.5
|
|
Packing
|
plastic box
|
plastic box
|
plastic box
|
plastic box
|
|
size
|
435*85*215mm
|
530*90*200mm
|
520*90*230mm
|
520*90*230mm
|
