Quick Details
-
Brand Name:
-
DJS
-
Model Number:
-
DJS-1250S
-
Battery Size:
-
LiFePO4 12V 50Ah
-
Place of Origin:
-
GUA,China
-
Weight:
-
6kg
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
1C
-
Electric Energy:
-
640 Wh
-
Nominal Voltage:
-
12.8 V
-
Nominal Capacity:
-
50 Ah
-
Specific Energy:
-
640 Wh
-
Cycle Life:
-
4000 Cycles@1C 25℃ 80%DOD
-
Size:
-
238*133*198/222 mm
-
Cells Type:
-
Prismatic Cells
-
Usage:
-
Plug and Play
-
Color:
-
Green, Black(Customizable)
-
OEM/ODM:
-
Acceptable
-
MOQ:
-
10 pcs
Quick Details
-
Storage Type:
-
Store in dry, cool and ventilated place
-
Anode Material:
-
LFP
-
Application:
-
electric vehicles, Starting Car
-
Brand Name:
-
DJS
-
Model Number:
-
DJS-1250S
-
Battery Size:
-
LiFePO4 12V 50Ah
-
Place of Origin:
-
GUA,China
-
Weight:
-
6kg
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
1C
-
Electric Energy:
-
640 Wh
-
Nominal Voltage:
-
12.8 V
-
Nominal Capacity:
-
50 Ah
-
Specific Energy:
-
640 Wh
-
Cycle Life:
-
4000 Cycles@1C 25℃ 80%DOD
-
Size:
-
238*133*198/222 mm
-
Cells Type:
-
Prismatic Cells
-
Usage:
-
Plug and Play
-
Color:
-
Green, Black(Customizable)
-
OEM/ODM:
-
Acceptable
-
MOQ:
-
10 pcs
Product Description

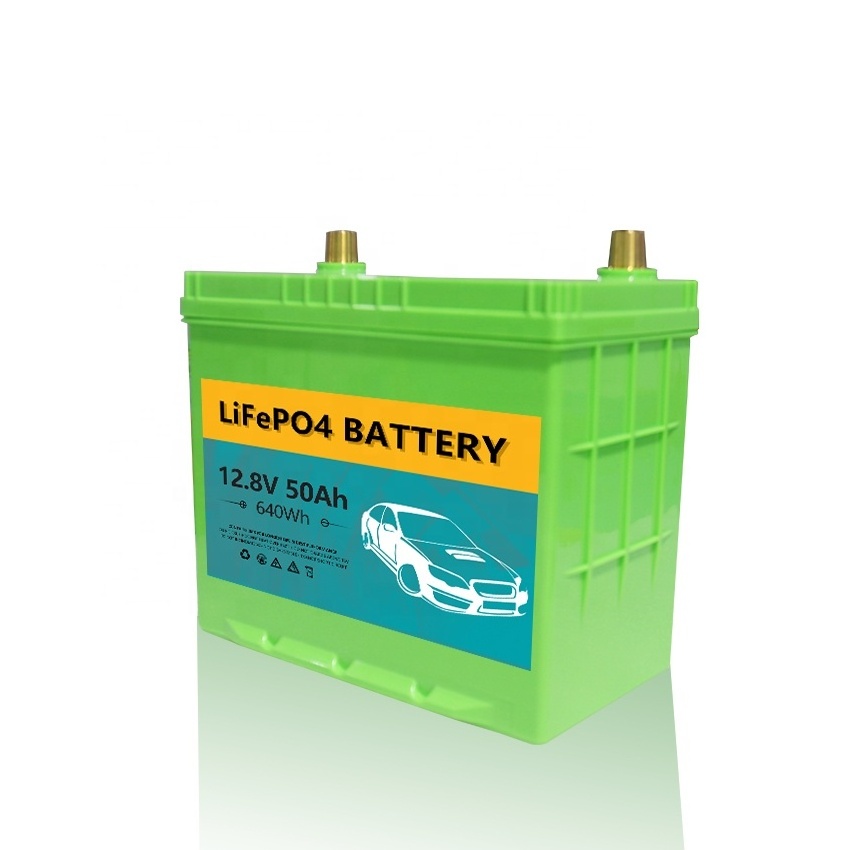

12V 50Ah LiFePO4 Starting/ Cranking Battery
Our this DJS-12-S Starting Battery Series are designed to drop-in replacement of old generation batteries (Lead VRLA, AGM or OPZ batteries) in 12V, that are low performance and harmful to the environment. On the contrary, by using LiFePO4 (LFP) technology,our this 12V LiFePO4 series offer high level of safety, are light, compact, efficient.
The electrical parameters of DJS-12-S are compatible in all respects with those of an AGM lead battery of 12V. In the vast
majority of cases, the charging system can be kept the same and no additional accessories are required to perform the replacement.
Features:
The electrical parameters of DJS-12-S are compatible in all respects with those of an AGM lead battery of 12V. In the vast
majority of cases, the charging system can be kept the same and no additional accessories are required to perform the replacement.
Features:
* Prismatic cells, 4S1P, offering more vibration resistance and stability to meet harsh environment.
* Heavy-duty waterproof ABS case, IP67
* High charge/discharge current, support BMS customization
* Auto cell balancing
* LiFePO4
* Lifting handle fitted to carry easily
* Built-in BMS with Over charge/ Over discharge/ Over current/ Short circuit/ High temperature protection
* Heavy-duty waterproof ABS case, IP67
* High charge/discharge current, support BMS customization
* Auto cell balancing
* LiFePO4
* Lifting handle fitted to carry easily
* Built-in BMS with Over charge/ Over discharge/ Over current/ Short circuit/ High temperature protection
Datasheet
|
Storage capacity
|
50Ah
(with flat voltage curve,will not dramatically drop like similar sized SLA batteries.)
|
|
Voltage
|
12.8V
|
|
Energy
|
640Wh
|
|
Terminal
|
M8
(posts that screw in,easy to adapt to different connection needs.)
|
|
Size
|
238x133x222mm
|
|
Weight
|
6kg
(60% lighter than a SLA battery)
|
|
LiFecycles
|
4000 cycles
(Up to 80% capacity, in recommended conditions.4 times longer than traditional batteries.)
|
|
Operating temperature
|
-20~55℃
(Ideal for rugged & harsh environments. Much better than SLA or other lithium’s. -20'F min, +120'F max optimal operating temps (battery performs well down to -20'F). Avoid charging below 32'F.)
|
|
Discharge
|
100 A max continuous, 500 A max pulse 10 second pulse.
|
|
Charge
|
50 A max, 14 V max recommended, 15 V max.
|
|
BMS function
|
Cell balancing, low voltage cutoff, high voltage cutoff, short circuit protection and high temperature protection
for increased performance and longer life.
|
|
Certifications
|
UN 38.3
certified,meet all international regulations for air,ground,train & marine transport.
|
LiFePO4 Car Batteries Series
|
Model
|
Specs
|
Dimensions(mm)
|
N.W(kg)
|
|
DJS-1220S
|
12V 20Ah
|
L197*W128*H200/220
|
4
|
|
DJS-1240S
|
12V 40Ah
|
L197*W128*H200/220
|
6
|
|
DJS-1250S
|
12V 50Ah
|
L238*W133*H198/222
|
6.5
|
|
DJS-1260S |
12V 60Ah |
L244*W176*H197
L242*W175*H162/183 L230*W174*H200/219 |
7 |
|
|
|
L230*W175*H181/200
L260*W175*H201/221 L278*W176*H172 |
7.5 |
|
DJS-1280S
|
12V 80Ah
|
L306*W174*H200/220
L279*W175*H189 |
9
|
|
DJS-1290S
|
12V 90Ah
|
L318*W176*H187
|
9.5
|
|
DJS-12100S
|
12V 100Ah
|
L318*W176*H187
|
10.5
|
|
DJS-12120S
|
12V 120Ah
|
L355*W175*H188
|
13
|
|
DJS-12135S
|
12V 135Ah
|
L230*W174*H200/219
|
14
|
|
DJS-12150S
|
12V 150Ah
|
L355*W175*H188
|
15
|
Above are our regular car starting batteries, we support customization, customize them to be used on boat or other motor cranking.
