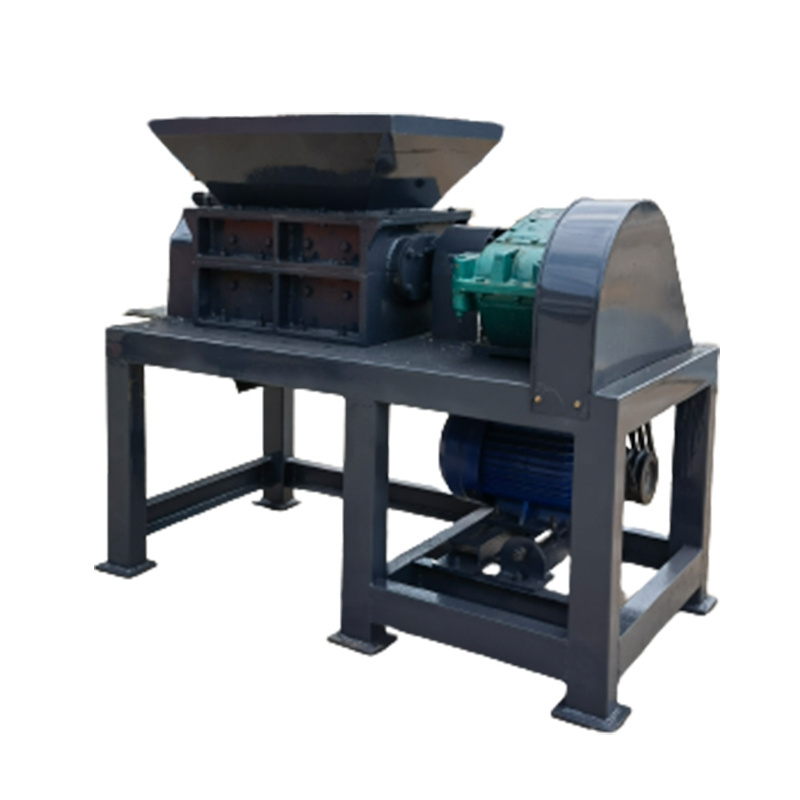

high quality fabric shredder machine single shaft shredder for plastics
is mainly applied in the crushing and recycling of various thick wall scrap materials and leftover materials in the plastic and rubber industry, can effectively crush extra thick, strong toughness and large materials.
- Product Details
- {{item.text}}
Quick Details
-
Weight (T):
-
1.2
-
Name:
-
single shaft shredder machine
-
Application:
-
Recycle Waste Plastic
-
Function:
-
Plastic Cutter Grinder Crusher Shredder Machine
-
Usage:
-
Waste Raw Material Shredding
-
Color:
-
Customized Color
-
Raw material:
-
Plastic Products Paper Wood Metal Product
-
Used for:
-
Shreddering Waste Materials
-
Blades material:
-
SKD-11
-
Capacity:
-
800-5000kg/h
-
Advantage:
-
High Efficiency Low Energy Consumption
Quick Details
-
Max.Production Capacity (kg/h):
-
5000
-
Place of Origin:
-
China
-
Production Capacity (kg/h):
-
500 - 5000 kg/h
-
Weight (T):
-
1.2
-
Name:
-
single shaft shredder machine
-
Application:
-
Recycle Waste Plastic
-
Function:
-
Plastic Cutter Grinder Crusher Shredder Machine
-
Usage:
-
Waste Raw Material Shredding
-
Color:
-
Customized Color
-
Raw material:
-
Plastic Products Paper Wood Metal Product
-
Used for:
-
Shreddering Waste Materials
-
Blades material:
-
SKD-11
-
Capacity:
-
800-5000kg/h
-
Advantage:
-
High Efficiency Low Energy Consumption
Products
Raw materials for decomposition
Raw Materials of Our Plastic Pipe Shredding Waste Cable Single Shaft Shredder Machine for Recycle Plastic bottles, Cardboard.
Woven bags. Plastic lumps like PP. PE, PET. PC. ABS. Nylon, Plastic pipes. Film. Plastic moulds,textiles. Woven bags, Electronic
Waste. Cable, Aluminum cans, Paper,Wood. Sponge, foam, etc.
Woven bags. Plastic lumps like PP. PE, PET. PC. ABS. Nylon, Plastic pipes. Film. Plastic moulds,textiles. Woven bags, Electronic
Waste. Cable, Aluminum cans, Paper,Wood. Sponge, foam, etc.
Main structure of the product
Plastic Pipe Shredding Waste Cable Single Shaft Shredder Machine for Recycle is suitable to recycle a variety of bulk solid materials, refractory materials, plastic containers and plastic barrels, plastic films, fibers, paper. Shredded particles can be small to 20mm according to different needs.
How the product works
Plastic Pipe Shredding Waste Cable Single Shaft Shredder Machine for Recycle consists of a knife disc and a static knife to complete shredding material. Cutter is composed of a base shaft and several shape quadrilateral knife block.
Technical parameters of the product
|
Model
|
ZY-S600
|
ZY-S800
|
ZY-S1000
|
ZY-S1200
|
ZY-S1500
|
|
Motor Power (kw)
|
22
|
45
|
55
|
75
|
110
|
|
Rotor-knives (pcs)
|
26+4
|
36+6
|
48+6
|
58
|
98
|
|
Blade Material
|
Cr12MoV
SKDII
D2
|
Cr12MoV
SKDII
D2
|
Cr12MoV
SKDII
D2
|
Cr12MoV
SKDII
D2
|
Cr12MoV
SKDII
D2
|
|
Rotor Diameter (mm)
|
260
|
400
|
400
|
500
|
550
|
|
Rotor Speed (r/min)
|
75
|
75
|
75
|
80
|
80
|
|
Cutting Chamber (mm)
|
600x600
|
800x800
|
1000x1000
|
1200x1200
|
1500x1500
|
|
Hydraulic Power (kw)
|
2.2
|
3
|
4
|
5.5
|
7.5
|
|
Cylinder Stroke (mm)
|
600
|
800
|
1000
|
1200
|
1500
|
|
Machine Size (mm)
|
1800x1600x1850
|
2200x1780x2100
|
2500x1850x2300
|
3500x2000x2400
|
4800x2300x2400
|
|
Weight (kg)
|
2200
|
3700
|
4500
|
7000
|
9800
|
Packaging and transport
