Quick Details
-
Walkie Talkie Type:
-
Analog walkie talkie
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Baofeng
-
Model Number:
-
UV-5R
-
Dimensions:
-
55*32*108mm
-
Frequency Range:
-
136~174MHz & 400~470MHz, 136~174MHz & 400~470MHz
-
OutPut Power:
-
5W
-
Warranty:
-
1 Year for radio body
-
Battery capacity:
-
1800m Ah (Li-ion Battery)
-
Operating Voltage:
-
DC7.4V±20%
-
Channel Spacing:
-
128
-
Working time:
-
3 days
-
Packing Weight:
-
0.46kg
-
keywords:
-
baofeng uv5r
Quick Details
-
Talk Range:
-
2-4km, 2-4km
-
Terminal style:
-
Handheld
-
Storage Channel:
-
128
-
Walkie Talkie Type:
-
Analog walkie talkie
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Baofeng
-
Model Number:
-
UV-5R
-
Dimensions:
-
55*32*108mm
-
Frequency Range:
-
136~174MHz & 400~470MHz, 136~174MHz & 400~470MHz
-
OutPut Power:
-
5W
-
Warranty:
-
1 Year for radio body
-
Battery capacity:
-
1800m Ah (Li-ion Battery)
-
Operating Voltage:
-
DC7.4V±20%
-
Channel Spacing:
-
128
-
Working time:
-
3 days
-
Packing Weight:
-
0.46kg
-
keywords:
-
baofeng uv5r

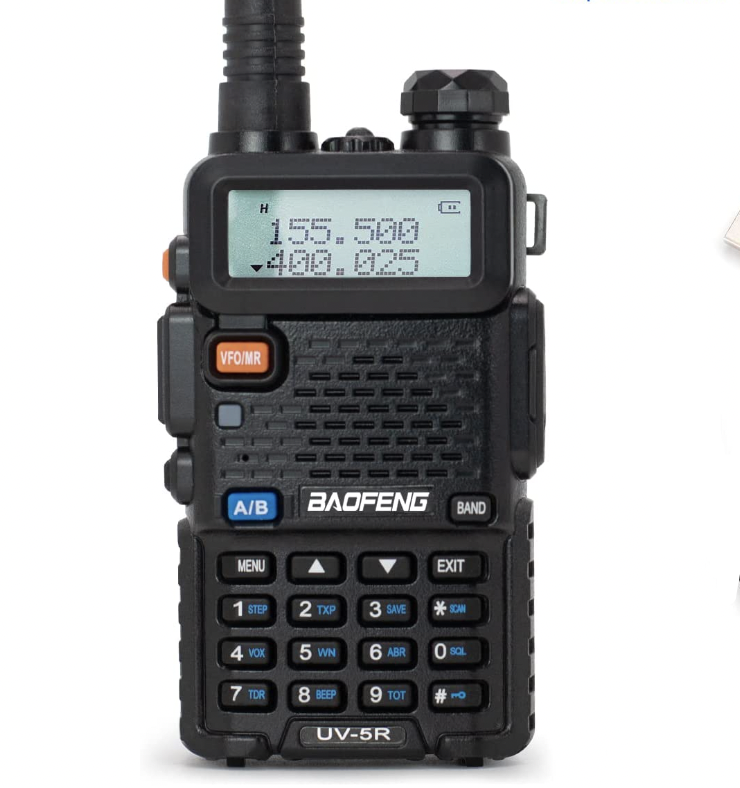

Cheap Baofeng UV5R Handheld Two Way Radio UV-5R 5W Walkie Talkie
Baofeng UV-5R wolkie tolkie Features:
Dual band handheld transceiver with display function menu on the display "LCD"
2013 latest version; more stubborn case, more rich and enhanced features
Commercial FM radio receiver (65MHz ~ 108MHz)
Incorporates 105 codes "DCS" and 50 privacy codes "CTCSS" programmable
Broadband / Narrowband, selectable
Lithium-ion battery with high capacity
Voice companding 50 CTCSS / 104 DCS
VFO & Memory channels scan Emergency Alarm
Tri-color background light selectable 0 ~ 9 grades VOX selectable
Dual watch dual reception
Timer transmission "TOT"programmable
PC programming - Selecting the Scan Mode
Crossband reception - Tone end of transmission
|
Hot Spots |
||
|
Dual band / dual display / dual standby |
A/B band independent operation(UV UU VV) |
|
|
128 groups channels storage |
Shortcut menu operation mode |
|
|
VFO & Memory channels scan |
Emergency Alarm |
|
|
Time-out Timer (TOT) |
0~9 grades VOX selectable |
|
|
PTT & ANI ID |
FM radio and 25 stations storage |
|
|
Voice commanding |
50 CTCSS/104 DCS |
|
|
High/Low TX power selectable |
Busy channel lock-out(BCLO) |
|
|
DTMF function |
OFF SET function |
|
|
Wide/Narrow Band(25kHz/12.5kHz) |
Yes |
|
|
VOX function |
Yes |
|
|
Busy lockout function |
Yes |
|
|
Frequency step |
Yes |
2.5/5/6.25/10/12.5/25KHz |
|
Scanning function |
Yes |
|
|
Monitor function |
Yes |
|
|
Time-out Timer (TOT) function |
Yes |
|
|
LCD display |
Yes |
|
|
Dual display |
Yes |
|
|
Battery voltage display |
Yes |
|
|
Channel name display editing |
Yes |
|
|
Signal strength indicator |
Yes |
|
|
Keypad lock function |
Yes |
|
|
Built-in Led torch |
Yes |
|
|
FM radio |
Yes |
|
|
Wire clone function |
Yes |
|
|
Emergency alarm function |
Yes |
|
|
Low battery alarm |
Yes |
|
|
Power saving function |
Yes |
|
|
High/Low TX power selectable |
Yes |
5W/1W |
|
ROGER SET |
Yes |
|
|
Chinese English voice prompt |
Yes |
|
|
PC software programmable |
Yes |
|
|
Rated Voltage |
7.4V DC±10% |
|
|
Output power |
≤ 5W |
|
|
Battery type |
Li-ion battery |
|
|
Battery capacity |
1800mAh |
|
|
Working temperature |
-20~+50°C |
|
|
Antenna Impedance |
50Ω |
|
|
Weight |
255g |
|
|
Dimension(L×W×H) |
58×32×110mm(Not Antenna) |
|
|
Specification |
||
|
Frequency stability |
±2.5ppm |
|
|
Carier wave tolerance |
5ppm |
|
|
Modulation |
16kΦF3E / 11kΦF3E |
|
|
Max frequency deviation |
< 5kHz(Wide) < 2.5kHz(Narrow) |
|
|
Modulation character |
6 dB per fold frequency patch |
|
|
Emission current |
< 1.6A(5W) |
|
|
CTCSS / DCS |
0.5±0.1kHz(Wide) 0.3±0.1kHz(Narrow) |
|
|
Sensitivity |
< 0.16μV(12dB SINAD) |
|
|
Silent sensitivity |
< 0.2μV |
|
|
Intermediation Distortion |
<10% |
|
|
Inter modulation |
8-12mv |
|
|
Adjacent channel selectivity( wide/narrow) |
<-65dB(Wide) <-60dB(Narrow) |
|
Baofeng UV5R Walkie Talkie
1 X UV5R radio
1 X Battery
1 X Antenna
1X Belt Clip
1X User's Manual
1X Charger
BAOFENG 888S WALKIE TALKIE BAOFENG UV5R WALKIE TALKIE MSC-20A Nylon bag for baofeng
1. Q: What is MOQ(mini Order Quantity)?
A: In general, it is 100pcs. According situation, it is negotiable.you can also place sample order before bulk order.
2. Q: do you accept Customized?
A: yes,we did produce as customer requirement, OEM & ODM are welcomed.
3. Q: Could you offer free sample to test?
A: Yes, sure. For regular VIP agency we offer free sample when New Products Launch,for New customer you pay the sample fee first when your Order reach required amount we minus the sample Cost for you.
