Quick Details
-
Standard:
-
IEC/GB
-
CERTIFICATION:
-
Type test report/CESI/ CTQC/ISO9001
-
Main voltage range:
-
35KV/24KV/12KV/0.4KV
-
Main cabinet type:
-
KYN28/KYN61/GGD/XGN15/...
-
Rated capacity:
-
50,63,80,100,125,200,250,315,400,500,800,1000, 2000,2500A
-
Frequency:
-
50Hz or 60Hz
-
Advantage:
-
Best price & Best quality in China
-
CORPORATION::
-
EEPCO/KPLC/REA/PEC
-
Customized design:
-
Available
-
Product type:
-
high voltage switchgear
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Abbeycon
-
Model Number:
-
KYN28-24
-
Standard:
-
IEC/GB
-
CERTIFICATION:
-
Type test report/CESI/ CTQC/ISO9001
-
Main voltage range:
-
35KV/24KV/12KV/0.4KV
-
Main cabinet type:
-
KYN28/KYN61/GGD/XGN15/...
-
Rated capacity:
-
50,63,80,100,125,200,250,315,400,500,800,1000, 2000,2500A
-
Frequency:
-
50Hz or 60Hz
-
Advantage:
-
Best price & Best quality in China
-
CORPORATION::
-
EEPCO/KPLC/REA/PEC
-
Customized design:
-
Available
-
Product type:
-
high voltage switchgear
high voltage switchgear ip67 momentary waterproof switch hot selling china 3 phase distribution transformer

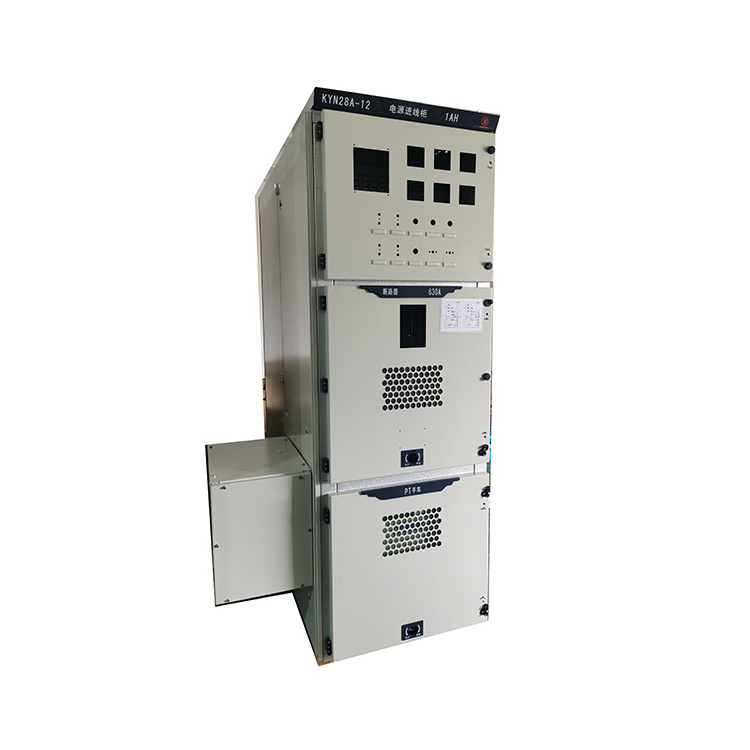

KYN28-24 Medium voltage KYN28-24 distribution board switchboard high voltage switchgear
Operating environment:
1)Ambient temperature:-10°C-+40°C;
2)Altitude: high voltage ≤1000Meter, low voltage ≤2500Meter (technical department will design specially if exceeds);
3)Relative humidity:≤85%
4)Seismic intensity:≤ magnitude 8;
5Apply to the places have no fire,no explosion danger, no serious pollution,no chemical corrosion and no violent vibration.
high voltage switchgear
Executive standard:
GB7251 Low voltage complete set switchgear and control device
GB3906-2006 3.6kV ~ 40.5kV AC metal enclosed switchgear and control device
high voltage switchgear
Technical parameter:
35KV high voltage switchgear technical parameter:
|
high voltage switchgear |
|
Parameter |
||
|
Rated voltage |
kV |
40.5~33KV |
||
|
Rated short time power frequency withstand voltage(1min)(1min) |
kV |
95 |
||
|
Rated lighting impulse withstand voltage |
kV |
185 |
||
|
Rated frequency |
Hz |
50 |
||
|
Rated current |
A |
630,1250,1600,2000,2500 |
||
|
Rated short circuit breaking current |
kA |
25 |
31.5 |
|
|
Rated peak value withstand current |
kA |
63 |
80 |
|
|
Rated control power |
V |
AC 110/220,DC 110/220 |
||
|
Dimension |
KYN61-40.5 |
mm |
1400*2800*2600 (width* depth* height) |
|
|
|
|
|
|
|
24KV high voltage switchgear technical parameter:
|
high voltage switchgear |
|
Parameter |
||
|
Rated voltage |
kV |
24~15KV |
||
|
Rated short time power frequency withstand voltage(1min) |
kV |
65 |
||
|
Rated lighting impulse withstand voltage |
kV |
125 |
||
|
Rated frequency |
Hz |
50 |
||
|
Rated current |
A |
630,1250,1600,2000,2500 |
||
|
Rated short circuit breaking current |
kA |
25 |
31.5 |
|
|
Rated peak value withstand current |
kA |
63 |
80 |
|
|
Rated control power |
V |
AC 110/220,DC 110/220 |
||
|
Dimension |
KYN28A-24 |
mm |
1000*1800*2450(width*depth*height) |
|
|
|
|
|
|
|
12KV high voltage switchgear technical parameter:
|
high voltage switchgear |
|
Parameter |
|||||||
|
Rated voltage |
kV |
3.6 |
7.2 |
12 |
|||||
|
Rated short time power frequency withstand voltage(1min) |
kV |
24 |
32 |
42 |
|||||
|
Rated lighting impulse withstand voltage |
kV |
40 |
60 |
75 |
|||||
|
Rated frequency |
Hz |
50 |
|||||||
|
Rated current |
A |
630,1250,1600,2000,2500,3150,4000 |
|||||||
|
Rated short circuit breaking current |
kA |
20 |
25 |
31.5 |
40 |
50 |
|||
|
Rated peak value withstand current |
kA |
50 |
63 |
80 |
100 |
125 |
|||
|
Rated control power |
V |
AC 110/220,DC 110/220 |
|||||||
|
Dimension (width*depth*height) |
KYN28A-12 |
mm |
(800/1000)*1500*2300 |
||||||
|
XGN2-12 |
mm |
1100*1200*2650 |
|||||||
|
HXGN-12 |
mm |
(375/500)*900*1850 |
|||||||
|
|
|
|
|
|
|
|
|
|
|
We also supply the following series switchgears,
click here for more details
:
Rated votlage 40.5KV switchgear(for 33KV system)
Rated voltage 24KV switchgear(for 22KV,20KV, 15KVsystem)
Rated votlage 12KV switchgear(for 11KV,10KV,6.6KV system)
Rated voltage 0.4KV low voltage switchgear(380V,400V,433v,440V system)
XL-21 Power distribution box
MOTO Soft Start switchgear
Other Different kinds of High voltage power transmission products from us:
high voltage switchgear
Trade terms:
1.Payment: 1) 30% in advance, balanced 70% to be paid before dispatch. 2) L/C
2.Port of loading:
Ningbo,Wenzhou or Shanghai Port
3.Discounts:
offered based on order quantities
4.Delivery time:
10-30 days according to order quantities.
Feedback:
We WARMLY appreciate your positive feedback. We value our customers so much.If you have any problem, PLEASE FEEL FREE and DON'T HESITATE TO CONTACT US BY EMAIL IMMEDIATEDLY, we are always there to offer help. high voltage switchgear hot selling china 3 phase distribution transformer
Why Us?
1. Quality assurance: All the products will go through lots of tests carefully before dispatch: Raw material check, Winding test, Assemble test, Painting check, Nameplate check and routine tests.
2. Competitive production capacity : monthly production more than 1500 sets.
3. Manufactuer's price : Factory direct sale, most competitive price in China.
