- Product Details
- {{item.text}}
Quick Details
-
Air Consumption:
-
7-8 m3/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ENWEI
-
Voltage:
-
380v; customized
-
Power:
-
Y132-6-5.5(KW)
-
Dimension(L*W*H):
-
1280*700*1280mm
-
Weight:
-
600 kg
-
Model:
-
PZ-5
-
Water cement ratio:
-
≤0.4
-
Output:
-
5m3/h
-
Rotor diameter:
-
438mm
-
Keywords:
-
Dry Mix Shotcrete Machine
-
Air pressure:
-
0.4-0.6Mpa
Quick Details
-
Max. Conveying Distance:
-
Horizontal:200m Vertical: 20m
-
Max Aggregate Size:
-
20mm
-
Hose Inner Diameter:
-
51 mm
-
Air Consumption:
-
7-8 m3/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ENWEI
-
Voltage:
-
380v; customized
-
Power:
-
Y132-6-5.5(KW)
-
Dimension(L*W*H):
-
1280*700*1280mm
-
Weight:
-
600 kg
-
Model:
-
PZ-5
-
Water cement ratio:
-
≤0.4
-
Output:
-
5m3/h
-
Rotor diameter:
-
438mm
-
Keywords:
-
Dry Mix Shotcrete Machine
-
Air pressure:
-
0.4-0.6Mpa
Products Description

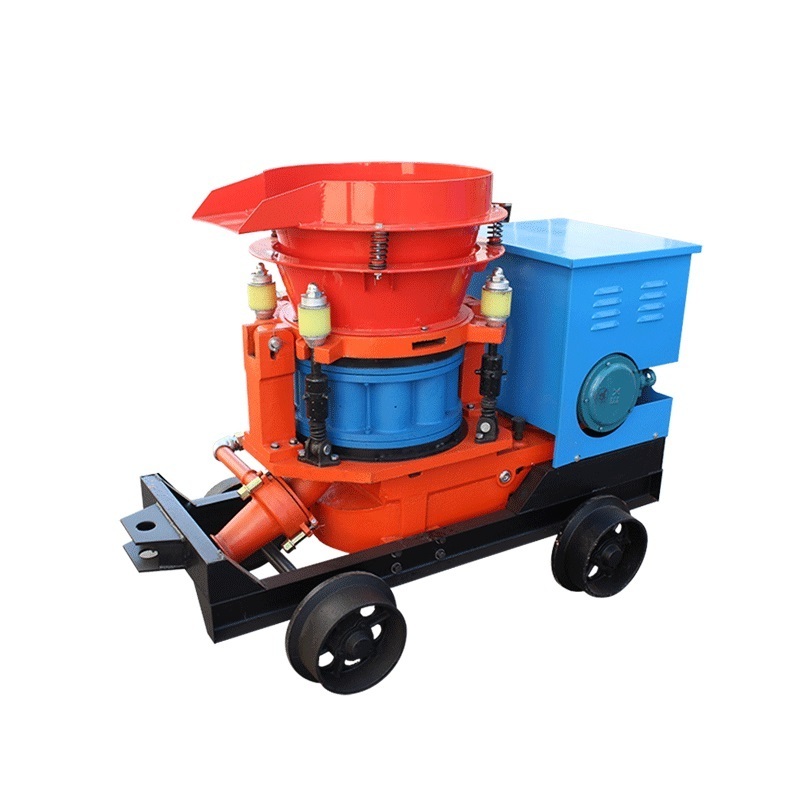

PZ-5 Shotcrete Machine
Dry electrical shotcrete machine is a device used for dry concrete shooting. It have the advantages of advanced technology, reasonable structure, stable performance, convenient operation and maintenance, long service life, etc. It is widely used in mine, tunnel, culvert, subway, underground engineering and coal mine drainage tunnel construction work.
Dry electrical shotcrete machine is a device used for dry concrete shooting. It have the advantages of advanced technology, reasonable structure, stable performance, convenient operation and maintenance, long service life, etc. It is widely used in mine, tunnel, culvert, subway, underground engineering and coal mine drainage tunnel construction work.
Product Parameters
|
Item
|
PZ-3
|
PZ-5
|
PZ-7
|
||
|
Output
|
3.5m3/h
|
5m3/h
|
7m3/h
|
||
|
Max. convey dist
|
Horizontal:200m Vertical: 20m
|
Horizontal:200m Vertical: 20m
|
Horizontal:200m Vertical: 20m
|
||
|
Water cement ratio
|
≤0.4
|
≤0.4
|
≤0.4
|
||
|
Max. Aggregate. size
|
20mm
|
20mm
|
20mm
|
||
|
Hose inner size
|
38mm
|
51mm
|
64mm
|
||
|
Operating air pressure
|
0.4~0.6MPa
|
0.4~0.6MPa
|
0.4~0.6MPa
|
||
|
Air consumption
|
3-4 m3/min
|
7-8 m3/min
|
8-10 m3/min
|
||
|
Rotor diameter
|
350mm(150)
|
438mm
|
480mm
|
||
|
Motor power
|
Y112M-6-3KW
|
Y132-6-5.5(KW)
|
Y132-6-7.5KW
|
||
|
Voltages
|
380v or as your requirement
|
380v or as your requirement
|
380v or as your requirement
|
||
|
Overall dimension(mm)
|
1040X550X940
|
1280x700x1280
|
1500X700X1280
|
||
|
Whole weight
|
260kgs
|
600kgs
|
700kgs
|
||
|
Wheel
|
Nylon wheel; Rubber wheel; Skid wheel; Rail wheel
|
|
|
||
