Quick Details
-
MOQ:
-
500pcs
-
Working temperature:
-
-25℃ to +75℃
-
Size:
-
50*52mm,50*24mm or customized
-
Sample Availability:
-
Free samples are available upon request.
-
Storage temperature:
-
-40℃ to +80℃
-
Type:
-
Passive, read/write
-
Chip:
-
Customized
-
Model Numbe:
-
RFID label
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Name:
-
RFID Label
-
Frequency:
-
13.56mhz,860-960mhz
-
MOQ:
-
500pcs
-
Working temperature:
-
-25℃ to +75℃
-
Size:
-
50*52mm,50*24mm or customized
-
Sample Availability:
-
Free samples are available upon request.
-
Storage temperature:
-
-40℃ to +80℃
-
Type:
-
Passive, read/write
-
Chip:
-
Customized
-
Model Numbe:
-
RFID label

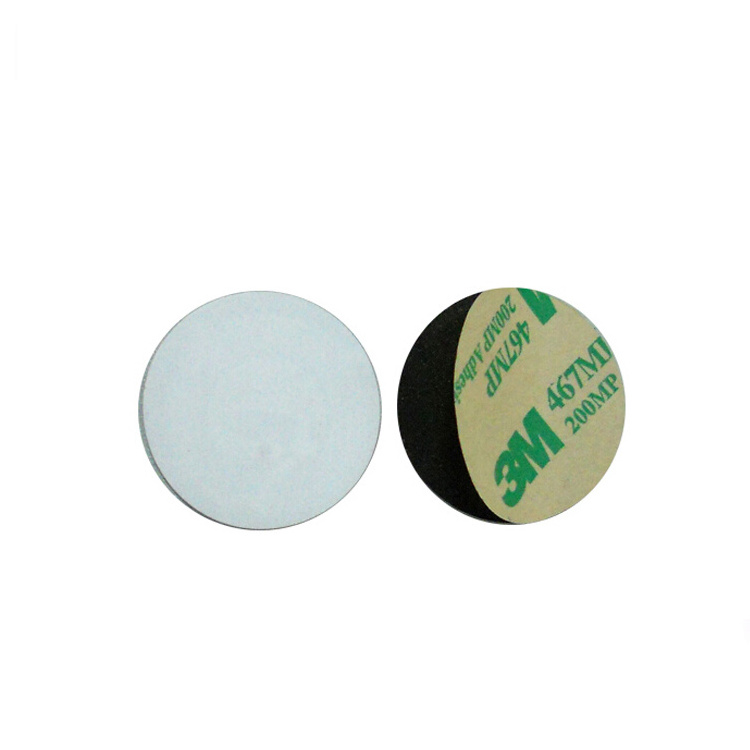

Free Sample 13.56MHz ISO14443A anti metal NFC TAG213 RFID Wet Inlay Label tag
Main Products
Product Description
| Frequency | 13.56mhz/860-960MHZ |
| Protocol | ISO14443A |
| Surface Material | PVC, PET, Paper or Epoxy |
| Antenna | etched Aluminum or Copper antenna |
| Reading range | 0-60mm or custom |
| Data retention | 10 years in regular |
| Write/read endurance | 100 000 times |
| Dimension | Round: 15/18/20/22/23/25/29/30/32/38/40/50mm etc |
| Square: 19/25/29/30/35/38/50mm etc | |
| Rectangle: 15*20,24*34,25*38,30*35,42*26,44*55,50*80,54*85.5,55*85(mm) | |
| Micro size: 8.7*8.7mm, round 9mm, round 15mm, 10*17mm, 8*15mm, 12*12mm, 7.7*14.88mm, 8*14mm, 8*18.5mm, 5.4*19mm, 8*19.5mm, 9.8*16.45mm etc or customized | |
| Printing | Custom 4C LOGO printing or white sticker, wet inlay |
| Crafts | Number printing (Serial No & Chip UID etc), QR, Barcode etc |
| Chip program/encode/lock/encryption will be available as well (URL ,TEXT ,Number and Vcard) | |
| Epoxy, Customize size and shape, Hole punch etc | |
| What we have: | |
| - Variety of RFID IC on option (UHF/HF) for alternation. | |
| - Waterproof, Multiple Colors and Shapes. | |
| - Laser Printing / Silkscreen Printing Logo & Number. | |
| - Delivery Time and Guarantee. | |
| Good RFID Label Factory Supplier save you time and money, help your win market. | |
Products display
Application
Available Chips
| Chip Type | Protocal | Capacity | Anti Collision | Function |
| Available 13.56MHz Chip | ||||
| NTAG203/ N TAG 213 | ISO14443A | 144/180 Byte | No | Read/Write |
| N TAG 215/ N TAG 216 | ISO14443A | 540/924 Byte | No | Read/Write |
| MIFARE® Classic 1k | ISO14443A | 1KB | No | Read/Write |
| MIFARE® Classic 4k | ISO14443A | 4KB | No | Read/Write |
| MIFARE® Plus 2k/4k | ISO14443A | 2KB/4KB | No | Read/Write |
| MIFARE® DESFire | ISO14443A | 2KB/4KB/8KB | No | Read/Write |
| MIFARE Ultralight® EV1 | ISO14443A | USER 384 EEOPOM 640 | No | Read/Write |
| MIFARE Ultralight® | ISO14443A | EEPROM 512 USER 384 | No | Read/Write |
| I CODE SLI | ISO14443A | 1024 Bit 1k | Yes | Read/Write |
| Available 860-960MHZ Chip | ||||
| UCODE EPC G2 | EPC class 1 Gen2 | 512 Bit | No | Read/Write |
| Monza 5 | ISO 18000-6C | 128 Bit | No | Read/Write |
| Other chips available upon request and quantity of order. | ||||
