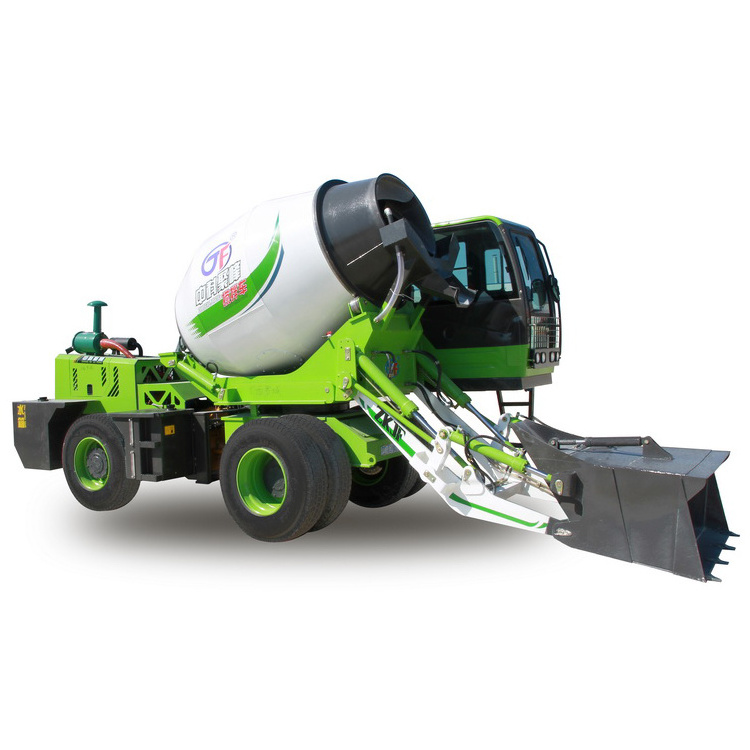

Main Features
CMT3500RW is driven by
YUCHAI,
85 kW (116 HP)
,
Turbo-charged & Water-cooled Diesel Engine, which features High Reliablity and Low Fuel Comsumption. The CUMMINS Engine is availabe upon request.
The mixing drum can be slewed hydraulically through
270 degrees
together with cabin for high discharge over 2.0m on the four sides of the vehicle. The drum can also be lifted up 16 degrees from the bottom by two hydraulic cylinders for the convenience of concrete discharge.
2x310L Water tank is fitted in the rear of vehicle. Self-priming hydraulic water pump features quick suction
(550L/min.)
The driving cameras fitted on the truck and monitor in cabin are designed for the driving safety.
600L Loading shovel is fitted with teeth in front and completed with hydraulic opening gate. It can fulfill the drum around 6 times of loading.
Cooling & heating air conditioner is available.
|
Mixing Drum
|
|
|
|
|||
|
Mixing volume
|
3.5 M3
|
|
|
|||
|
Geometrical volume
|
5.3 M3
|
|
|
|||
|
Concrete output
|
3.5 M3 / batch, 14 M3 / hour
|
|
|
|||
|
Drum rotating speed
|
17 rpm
|
|
|
|||
|
Drum slewing angle
|
270°
|
|
|
|||
|
Engine
|
|
|
|
|||
|
Brand
|
YUCHAI (Cummins Engine optional)
|
|
|
|||
|
Model
|
YCD4J22G
|
|
|
|||
|
Type
|
In-line, 4-Cylinder, Turbo Charged and Water Cooled,
|
|
|
|||
|
Rated power
|
85 KW (116HP) @ 2400 rpm
|
|
|
|||
|
Max torque:
|
390 N.M @2000 rpm
|
|
|
|||
|
Emission standard
|
Euro II
|
|
|
|||
|
Chassis
|
|
|
|
|||
|
Structure
|
Articulated chassis
|
|
|
|||
|
Transmission gear
|
Automatic, 4F+ 4R shift
|
|
|
|||
|
Driving & steering
|
4-Wheel drive (4x4), hydraulic articulated steering
|
|
|
|||
|
Wheelbase
|
2640 mm
|
|
|
|||
|
Tread
|
1960 mm
|
|
|
|||
|
Axles
|
Outsize wheel-side reducer driving axle
|
|
|
|||
|
Tyre size
|
Off road steel cord type, 1670-20, PR14
|
|
|
|||
|
Loading Shovel & Chute
|
|
|
|
|||
|
Volumetric capacity
|
600L
|
|
|
|||
|
Number of shovel loading times of full drum
|
Around 6 times
|
|
|
|||
|
Chute
|
2 pcs. of discharging chute extensions. Manually rotating at 90 degree.
|
|
|
|||
|
Cabin
|
|
|
|
|||
|
Type
|
ROPS & FOPS type closed front cab
|
|
|
|||
|
Joystick control
|
Double-joystick control the hydraulic system
|
|
|
|||
|
Weighing system
|
Optional. The "loading cells" are acting on the drum, and technical data are displayed on the shovel loader weigher inside the cabin.
|
|
|
|||
|
Air conditioning system
|
Cooling & heating air conditioner
|
|
|
|||
|
Water system
|
|
|
|
|||
|
Max. water suction capacity
|
550 L/min. (Self-priming hydraulic water pump)
|
|
|
|||
|
Water tank capacity
|
2x310 L.
|
|
|
|||
|
Electric system
|
|
|
|
|||
|
Alternator
|
24V-1500W
|
|
|
|||
|
Battery
|
2x12V-80AH
|
|
|
|||
|
Vehicle
|
|
|
|
|||
|
Max. Driving speed
|
25.0km/h
|
|
|
|||
|
Gradient
|
Fully loaded 40%
|
|
|
|||
|
Min. turning radius
|
5.3 m
|
|
|
|||
|
Operating weight
|
7,700 Kg
|
|
|
|||
|
Max. payload
|
8,400 Kg
|
|
|
|||
|
Max. gross weight
|
16,100 Kg
|
|
|
|||
|
Overall size (L×W×H)
|
7600 mm × 28000 mm × 3260 mm (4180 mm full height)
|
|
|
|||
|
Service refill capacities
|
|
|
|
|||
|
Fuel tank:
|
75L
|
|
|
|||
|
Total hydraulic system capacity:
|
75L
|
|
|
|||
|
Engine oil:
|
16L
|
|
|
|||
|
Optional accessories:
|
|
|
|
|||
|
Dongfeng Cummins engine
|
|
|
|
|||
|
Foton Cummins engine
|
|
|
|
|||
|
Electronic Weighing device
|
|
|
|
|||
|
Centralized greasing system
|
|
|
|
|||
Founded in 1992,
Laizhou Jufeng Machinery Co., Ltd.
is the leading manufacturer specializing in construction machinery & equipment with a history of nearly 30 years, and the national heavy equipment manufacturing enterprise supported by the government in China. Our company is a group enterprise which covers an area of more than 200,000 square meters and owns over 600 employees and 5 production plants.
The main products we manufacture include Self Loading Concrete Mixer Truck with output
capacity ranging from 0.6 CBM to 6.5 CBM, Wheel Loader with payload from 1 Ton to 5 Ton, Backhoe Loader, Rough Terrain Forklift, Crawler Excavator, Concrete Mixer Pump, etc.
The company has passed the approval of ISO9001 for its quality control system, and our
products have passed the CE authentication as well. We have constantly improved and updated our products according to customer's feedback and market demand. At every stage of the manufacturing process, each component has passed the stringent tests before the assembled machinery goes through its final pre-despatching inspection. By now, we have gained more than 200 distributing agents, 150 serving agents and 10 spare part warehouse centers in China, creating relatively complete after-sales service system. Our products have been exported to Europe, America, South East Asia, Central Asia, Middle East, Africa and Oceania, more than 30 countries and regions. High-quality products, sufficient spare parts supply, fast & efficient aftersales service and reasonable price make us gain customer's trust and good reputation in both domestic and overseas markets, and cast the Top Brand of "ZKJF".
In accordance with the development strategy of "Taking the Road of Famous Brand and Building ZKJF with Century History", we endeavor to head towards of our grand goal of being first-class enterprise in mainland China and well-known construction machinery manufacturer in the worldwide as well.
High Production Capacity
Advanced Laser Cutting, Robot Welding, Painting & Other Processing Equipments
High Level Quality Control & Neat Assembling Workshop
