Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Henan, China
-
Certificate:
-
ISO9001:2000,SGS
-
Working voltage:
-
450/750V, 600/1000V
-
Sheath material:
-
Rubber
-
Working temperature:
-
75-105℃
-
color:
-
red,black,green,blue
-
core number:
-
1-5
-
capacity:
-
20 kilometers per day
-
conductor shape:
-
round, fan-shaped
-
Payment method:
-
10%-30% T/T in advance, 70% T/T against copy of B/L
-
section area:
-
1.5mm2-240mm2
Quick Details
-
Application:
-
Underground
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Henan, China
-
Certificate:
-
ISO9001:2000,SGS
-
Working voltage:
-
450/750V, 600/1000V
-
Sheath material:
-
Rubber
-
Working temperature:
-
75-105℃
-
color:
-
red,black,green,blue
-
core number:
-
1-5
-
capacity:
-
20 kilometers per day
-
conductor shape:
-
round, fan-shaped
-
Payment method:
-
10%-30% T/T in advance, 70% T/T against copy of B/L
-
section area:
-
1.5mm2-240mm2

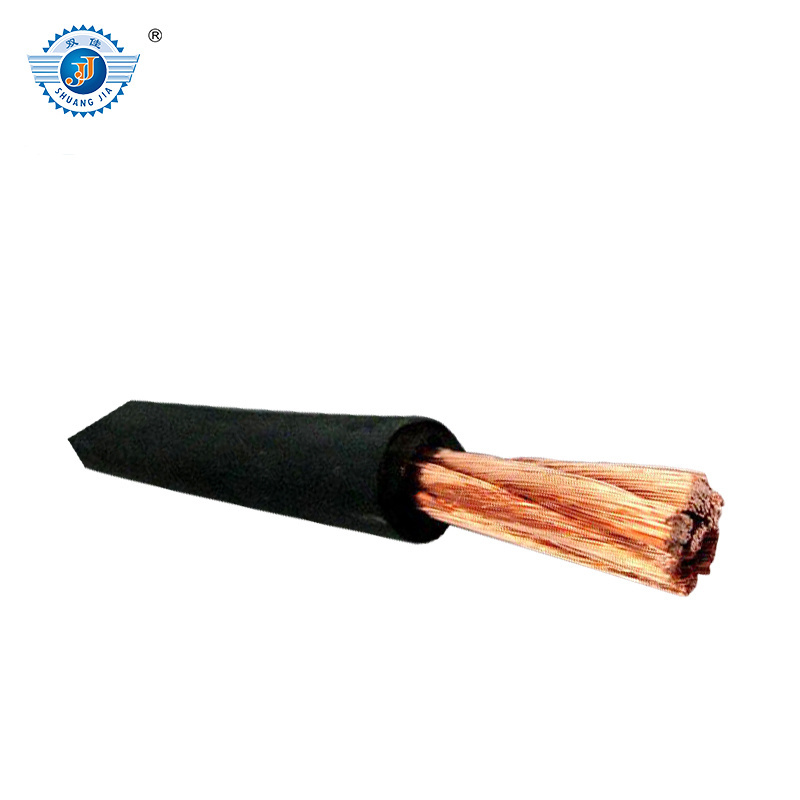

flexible copper electric cable is with following features.
·Rated Voltage:300V,600/1000V
·Rated temperature:-60°C~+150°C
·Conductor: tin-coated, nickel-coated or silver-coated copper wire
·Insulator: silicone rubber
·Applicable for high temperature environment such as electron, electrical household appliance, lamps and lanterns, combustion equipment.
flexible copper electric cable Include following code and specification
|
AWG |
section |
conductor |
insulation |
wire OD |
conductor resistance |
|||
|
structure |
diameter |
nominal thick |
min. thick |
nominal |
allowance |
20°C |
||
|
NO. |
mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
Ω/KM |
|
26 |
0.128 |
7/0.16 |
0.48 |
1.14 |
1.03 |
2.80 |
±0.10 |
148 |
|
24 |
0.205 |
7/0.20 |
0.60 |
1.14 |
1.03 |
2.90 |
±0.10 |
93 |
|
22 |
0.324 |
7/0.25 |
0.75 |
1.14 |
1.03 |
3.05 |
±0.10 |
55 |
|
20 |
0.519 |
7/0.31 |
0.93 |
1.14 |
1.03 |
3.25 |
±0.15 |
34.6 |
MOQ, Capacity& Payment method
For electric wire, aerial cable and power cable, the Minimum Order Quantity is 1000 meters each type. The capacity is 20 kilometers per day.
For electric conductor(AAC,ACSR,AAAC,AASC) for transmission line, the Minimum Order Quantity is 1 ton each type. The capacity is 50 tons per day.
Our payment term is 30% deposit in advance, 70% rest against copy of B/L; or 100% irrevocable L/C at sight
