Quick Details
-
Model Number:
-
HM-MSK23D28
-
Max. Current:
-
5A
-
Mechanical Life:
-
10,000 cycles
-
Ratings:
-
0.5A 50V
-
with voltage strenth:
-
AC100V (50/60HZ for 1 min)
-
operating force:
-
180°C+50GF
-
model:
-
SMD type tact switch ,8 pins 2 position min slide switch
-
knorb height:
-
2 3 4 6mm can be choosed
-
operating temperature:
-
-10°C+60°C
-
insulation resistance:
-
100MΩ min (DC100V)
-
life time:
-
10000cycles
-
Function:
-
1P2T/1P3T//1P4T/1P6T/1P7T/2P2T/2P3T/....5P5T
Quick Details
-
Max. Voltage:
-
12V
-
Place of Origin:
-
China
-
Brand Name:
-
HM
-
Model Number:
-
HM-MSK23D28
-
Max. Current:
-
5A
-
Mechanical Life:
-
10,000 cycles
-
Ratings:
-
0.5A 50V
-
with voltage strenth:
-
AC100V (50/60HZ for 1 min)
-
operating force:
-
180°C+50GF
-
model:
-
SMD type tact switch ,8 pins 2 position min slide switch
-
knorb height:
-
2 3 4 6mm can be choosed
-
operating temperature:
-
-10°C+60°C
-
insulation resistance:
-
100MΩ min (DC100V)
-
life time:
-
10000cycles
-
Function:
-
1P2T/1P3T//1P4T/1P6T/1P7T/2P2T/2P3T/....5P5T

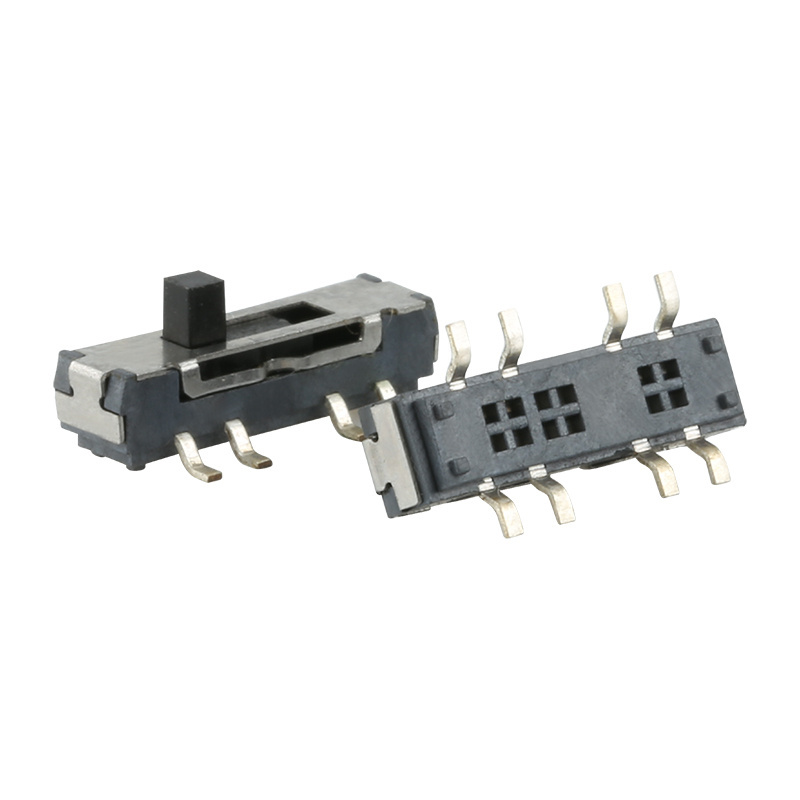

micro slide switch dpdt 2p2t 8 pin on/off 2 position dvd panel mound smd switch
micro slide switch dpdt 2p2t 8 pin on/off 2 position dvd panel mound smd switch
|
Type |
2P2T vertical type 8pin dpdt hair dryer slide switch |
|
Knorb height |
can be choosed 2 4 6mm |
|
Rating |
0.1A DC12V |
|
Contact Resistance |
≤ 30 mΩ |
|
Mechanical life |
≥ 5 00,000 |
|
Electrical Life |
≥ 1 0,000 |
|
Operating Force |
160+-50gf |
|
Dielectric Strength |
1,500Vrms, 50/60Hz for 1 min |
|
Enviroment humidity |
- 25 + 70 ° C |
|
Operating travel |
0.25mm |
|
Insulation Resistance |
≥ 10 0 mΩ |
|
Voltage withstand |
AC250V 50Hz/min |
|
Protection type |
IP20 |
|
Flammability |
UL94V0 |
|
H eat an fire resistance |
850° C |
|
Function |
1P2T 1P3T 1P4T 1P5T 2P3T 2P4T... |
|
temperature range |
0℃+125 - ℃ |
|
materials |
PA iron,copper alloy,contacts:Ag or Agcdo |
|
Timing |
Non-shorting |
|
used |
MP3,MP4, digital camera,Mobile, Video intercom,Electronic Toy, Telecommunication, oven coffee maker , hair drier,stirrer power strip etc. |
|
Products type |
Vertical slide switch or horizontal slide switch |
Q1: Are you a factory or trader?
we are a factory.
Q2: Why choose your company?
1.more than ten years manufacture experience about more kinds of switch
2.good quality,competitive price,fast delivery time
3.more switch type choosed,such as keyboard switch,rotary switch,rocker switch, push button switch, slide switch,dip switch,micro switch,tact switch,ac/dc socket and connector.
4.Design and Develop new mould depends on clients requirement
5.The best after-sale service
6.Anytime you need help ,please contact with us we keep online all the time.
Q3: How to get the samples and quote the best price soon?
we need to know more details about the products you inquired,for example
what functions?what size?what rating?where the type to be used?
we free to offer the samples
Q4.How about the delivery time?
Gernally speaking it is need 2 weeks if your quantity below 10K pcs or it depends on your quantity to confirm the time.
Q5:How about the package of the goods?
we often package the goods more safty, both inner box and outside cartons
more related product details,please feel free to contact with us!
