Quick Details
-
Dimension(L*W*H):
-
4800 x 2200 x 2500
-
Weight:
-
7500 KG, 7500kg
-
Model:
-
Q/CKLJ-1350
-
Product name:
-
Reflective Film Making Machine
-
Effective width:
-
1200-1800mm
-
Max. winding and unwinding diameter:
-
600mm
-
Embossing speed:
-
0.2-20m/m
-
Pressing way:
-
hydraulic
-
Power:
-
15kw
-
Dimension:
-
4800 x 2200 x 2500
Quick Details
-
Voltage:
-
380v, 380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Allraising
-
Dimension(L*W*H):
-
4800 x 2200 x 2500
-
Weight:
-
7500 KG, 7500kg
-
Model:
-
Q/CKLJ-1350
-
Product name:
-
Reflective Film Making Machine
-
Effective width:
-
1200-1800mm
-
Max. winding and unwinding diameter:
-
600mm
-
Embossing speed:
-
0.2-20m/m
-
Pressing way:
-
hydraulic
-
Power:
-
15kw
-
Dimension:
-
4800 x 2200 x 2500
Products Description

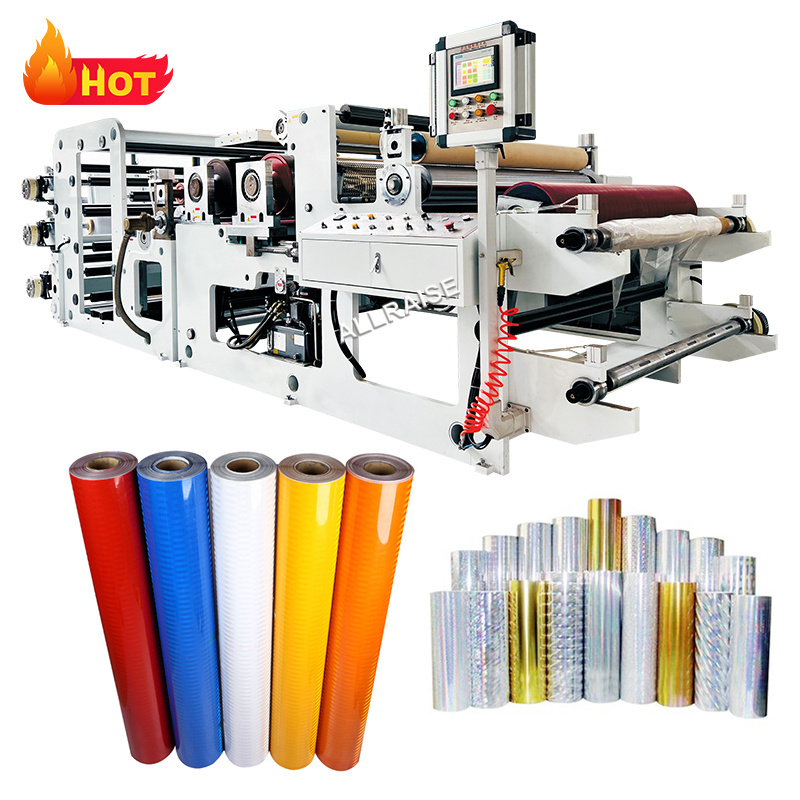

Fully Automatic Laser Reflective Holographic Embossing Machine Hologram Printing PVC Microprism Reflective Film Making Machine
Reflective film making machine
is suitable for PVC, PP,TPU, EVA, CPP PC roll microprisms, full star, cat eye, deep grain local laser series film, imprint thickness of 50 ~ 300um, the working principle is to pre-etched on the metal plate any deep grain local laser image or roller plate heating transfer on the film material. The materials produced by this machine are widely used in synthetic leather, golden scallion film, static non-adhesive glass film, micro Ringer mirror reflective film, Cindo Ryla, shower curtain, crafts, stationery, schoolbag, children's wear, handbag and other new materials fields.
|
Product name
|
Reflective Film Making Machine
|
|
Effective width
|
1200-1800mm
|
|
Maximum rewinding and unwinding diameter
|
600mm
|
|
Retracting and unwinding mechanism
|
double shaft and double working station
|
|
Coil core
|
inner diameter 76mm
|
|
Stamping speed
|
0.2-20m/min
|
|
Maximum mechanical speed
|
200m/min
|
|
Tension control range
|
3-25kgf
|
|
Main drive motor
|
2KW-3.0KW
|
|
Winding drive motor
|
2.2KW*6 class/magnetic powder brake
|
|
Total installed capacity
|
90KW Approximately 60KW in normal operation
|
|
Working power supply
|
AC380V three-phase five wire
|
|
Air source pressure
|
0.7MPa
|
Product Features
|
1.
|
With manual automatic correction device, and left and right limit device
|
|
2.
|
The winding is a magnetic powder brake. The magnetic powder is equipped with an air cooling device. The discharging reel and the magnetic powder brake are driven by gears.
|
|
3.
|
Preheating adopts heat conduction oil heating cycle roller control mode.
|
|
4.
|
Bearings adopt imported NSK or SKF sealed bearings
|
|
5.
|
Roller plate drive using frequency conversion motor system.
|
|
6.
|
Roller rubber roller cover infrared resistant rubber
|
|
7.
|
The cooling roll and traction roll are combined into one traction method.
|
|
8.
|
Traction roller with 45# steel surface hard plating, mirror polishing treatment.
|
