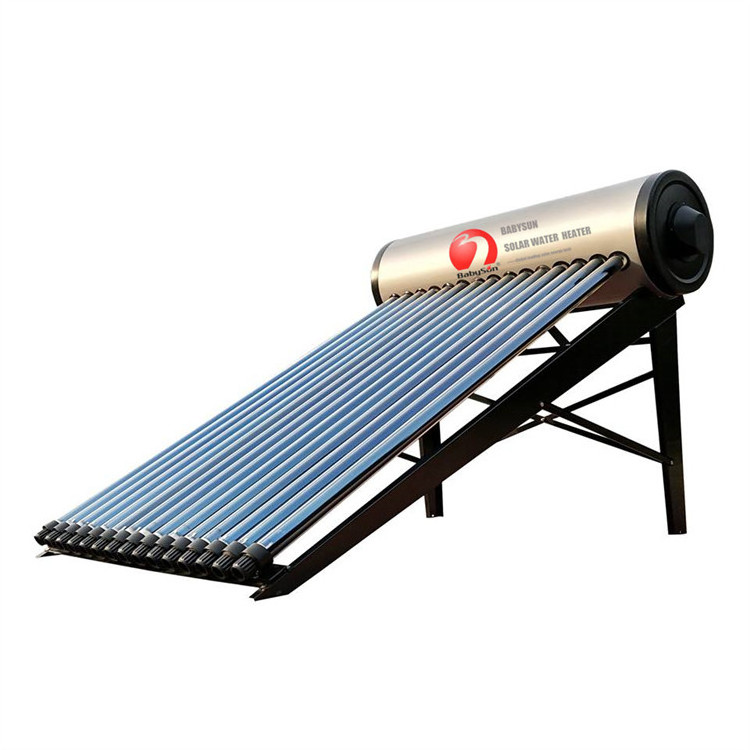

Factory price solar water heater lebanon 100L 200L 300L high pressurized solar water heater kits

Pressure

Water Tank

Inner Tank

Food-grade stainless steel SUS304-2B / SUS316 , 1.2mm, d iameter 360mm /380mm

Outer Tank

Painted steel (Galvanized steel)/ Stainless steel , 0.4mm

D iameter 460mm /480mm

Insulation

High-density polyurethane foam

Heat Pipe Vacuum Tube

High b orosilicate 3.3 glass with three- target ( CU/SS-ALN(H)/SS-ALN(L)/ALN ) coating, 58*1800mm, glass thickness 1.6mm ±0.15mm

TU1 red copper pipe 14MM condenser

Bracket

Shaped strong p ainted steel (galvanized steel)/ stainless steel /aluminium alloy, 15° / 25° / 38° / 45° angle

Inlet & Outlet

Male threaded 1/2" or 3/4"

Anti-freezing

- 40 °C

Working

Pressure

6.0 Bar

Hail Resistance

Φ25 MM

Accessories

Electrical heater, magnesium anode, T/P valve, intelligent controller

Mode l

Heat Pipe Vacuum Tube

Capacity/Liter

Container Loading

Qty/Sets

Qty/Pcs

Size/MM

20GP

40HQ

BS-P -1 0

1 0

Φ58*1800

100

72

174

BS-P -1 2

12

Φ58*1800

120

61

148

BS-P -1 5

15

Φ58*1800

150

50

121

BS-P -1 8

18

Φ58*1800

180

41

100

BS-P - 20

20

Φ58*1800

200

37

91

BS-P - 25

25

Φ58*1800

250

32

77

BS-P - 30

30

Φ58*1800

300

25

62
