- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Nufiber
-
Use:
-
FTTX,FTTH,FTTP
-
Product name:
-
Gigabit SFP Switch 2 SFP Port 4 RJ45 Port
-
Input power:
-
10~47V
-
Operating Tem.:
-
-40°C to 85°C
-
RJ45 Port:
-
4
-
Fiber Port:
-
SFP Slot
-
Installation:
-
Din-Rail mounting, Wall mountin.
-
Dimension:
-
143.5*103.5*46.8mm
-
Material:
-
aluminium alloy
-
Certification:
-
CE
-
Warranty:
-
3 Years
Quick Details
-
Type:
-
Enterprise Switch
-
Model Number:
-
NF524G-SFP
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Nufiber
-
Use:
-
FTTX,FTTH,FTTP
-
Product name:
-
Gigabit SFP Switch 2 SFP Port 4 RJ45 Port
-
Input power:
-
10~47V
-
Operating Tem.:
-
-40°C to 85°C
-
RJ45 Port:
-
4
-
Fiber Port:
-
SFP Slot
-
Installation:
-
Din-Rail mounting, Wall mountin.
-
Dimension:
-
143.5*103.5*46.8mm
-
Material:
-
aluminium alloy
-
Certification:
-
CE
-
Warranty:
-
3 Years

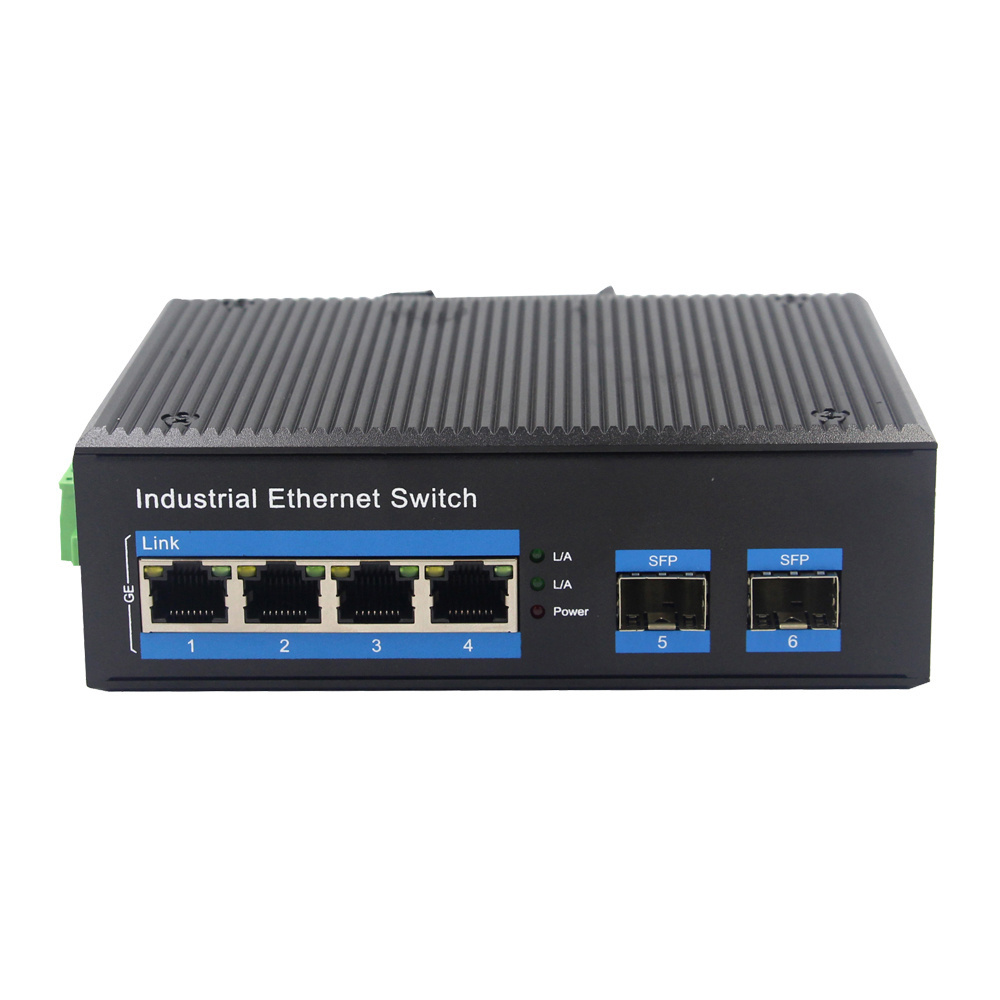

SFP UTP Switches Industrial 2 SFP 4 RJ45 Fiber Ethernet Switch Din Rail IP40
Products Description
NuFiber ’ s NF524G-SFP Industrial Ethernet witch, With 4 Port 10/100/1000 Ethernet ports and 2 port 100 0 Mbps SFP Slot ,for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other devices. Specially designed for harsh outdoor applications. Its 3KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power .
Features
|
4 Port 10/100/1000Mbps RJ45 with Auto Uplink™ , 2 port 1000Mbps SFP Slot |
|
Automatic MAC address learning and aging |
|
Automatically support IGMP (Multicasting) |
|
10/100/1000 Mbps Auto-negotiation , auto-MDI-MDI-X |
|
LED indicators for monitoring power/link/activity |
|
Supports 10/100/1000Mbps-Full/Half-duplex |
|
Supports Wall-mount and DIN-Rail installation for lightning protection |
|
Super lightening protection, IP40 protection |
|
Excellent heat elimination without cooling fan |
| Redundant dual DC power inputs |
|
Redundant Power Inputs |
|
Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City. |
|
Harsh industrial environment or higher requirement |
|
-40℃-85℃ operating temperature range |
|
5-Year Warranty |
Technical Parameter
| Product Name |
4 Port 10/100/1000 Base Industrial Ethernet Switch |
| Product Model |
NF524G-SFP |
| Interface | 4 x 10/100/1000Base-T RJ45 port + 2x 1000Mbps SC Fiber |
| Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Fiber Media |
Multi-mode: 2KM Single-mode: 20/40/60/80KM |
| Performance Specification |
Bandwidth: 20Gbps Packet Buffer Memory:2M Packet Forwarding Rate:1488000pps/port MAC Address Table: 16K |
| Forwarding Mode |
Store-and-Forward |
| Protection | Lightening protection, IP40 protection |
| LED Indicators | Power: PWR; Link; Link/Act |
| Power Supply | Input Power: 2x10~58VDC (Terminal Block) |
Products Show
Packing & Shipping
Ordering Information
| Model | Description |
| NF511G-SC20 |
Industrial 10/100/1000M 1 fiber port + 1 UTP port, SC, dual fiber SM 20km, DIN Rail type, DC10~47V, exclude power adapter |
| NF512G-SC20 |
Industrial 10/100/1000M 1 fiber port + 2 UTP port, SC, dual fiber SM 20km, DIN Rail type, DC10~47V, exclude power adapter |
| NF514G-SC20 |
Industrial 10/100/1000M 1 fiber port + 4 UTP port, SC, dual fiber SM 20km, DIN Rail type, DC10~47V, exclude power adapter |
| NF511G-SFP |
Industrial 10/100/1000M 1 SFP port + 1 RJ45 port, DIN Rail type, DC10~47V, exclude power adapter and SFP module |
| NF512G-SFP |
Industrial 10/100/1000M 1 SFP port + 2 RJ45 port, DIN Rail type, DC10~47V, exclude power adapter and SFP module |
| NF514G-SFP |
Industrial 10/100/1000M 1 SFP port + 4 RJ45 port, DIN Rail type, DC10~47V, exclude power adapter and SFP module |
| NF524G-SFP |
Industrial 10/100/1000M 2 SFP port + 4 RJ45 port, DIN Rail type, DC10~47V, exclude power adapter and SFP module |
| NF518G-SFP |
Industrial 10/100/1000M 1 SFP port + 8 RJ45 port, DIN Rail type, DC10~47V, exclude power adapter and SFP module |
| NF528G-SFP |
Industrial 10/100/1000M 2 SFP port + 8 RJ45 port, DIN Rail type, DC10~47V, exclude power adapter and SFP module |
| NF518GF-SFP |
Industrial 1x1000M SFP port + 8x10/100M RJ45 port, DIN Rail type, DC 10~47V, exclude power adapter and SFP module |
| NF528GF-SFP |
Industrial 2x1000M SFP port + 8x10/100M RJ45 port, DIN Rail type, DC 10~47V, exclude power adapter and SFP module |
Advantages
FAQ
Welcome to send us inquiry.OEM and customization are welcome.
