7.3M low speed 55RPM direct drive motor HVLS Fans with IP66 controller

7.3M low speed 55RPM direct drive motor HVLS Fans with IP66 controller

FOB Reference Price: Get Latest Price

≥1 Sets

US $1600

≥20 Sets

US $1359

≥100 Sets

US $1339

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: huada

Voltage:: 220V/380v

Fan Diameter:: 24 ft/7.3m

Air volume:: 15500 m³/min

Motor:: permanent magnet

Noise:: <38 dB

Blade:: 6 pcs

Speed:: 55rpm

Coverage Area:: 1700 m²

Effective area:: 850 m²

Quick Details

Mounting:: Ceiling Fan

Power:: 1.5KW

Place of Origin:: Fujian, China

Brand Name:: huada

Voltage:: 220V/380v

Fan Diameter:: 24 ft/7.3m

Air volume:: 15500 m³/min

Motor:: permanent magnet

Noise:: <38 dB

Blade:: 6 pcs

Speed:: 55rpm

Coverage Area:: 1700 m²

Effective area:: 850 m²

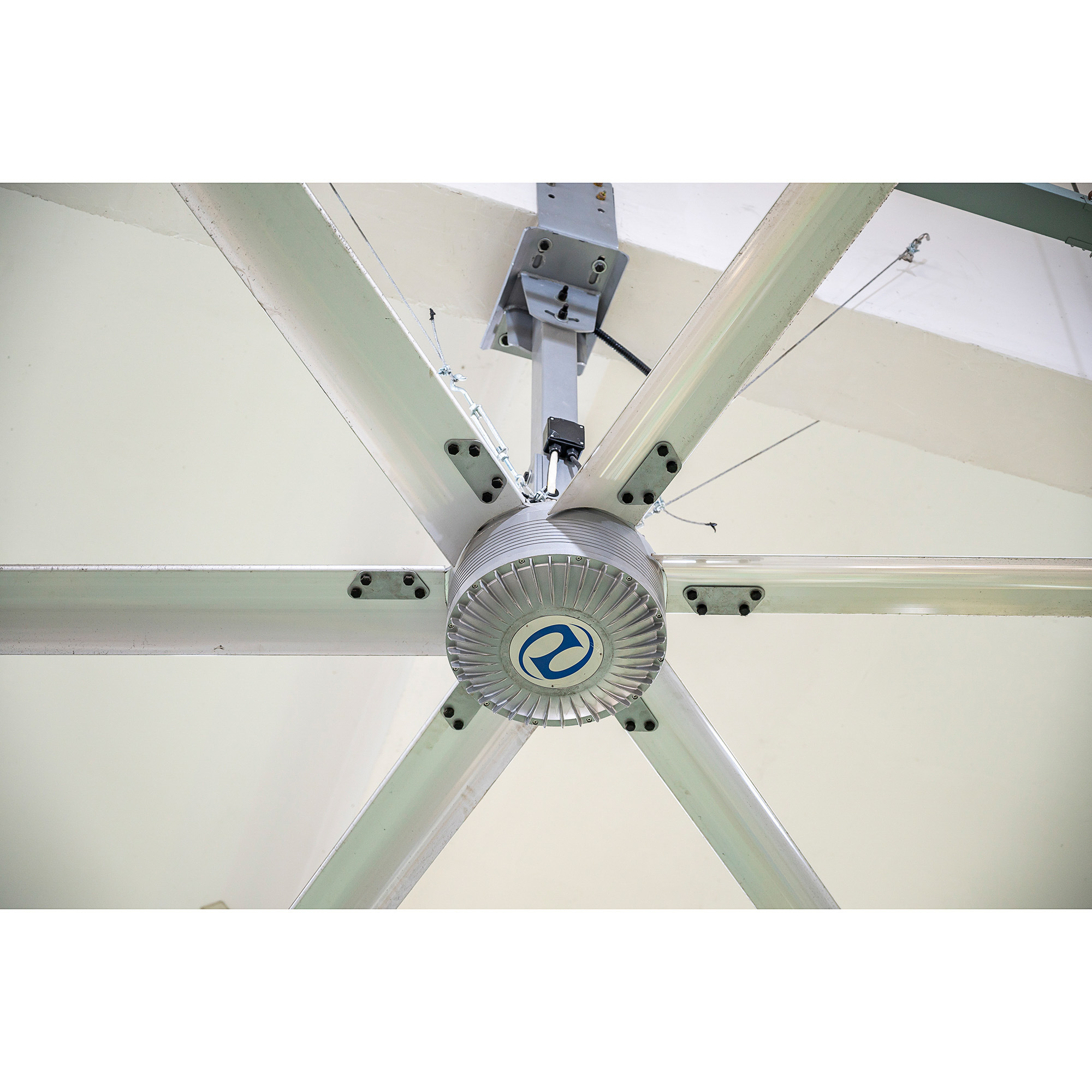

7.3m large industrial ceiling fan

Our HDS series smart permanent magnet large ceiling fan is a new product specially developed for improving the comfort of the working environment. Self-designed variable frequency speed control, high efficiency and energy saving permanent magnet external rotor motor drive. It has the advantage of low noise, small volume, lightweight, compact structure and beautiful appearance.

Application areas:Widely used in industrial plants, logistic ware-housing, waiting room, exhibition hall and so on.

Fan range :3m,3.7m,4.3m,5m,6.1m,6.7m and 7.3m

Name: Direct Drive Motor System

The new self-developed external rotor motor with large torque and permanent magnet synchronization replaces the traditional motor+gearbox reducer, achieving a high degree of integration and improving reliability and transmission efficiency.Aluminium alloy material is adopted in many parts to realize the lightweight design.

Fan Blade

It is made of aluminium and magnesium alloy extruded and stretched, and has the advantages of high strength, good toughness,lightweight, long life and safe operation. The fan blade surface is treated with T5+ bright surface oxidation treatment, which enhances the corrosion and oxidation resistance of the fan blade and can cope with special environmental operations.

Energy saving tail.

Smart control system

It is small size, lightweight, beautiful

appearance.

The system function is simple, 4 buttons easy to operation( start, stop, speed up, slow down).
