Quick Details
-
drive system:
-
tractor pto
-
Max. Chipping Diameter:
-
150mm/ 6''
-
Tractor Required (at the PTO):
-
20-50HP
-
Hydraulic Oil:
-
19 L / 5 gallons of ISO 32 or ISO 46
-
Hydraulic Pump:
-
Belt driven
-
Flywheel Diameter/Thickness:
-
24" x 3/4" thick (61cm x 2.0 cm thick)
-
Flywheel Speed:
-
540RPM
-
Number of Blades:
-
4 pcs
-
In-feed System:
-
Self-contained hydraulic system
-
Quick Hitch Compatible:
-
Yes
Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2.2*2.4*2.3m
-
Weight (KG):
-
374
-
drive system:
-
tractor pto
-
Max. Chipping Diameter:
-
150mm/ 6''
-
Tractor Required (at the PTO):
-
20-50HP
-
Hydraulic Oil:
-
19 L / 5 gallons of ISO 32 or ISO 46
-
Hydraulic Pump:
-
Belt driven
-
Flywheel Diameter/Thickness:
-
24" x 3/4" thick (61cm x 2.0 cm thick)
-
Flywheel Speed:
-
540RPM
-
Number of Blades:
-
4 pcs
-
In-feed System:
-
Self-contained hydraulic system
-
Quick Hitch Compatible:
-
Yes
Product Description

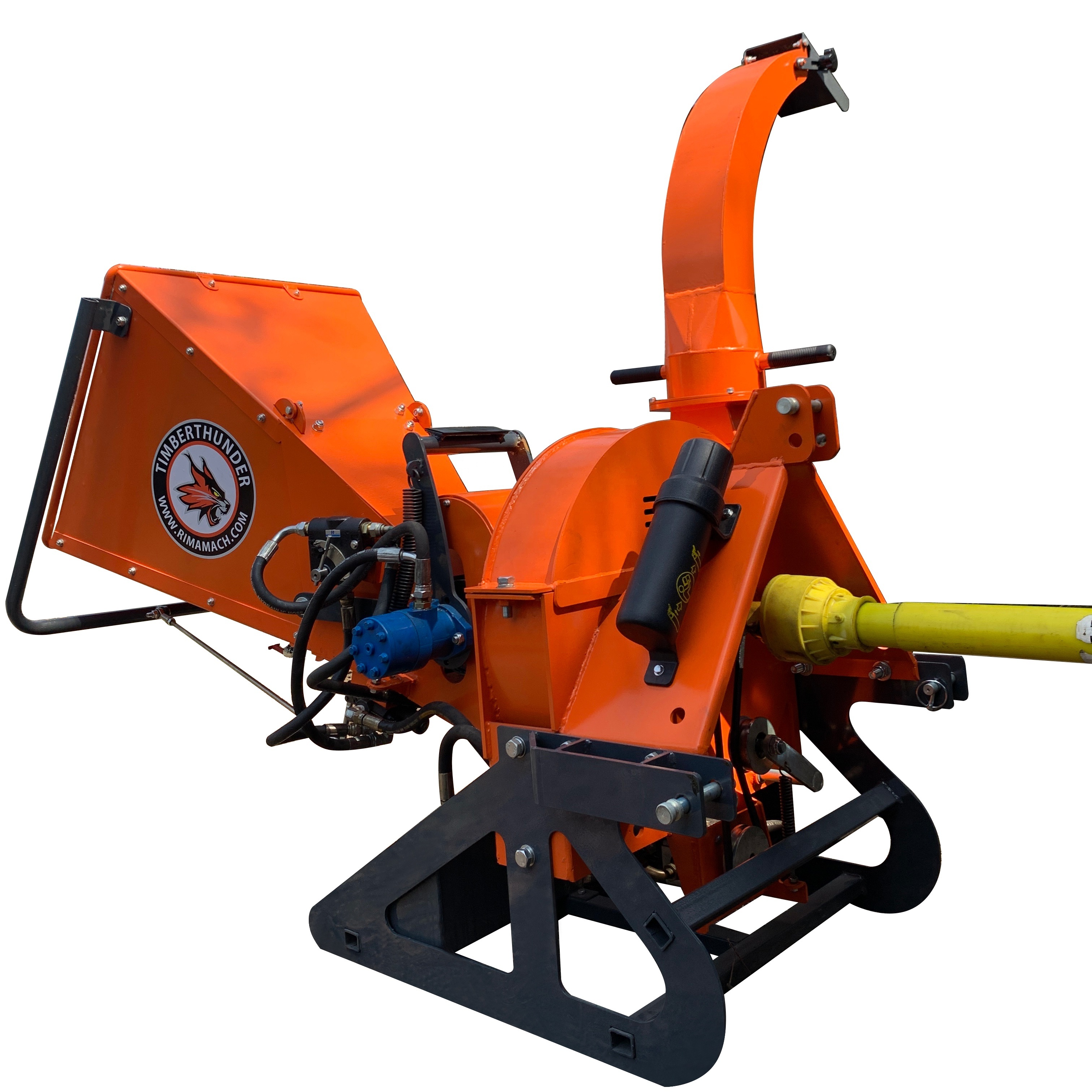

Wood chipper crusher make branch clean up fast and easy.
They quickly turn branches into crisp chips, perfect for pathways, landscaping, and garden mulching. The all steel construction of the wood chippers will provide years of dependability and ease of use.
Specification
|
Model
|
WC68
|
|
Drive System
|
Tractor PTO
|
|
Max. Chipping Diameter
|
150mm/ 6''
|
|
Tractor Required (at the PTO)
|
20-50HP
|
|
Hydraulic Oil
|
19 L / 5 gallons of ISO 32 or ISO 46
|
|
Hydraulic Pump
|
Belt driven
|
|
Flywheel Diameter/Thickness
|
24" x 3/4" thick (61cm x 2.0 cm thick)
|
|
Flywheel Speed
|
540 RPM
|
|
Flywheel Drive System
|
Direct drive
|
|
Flywheel Housing Design
|
Easy To open clamshell
(for easy clean out and blade changes) |
|
Flywheel Housing Thickness
|
5/16" (8mm) Thick
|
|
Flywheel Shaft
|
2" (50mm) Diameter
|
|
Number of Blades
|
4 Reversible blades
|
|
In-feed System
|
Self-contained hydraulic system
|
|
In-feed Drive
|
Forward/Neutral/Reverse with variable speed
(0-75 ft-min) / (23 m/min) |
|
In-feed Roller Size
|
8.25" (21cm) Chisel tooth
|
|
In-feed Opening
|
6" tall x 8" wide (15cm x 20cm)
|
|
In-feed Roller Pressure
|
Adjustable via spring tension
|
|
Quick Hitch Compatible
|
Yes
|
|
Discharge Chute
|
360 Degree swivel
|
|
Packing size
|
1120x870x1120mm
|
|
Weight
|
322/374 kg
|
|
40” Container
|
52pcs
|
Detailed images
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
